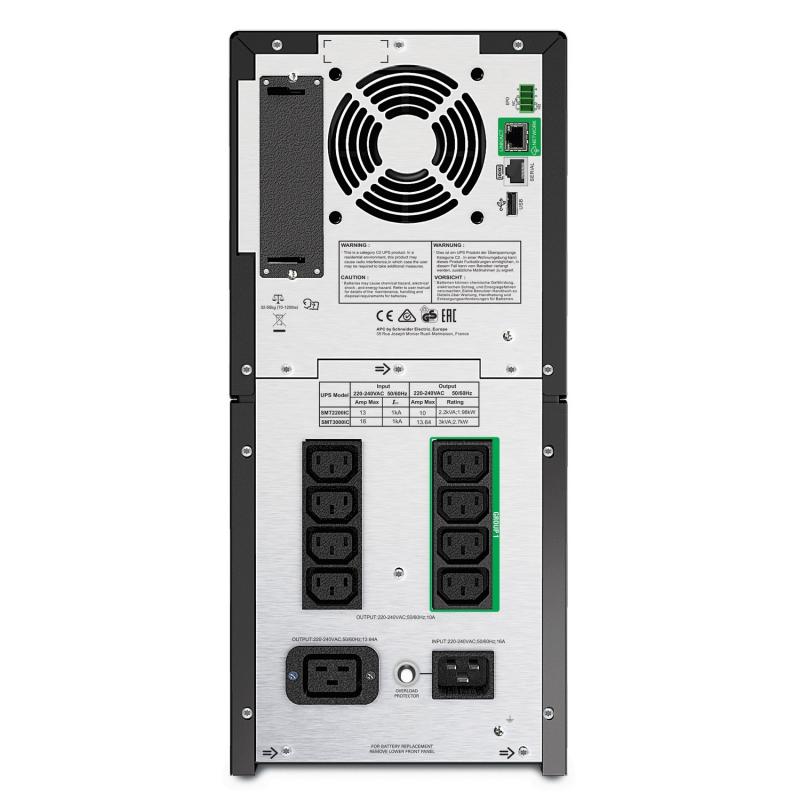

APC Smart-UPS SmartUPS (SMT3000IC)

Find suitable products

APC Smart-UPS SMT3000IC - UPS - AC 220/230/240 V - 2700 Watt - 3000 VA - RS-232, USB - output connectors: 9 - black - with APC SmartConnect

View data sheet
Add to comparison list

Category (Unterbrechungsfreie Stromversorgung): PC Components
Power Supply
OEM: SMT3000IC
EAN: 0731304337331
SKU: apcup000025 (121515)
Manufacturer: APC
Master carton: 0.0000
Type: (Offline) UPS
Color: Black
Customs tariff number: 85044085
UNSPSC: 39121011
eClass: 19-03-04-01
eClass V7: 27-04-06-01
Dimensions (Girth): 750 x 700 x 370 (2890)
Type: (Offline) UPS
Electrical input: Other Electrical input
Mark: IEC
Universal interfaces: USB
Backup time: 4 min - 25 min

Description
Features
Specifications
Product safety

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Audible alarms
Provides notification of changing utility power and UPS power conditions.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
Boost and Trim Automatic Voltage Regulation (AVR)
Eliminates voltage fluctuations as a source of AV signal degradation and component power-supply stress.
Cold-start capable
Provides temporary battery power when the utility power is out.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
High online efficiency
Reduces utlility costs, generates less heat.
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Sequenced network shutdown and reboot
Customize network shutdown and reboot sequence of connected servers and UPSs.
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
SmartConnect
Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
SmartSlot
Customize UPS capabilities with management cards.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

General

Device Type

UPS - external

Colour

Black

Bundled with

APC SmartConnect

Power Device

UPS Technology

Line interactive

Input Voltage

AC 220/230/240 V

Input Voltage Range

AC 160 - 286 V

Input Voltage Range (Adjustable)

AC 151 - 302 V

Frequency Provided

50/60 Hz ± 3Hz

Frequency Required

50/60 Hz ± 3Hz

Input Connectors

1 x power IEC 60320 C20

Power Output Connectors Details

8 x power IEC 60320 C13 ¦ 2 x IEC jumper ¦ 1 x power IEC 60320 C19

Output Voltage

AC 220/230/240 V ± 5% - 50/60 Hz

Power Capacity

2700 Watt / 3000 VA

Output Waveform

Sinewave

Surge Suppression

Yes

Surge Energy Rating

365 Joules

Circuit Protection

Circuit breaker

Battery

Quantity

Technology

Lead Acid

Run Time (Up To)

5.1 min at full load ¦ 17.2 min at half load

Recharge Time

3 hours

Transfer Time

6 ms

Features

Maintenance free, sealed, leak-proof

Networking

Remote Management Interface

RS-232, USB

Expansion / Connectivity

Interfaces

1 x management (RS-232) ¦ 1 x USB ¦ 1 x EPO (emergency power off)

Expansion Slots

1 (total) / 1 (free) x SmartSlot

Miscellaneous

Cables Included

Serial cable - external ¦ USB cable - external

Features

Audible alarm, emergency power off, LCD display, Automatic Voltage Regulation (AVR), cold-start function, automatic self-test, predicitive failure notification, hot-swappable batteries, energy metre

Compliant Standards

CSA, UL 1778, VDE, IEC 62040-2, RoHS, EN 62040-2, EAC, RCM, IEC 62040-1, EN 62040-1

Software / System Requirements

Software Included

APC PowerChute Business Edition

Manufacturer Warranty

Service & Support

Limited warranty - replace or repair - 3 years ¦ Limited warranty - batteries - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

0 - 95%

Sound Emission

45 dBA

Dimensions & Weight

Width

19.7 cm

Depth

54.4 cm

Height

43.5 cm

Weight

52.5 kg

Dimensions & Weight (Shipping)

Shipping Width

38.1 cm

Shipping Depth

76.2 cm

Shipping Height

69.9 cm

Shipping Weight

63.7 kg
