ASUS Monitor OLED PG48UQ (90LM0840-B01970) (90LM0840B01970)

Find suitable products

ASUS ROG Swift OLED PG48UQ - OLED monitor - gaming - 47.53" - 3840 x 2160 4K @ 138 Hz - 450 cd/m² - 135000:1 - HDR10 - 4xHDMI, DisplayPort - speakers

View data sheet
Add to comparison list

Category (TFTs): Displays & Projectors
Flat Screens
OEM: 90LM0840-B01970
EAN: 4711081707080
SKU: 137686 (137686)
Manufacturer: Asus
Master carton: 0.0000
Type: Flat Screen
Color: Black
Customs tariff number: 85285210
UNSPSC: 43211902
eClass: 19-02-01-02
eClass V7: 19-14-03-02
Energy efficiency class: F
Dimensions (Girth): 1230 x 870 x 180 (3330)
Picture diagonal (inch): 46"

Description
Features
Specifications
Product safety

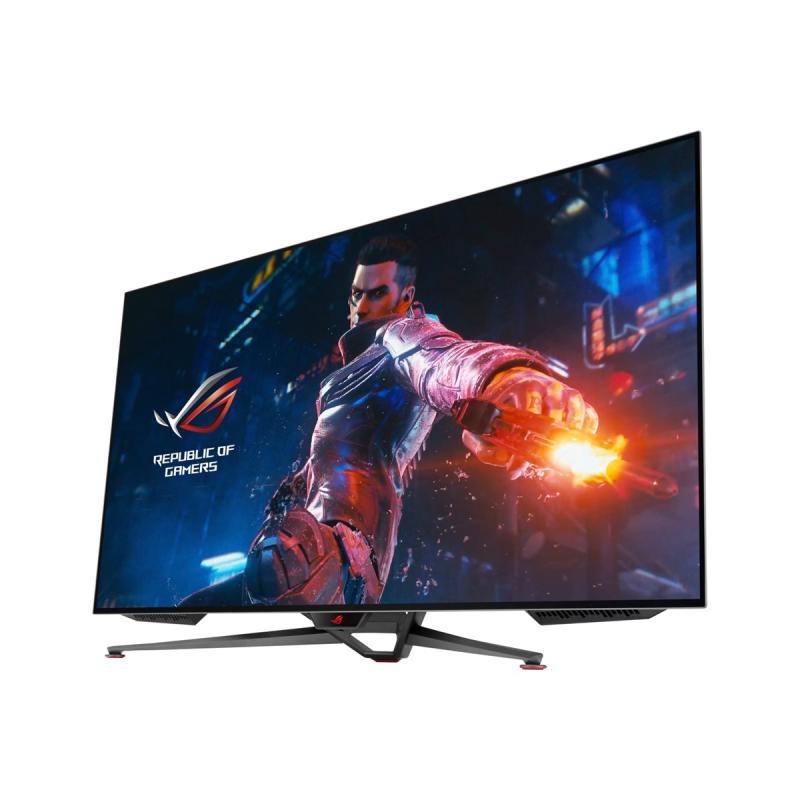

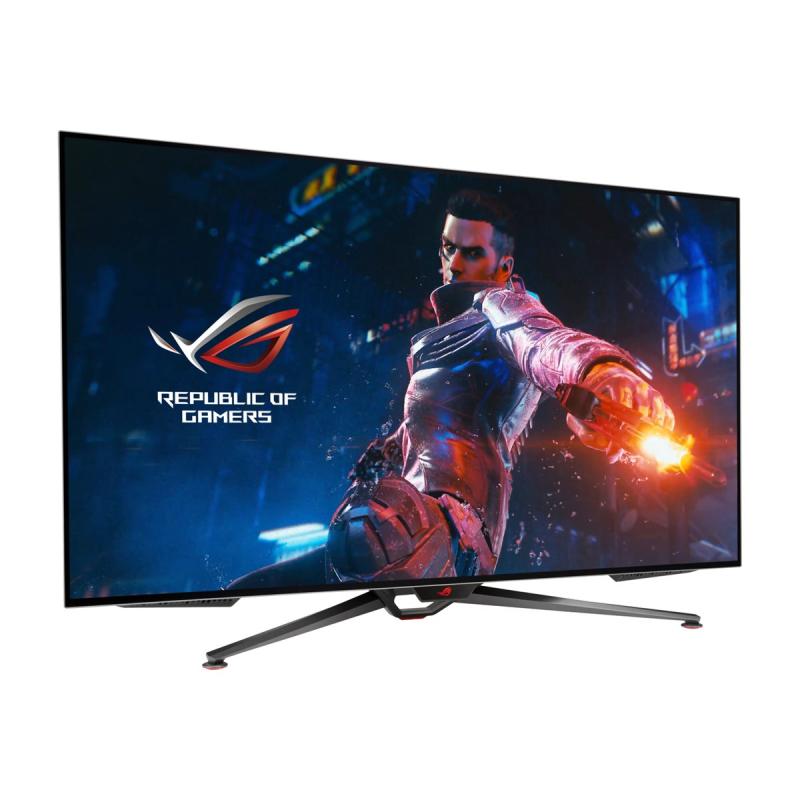

The ROG Swift OLED PG48UQ is a 47.5-inch 4K OLED gaming monitor that features an anti-glare micro-texture coating to reduce reflections to ensure you see more accurate onscreen colors. Its superfast 138 Hz (overclocked) refresh rate and blazing 0.1 ms response time delivers incredibly immersive gaming on a larger scale. Plus 98% DCI-P3 gamut, true 10-bit color and Delta E < 2 ensure true-to-life colors and the darkest-possible black hues.

Detailed visuals and clearly-defined text
ROG Swift OLED gaming monitors feature the OLED panels designed for greater efficiency and brightness. The sub-pixel layout provides extremely detailed visuals and clearly-defined text to upgrade the viewing experience.
Ultra-realistic colors
The PG48UQ gaming monitor features true 10-bit color depth and a cinema-grade 98% DCI-P3 gamut to deliver unparalleled realism. Each monitor is pre-calibrated to Delta E < 2 to ensure the very best color reproduction on its brilliant OLED panel.
Deepest blacks and high perceptual brightness
The OLED technology in the PG48UQ produces the deepest blacks and provides vivid colors at any brightness level. In-game details are extremely crisp and can be picked out in even the darkest scenes.
Blazingly fast response time for smooth visuals
With an ultra-rapid 0.1 ms response time, the PG48UQ smoothly displays fast-paced action scenes and ensures low-latency gameplay. Viewers also enjoy subtle benefits such as blur-free text scrolling.
Intelligent cooling design for 8% lower temperatures

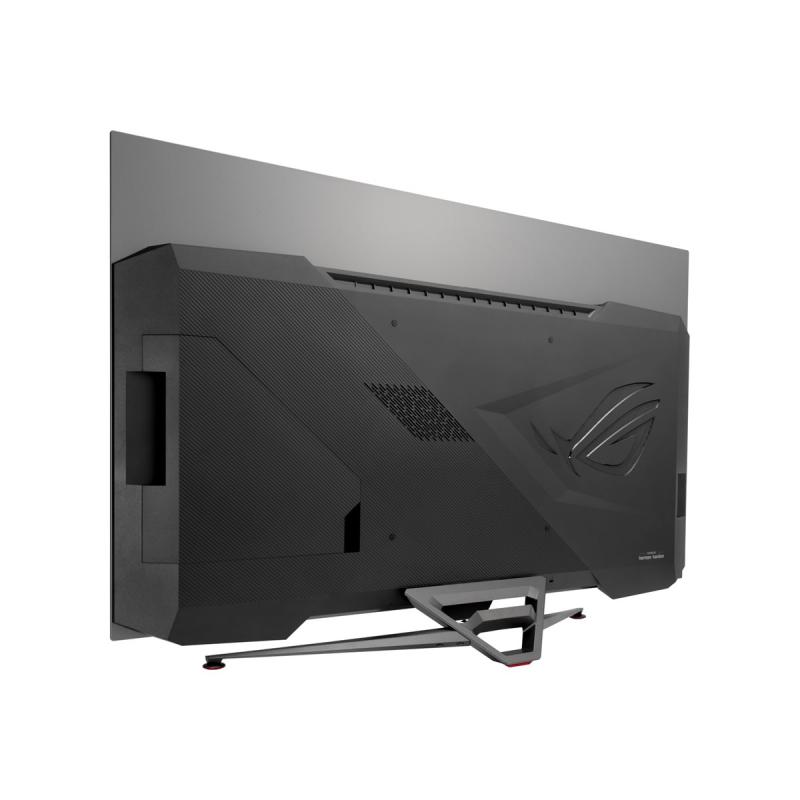

The custom heatsink found in the PG48UQ offers more surface area for heat exchange to provide more efficient cooling performance, even in long gaming stints. The lower temperature enables better OLED performance with lower likelihood of image sticking. This robust fanless system operates silently to minimize distractions.
Less glare, fewer distractions
A special matte micro-texture coating on the surface of the display significantly reduces glare. This allows the PG48UQ to display more accurate colors free of distracting screen glare.
Certified NVIDIA G-Sync compatible
The PG48UQ delivers a seamless, tear-free gaming experience by enabling variable refresh rate technology as a default on NVIDIA GeForce graphics cards.
Rich connectivity

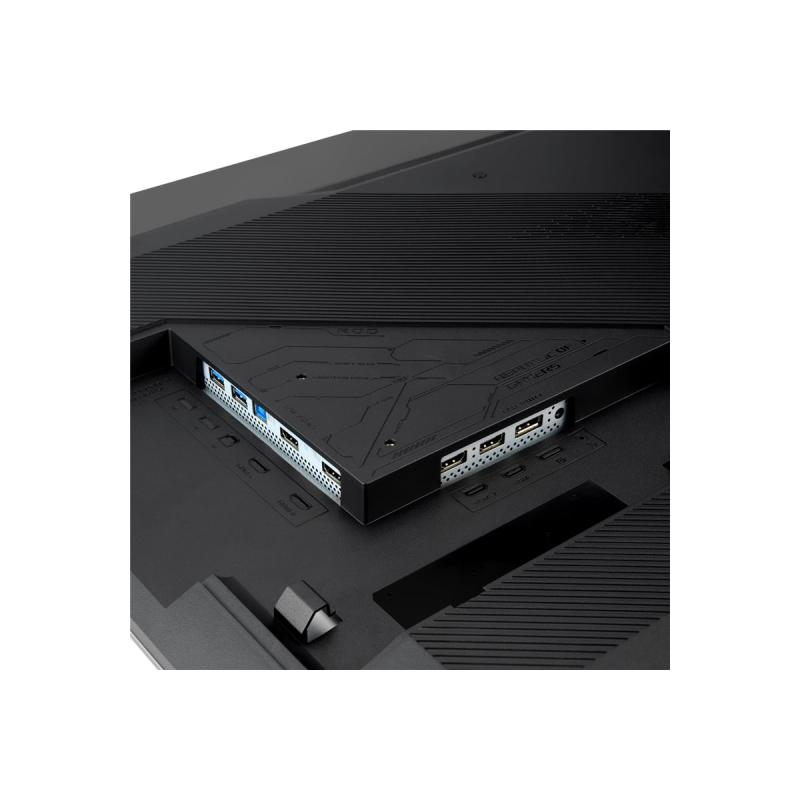

The PG48UQ has an array of connectivity options that cater to any gaming or streaming setup. It includes HDMI, as well as DisplayPort 1.4 (DSC) at the rear to connect to various devices. Two USB ports and a tripod socket on top of the monitor makes it easy to mount a camera. Lastly, there's even a headphone jack at the bottom of the display.
Uniform brightness
When activated, the ROG-exclusive uniform brightness function setting within the OSD menu decreases peak brightness to keep levels consistent for better viewing, even when changing the size of bright white windows. It also makes marathon gaming sessions much more comfortable on the eyes.
Aspect control
For gamers that prefer playing on smaller monitors, the PG48UQ supports a range of aspect ratios to cast a 24", 27", or 34" image that can be shifted vertically to aid the viewing experience. See it all, and set the pace with the 0.1 ms response time of OLED.

General

Display Type

OLED monitor / OLED

Energy Class

Class F

Energy Class (HDR)

Class G

Diagonal Size

47.53"

Adaptive-Sync Technology

NVIDIA G-SYNC Compatible

Built-in Devices

USB 3.2 Gen 1 hub, woofer

Aspect Ratio

16:9

Native Resolution

4K 3840 x 2160 at 138 Hz

Pixel Pitch

0.27405 mm

Brightness

450 cd/m²

Contrast Ratio

135000:1 / 1500000:1 (dynamic)

HDR Format

HDR10

Colour Support

1.074 billion colours (10-bit)

Colour Gamut

133% sRGB, 98% DCI-P3

Gaming

Yes

Horizontal Viewing Angle

178

Vertical Viewing Angle

178

Features

HDCP, Trace Free Technology, ASUS GamePlus, Low Blue Light Mode, Flicker Free technology, ASUS GameVisual Technology, Delta E<2 calibration, Shadow Boost technology, tripod socket

Dimensions (WxDxH)

106.8 cm x 26.6 cm x 68.6 cm - with stand

Weight

16.2 kg

Audio

Type

Speakers - stereo

Output Power / Channel

10 Watt

Connectivity

Interfaces

DisplayPort ¦ 4 x HDMI ¦ Headphones

Mechanical

Display Position Adjustments

Tilt

VESA Mounting Interface

300 x 300 mm

Miscellaneous

Features

Security lock slot (cable lock sold separately)

Included Accessories

ROG pouch

Cables Included

1 x DisplayPort cable ¦ 1 x USB cable ¦ 1 x HDMI cable

Compliant Standards

TUV Rheinland Low Blue Light (Hardware Solution)

Security Slot Type

Kensington security slot

Power

Input Voltage

AC 100-240 V (50/60 Hz)

Power Consumption SDR (On mode)

59 kWh/1000h

Power Consumption HDR (On mode)

66 kWh/1000h

Power Consumption (Typical)

300 Watt

Power Consumption Stand by

0.5 Watt

Power Consumption (Off Mode)

0.3 Watt

Dimensions & Weight

Dimensions & Weight Details

Without stand - width: 106.8 cm - depth: 4 cm - height: 61.2 cm - weight: 15 kg

Dimensions & Weight (Shipping)

Shipping Width

123 cm

Shipping Depth

18 cm

Shipping Height

88 cm

Shipping Weight

22.7 kg

Manufacturer Warranty

Service & Support

Limited warranty - 2 years

Address

Name

Asus

info@asus.com

Website

https://www.asus.com/de/

Street

Harkortstraße 21-23

Postcode

40880

City

Ratingen

Country
