General
Product Type

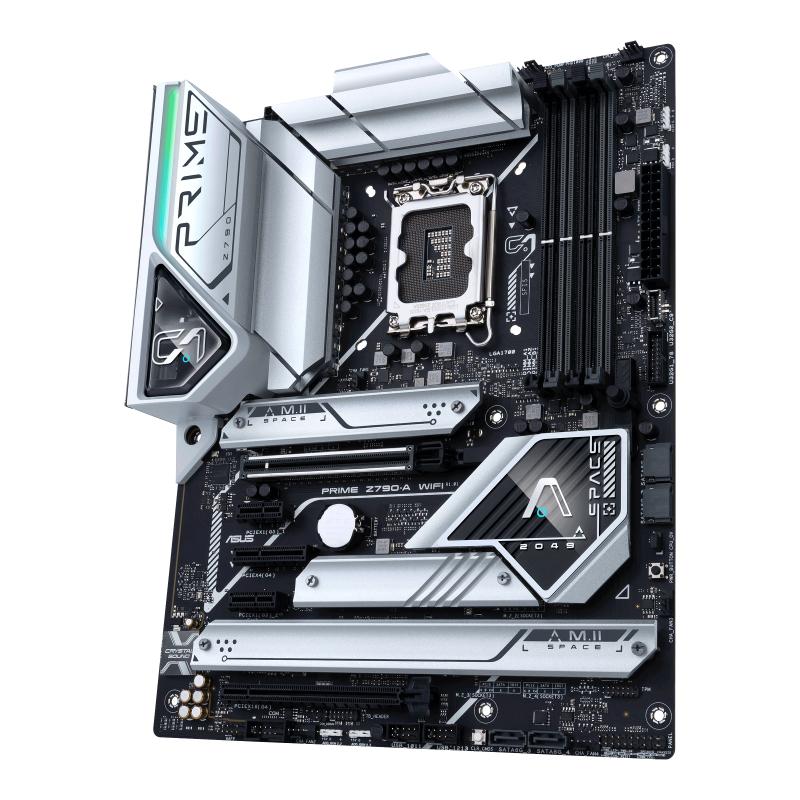

Motherboard - ATX
Processor Socket
LGA1700 Socket
Compatible Processors
(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Bus Clock
5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz
Supported RAM Integrity Check
Non-ECC, on-die ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
Audio Codec
Realtek ALCS1220A
Compliant Standards
High Definition Audio, DTS:X Ultra
LAN
Network Interfaces
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3
Expansion / Connectivity
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 4.0 x4 ¦ 2 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Interfaces
1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 2 ¦ 4 x USB 3.2 Gen 1 ¦ 2 x aerial ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet)
Internal Interfaces
1 x USB-C 3.2 Gen 2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x SPI - header ¦ 1 x Thunderbolt - header
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors
Features
BIOS Features
UEFI BIOS, ASUS EZ Flash 3, MemTest86
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
Jack retasking, ASUS Q-Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Q-Connector, audio jack detect technology, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), Clear CMOS Button, ASUS Stainless Steel Back I/O, LANGuard, Dr.MOS MOSFET, overvoltage protection, ASUS SafeSlot, ASUS 5X Protection III, M.2 heatsink, ASUS ProCool, Water Pump Header, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, 16+1 Phase Power Design, M.2 Q-Latch, PCIe Slot Q-Release, CPU Socket lever protector, VRM heatsink design, ASUS Enhanced Memory Profile (AEMP) II, 60A Power Stage
Miscellaneous
Included Accessories
Q-Connector, ASUS Wi-Fi moving aerial, 2 x M.2 rubber package, M.2 screw package
Cables Included
2 x Serial ATA cable
Software Included
ASUS CPU-Z, ASUS AI Suite III, PC Cleaner, WinRAR, ASUS AURA Creator, MyAsus, Armoury Crate, ASUS Fan Xpert 4, Norton 360 Deluxe (60 days trial)
Compliant Standards
VCCI Class B ITE, JATE, WEEE, FCC Part 15 Class B, DisplayPort 1.4, EU RoHS, EU REACH
Manufacturer Warranty
Service & Support
Limited warranty - 1 year
