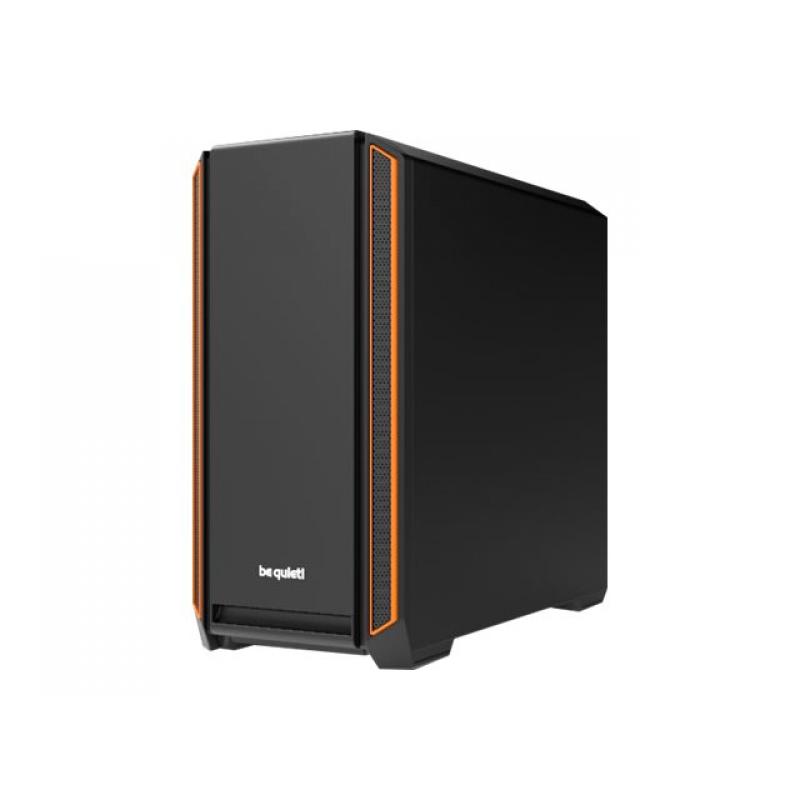

be quiet! Silent Base 601 delivers the perfect combination of maximum silence and an excellent usability for remarkably quiet configurations.
- Minimize noise and maximize air stream
The air inlets on the front cater for maximum silence with a constant amount of air permeability. The specially designed vents reroute the inflowing air twice to reduce airborne noise. - Extra thick insulation for maximum stability and silence
The front, top and sides are equipped with extra thick dampening mats, resulting in maximum stability and superb noise dampening capabilities. The decoupled PSU bracket and HDD cages also minimize vibrations. - Whisper-quiet operation
Two pre-installed fans with airflow-optimized fan blades ensure a perfect airflow and solid cooling. The integrated 3-step fan controller caters for up to three fans. - Neat interior

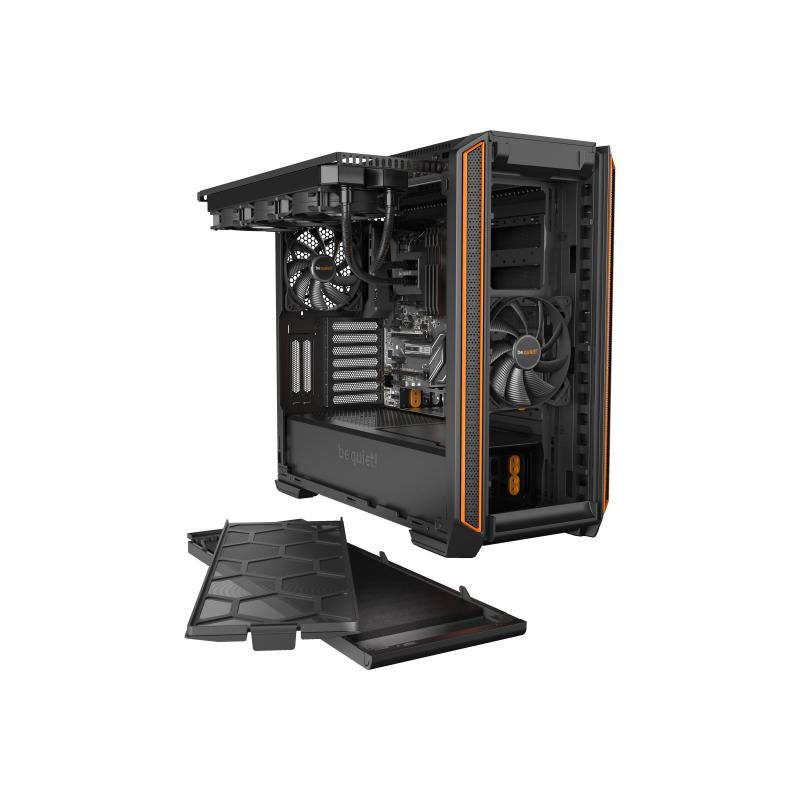

The PSU shroud perfectly covers the cables, PSU and contains a double HDD cage. The cover plates are separately detachable to install a fan on the top.
General
Max Mainboard Size
Extended ATX
Supported Motherboards
ATX, microATX, Mini-ATX, Extended ATX
Specification Compliance
ATX / PS/2
Product Material
Steel, ABS plastic
Cooling System
Front: 140 x 140 x 25 mm fan x 1 / 1000 rpm / 61.2 cfm / 18.8 dBA / Pure Wing 2 ¦ Rear: 140 x 140 x 25 mm fan x 1 / 1000 rpm / 61.2 cfm / 18.8 dBA / Pure Wing 2 ¦ Front: 120/140 mm fan mount x 2 ¦ Top: 120/140 mm fan mount x 3
CPU Cooler Max Height
185 mm
Video Card Max Length
449 mm
Power Supply Max Length
288 mm
System Cabinet Features
Front dust filter, bottom dust filter, supports 120/140/240/280/360 mm radiator in front panel, supports 120/240/360 mm radiator in top, supports 120/140 mm radiator in top
Expansion / Connectivity
Expansion Bays
6 (total) / 6 (free) x internal - 2.5" ¦ 3 (total) / 3 (free) x internal - 3.5"
Interfaces
2 x USB 3.0 ¦ 1 x USB 2.0 ¦ 1 x headphones - mini-jack ¦ 1 x microphone - mini-jack
Miscellaneous
Power
Power Device
No power supply
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
