be quiet! Straight Power 11 750W - Power supply (internal) - ATX12V 2.4/ EPS12V 2.92 - 80 PLUS Gold - AC 100-240 V - 750 Watt - active PFC - black

Qty:

Category (Stromversorgung)
PC Components
Power Supply
OEM
BN283
EAN
4260052185780
SKU
beqac000012 (118507)
Manufacturer
be quiet!
Type
Power Supply
Color
Gold
Customs tariff number
85044030
UNSPSC
39121004
eClass
19-03-03-02
eClass V7
19-05-10-01
Type
Power Supply
Electrical input
Other Electrical input
Mark
80 PLUS
Universal interfaces
PS/2

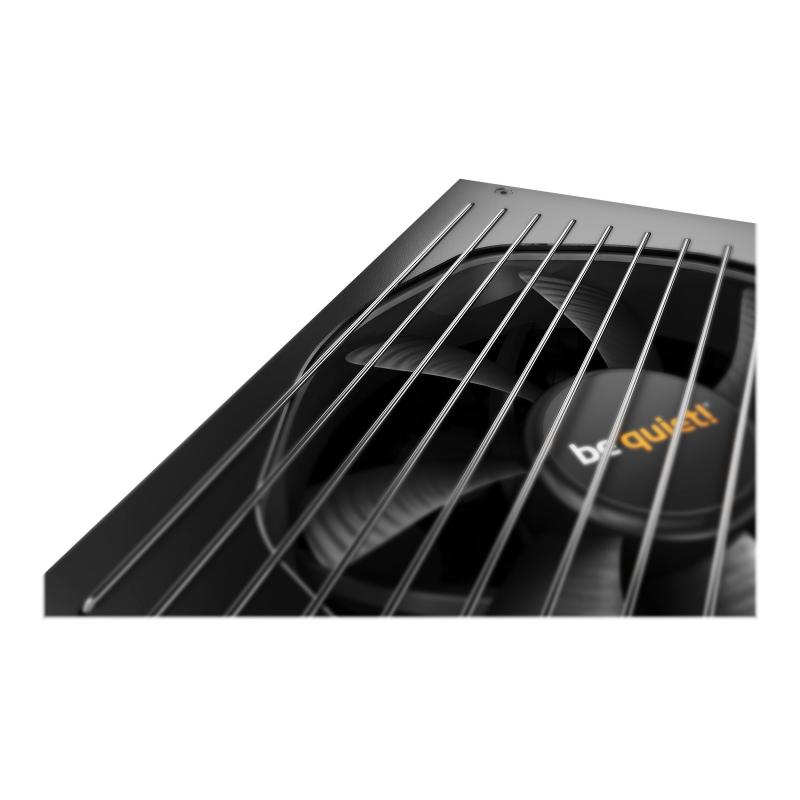

The powerful fan delivers impressive airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal power consumption.

  • Higher cooling performance
    The fan inlet of the Straight Power 11 750W is funnel shaped. It causes an increased throughput of air which benefits to a higher cooling performance.
  • Pushing the longevity of components to a maximum

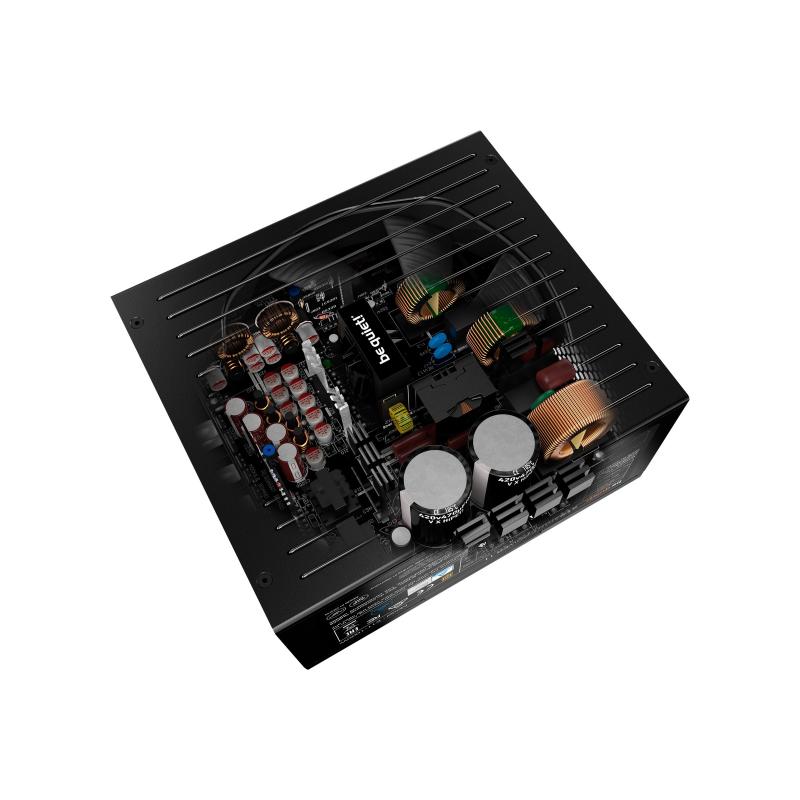

    An absolute innovation: the Straight Power 11 750W is wire free on the DC side inside the PSU body. This results in improved cooling airflow and less signal disturbance, simply because of a lack of wiring, and ultimately pushes the lifetimes of the components to a maximum.
  • Great convenience and compatibility

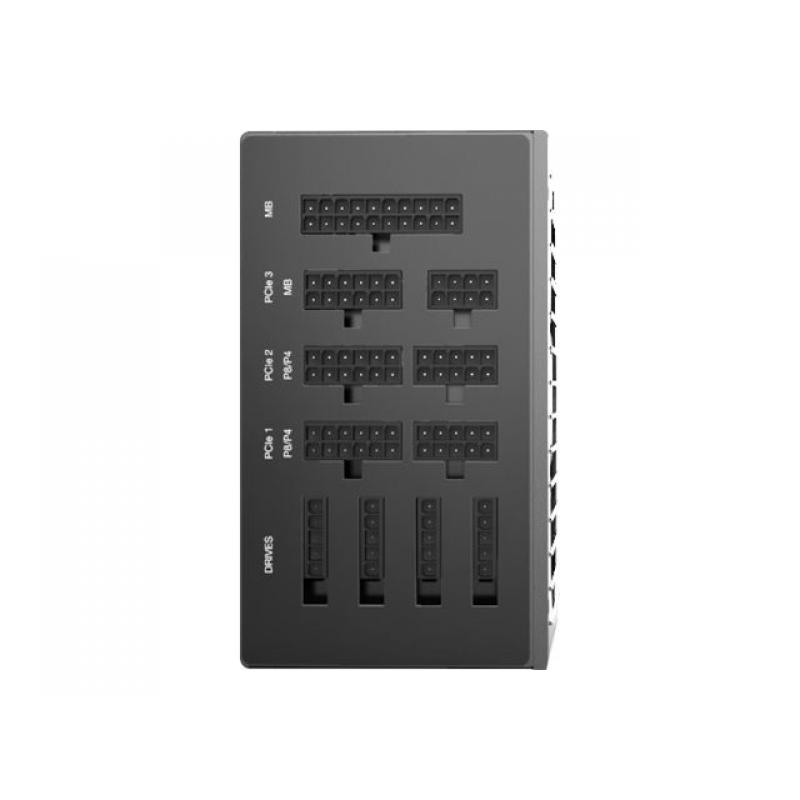

    Thanks to the fully modular cable management, cables that serve no purpose in the system are left out. For this reason systems always appear very tidy. At the same time installation is performed much more conveniently. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures prevail inside the case.

General
Device Type
Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance
ATX12V 2.4/ EPS12V 2.92
PSU Form Factor
ATX
Colour
Black
Power Device
Input Voltage
AC 100-240 V
Frequency Required
50 - 60 Hz
Power Output Connectors Details
1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 4 PIN internal power ¦ 11 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector
Output Voltage
+3.3, +5, ±12 V
Power Capacity
750 Watt
Output Current
+3.3V - 25 A ¦ +5V - 25 A ¦ +12V1 - 20 A ¦ +12V2 - 20 A ¦ +12V3 - 24 A ¦ +12V4 - 24 A ¦ -12V - 0.5 A ¦ +5VSB - 3 A
Efficiency
93%
80 PLUS Certification
80 PLUS Gold
Miscellaneous
Included Accessories
Screws, cable ties
Cables Included
Power cable - external - 1.5 m
MTBF
100,000 hours
Cooling System
135 mm fan
Features
Over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, Multi-GPU Technologies Supported, 4 x 12V rail, thermal protection, DC-DC technology, fluid dynamic bearing cooling fan, Synchronous Rectifier (SR) technology
Compliant Standards
BSMI, CB, FCC, cTUVus, ERP, EAC, RCM, TUV Rheinland, CU
Environmental Standards
ENERGY STAR
Yes
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Max Operating Temperature
40 °C
Sound Emission
8.4 dBA
Dimensions & Weight
Width
15 cm
Depth
17 cm
Height
8.6 cm
Weight
3.04 kg
Dimensions & Weight (Shipping)
Shipping Width
24.8 cm
Shipping Depth
32.8 cm
Shipping Height
10.2 cm
Shipping Weight
3.34 kg
