be quiet! Straight Power 11 1200W - Power supply (internal) - ATX12V 2.51/ EPS12V 2.92 - 80 PLUS Platinum - AC 100-240 V - 1200 Watt - active PFC

Qty:

Category (Stromversorgung)
PC Components
Power Supply
OEM
BN310
EAN
4260052187418
SKU
beqac000020 (118510)
Manufacturer
be quiet!
Type
Power Supply
Color
Black
Customs tariff number
85044030
UNSPSC
39121004
eClass
19-03-03-02
eClass V7
19-05-10-01
Type
Power Supply
Electrical input
Other Electrical input
Mark
80 PLUS

be quiet! Straight Power 11 Platinum 1200W raises the bar for systems that demand virtually inaudible operation and outstanding efficiency.

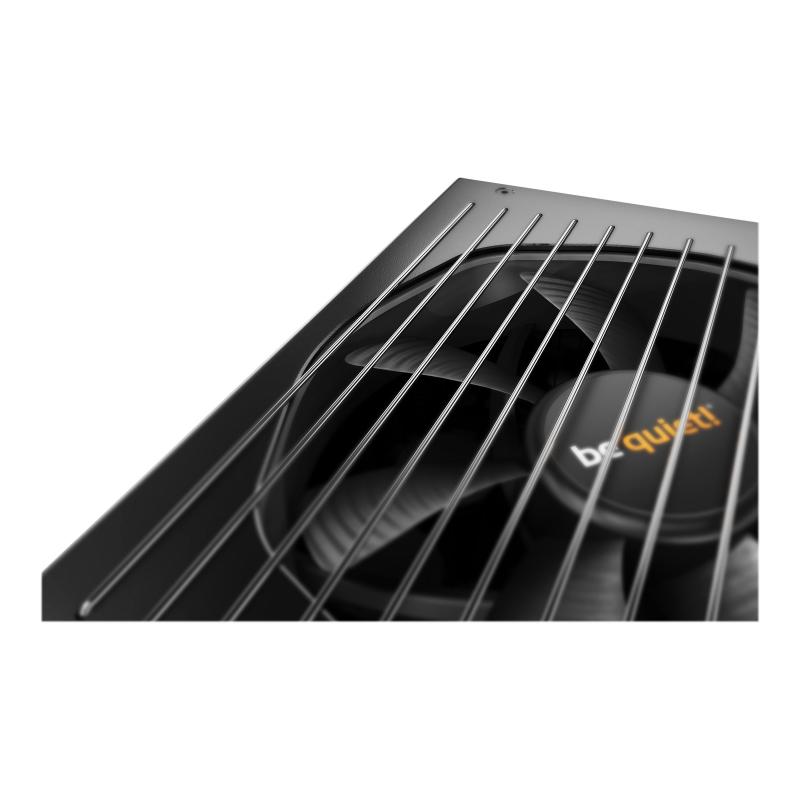

  • Silent Wings 3 fan provides virtually inaudible operation
    The high-end Silent Wings 3 fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal power consumption.
  • Funnel-shaped fan opening for higher cooling performance
    The fan inlet of the Straight Power 11 Platinum 1200W is funnel-shaped. It causes an increased throughput of air which benefits to a higher cooling performance.

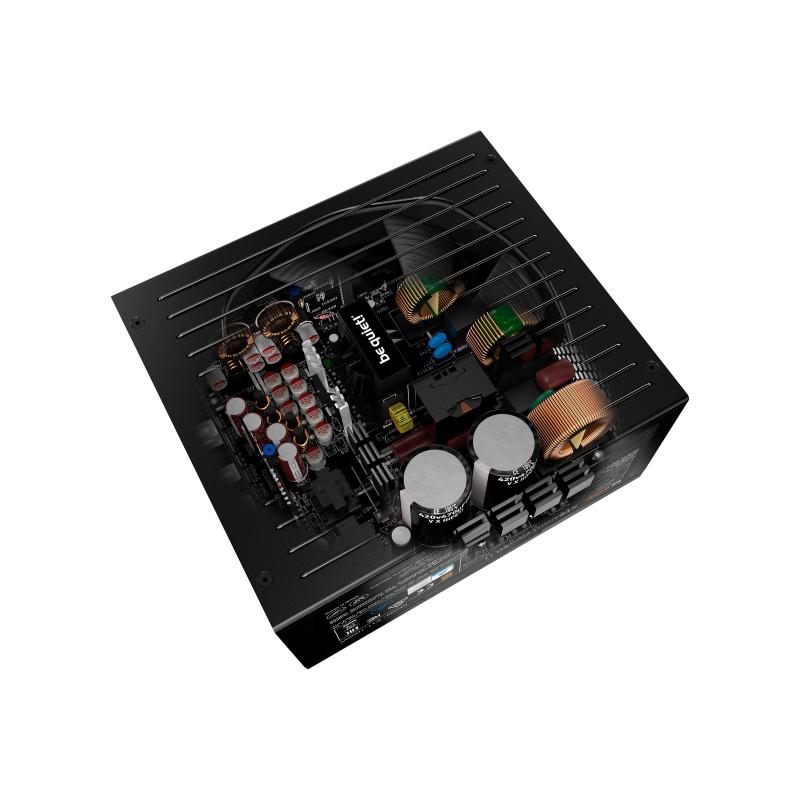

  • Wire-free design pushing the longevity of components to a maximum
    The Straight Power 11 Platinum 1200W is wire-free on the DC side inside the PSU body. This results in improved cooling airflow and less signal disturbance, simply because of a lack of wiring, and ultimately pushes the lifetimes of the components to a maximum.
  • Rock-steady signal stability and efficiency
    Using an advanced full bridge, LLC and Synchronous Rectifier (SR) technology this power supply provides unmatched signal stability and unbeatable power efficiency. The DC-to-DC conversion for tight voltage regulation, even under heavy cross-loading conditions ensures reliable operation for the next generation of processors and graphics cards.

General
Device Type
Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance
ATX12V 2.51/ EPS12V 2.92
PSU Form Factor
ATX
Power Device
Input Voltage
AC 100-240 V
Frequency Required
50 - 60 Hz
Power Output Connectors Details
1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 6 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 4 PIN internal power ¦ 11 x 15 pin Serial ATA power ¦ 1 x power 8 pin +12V
Output Voltage
+3.3, +5, ±12 V
Power Capacity
1200 Watt
Output Current
+3.3V - 25 A ¦ +5V - 25 A ¦ +12V1 - 24 A ¦ +12V2 - 24 A ¦ +12V3 - 38 A ¦ +12V4 - 38 A ¦ -12V - 0.5 A ¦ +5VSB - 3 A
Efficiency
93.9%
Power Factor (PF)
0.99
Modular Cable Management
Yes
80 PLUS Certification
80 PLUS Platinum
Miscellaneous
MTBF
100,000 hours
Cooling System
135 mm fan
Features
Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, Multi-GPU Technologies Supported, 4 x 12V rail, DC-DC technology, Synchronous Rectifier (SR) technology
Compliant Standards
CCC, FCC, RoHS, cTUVus, ERP, EAC, NMB-3 Class B, CAN ICES-3 Class B, TUV Rheinland
Environmental Standards
ENERGY STAR
Yes
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Sound Emission
9.4 dBA
Dimensions & Weight
Width
15 cm
Depth
17 cm
Height
8.6 cm
