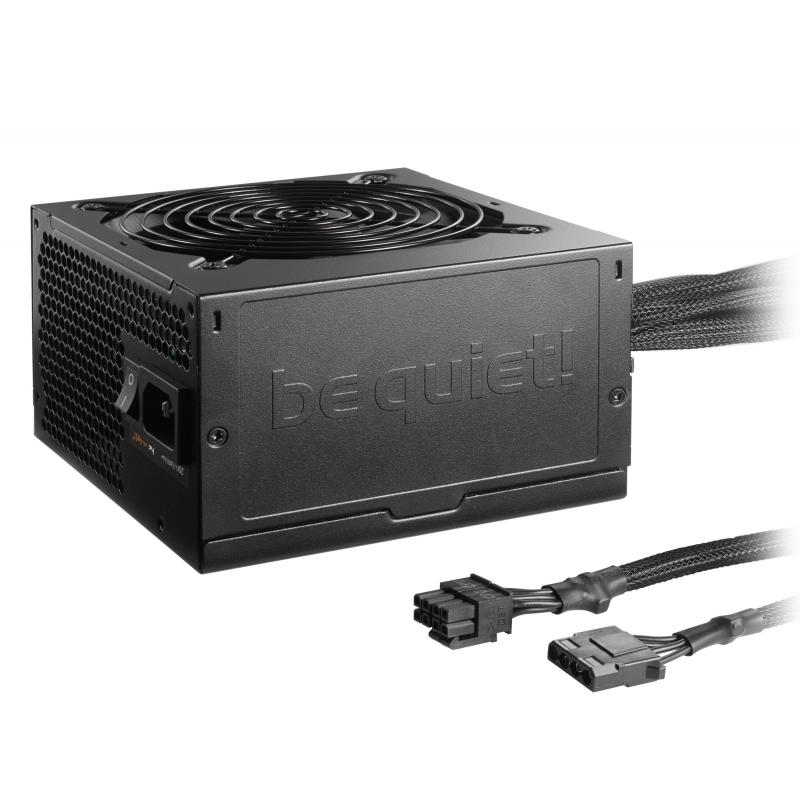

be quiet! System Power B9 600W, bulk (BN209)
be quiet! System Power B9 600W, bulk (BN209)
be quiet! System Power B9 600W, bulk (BN209)
be quiet! System Power B9 600W, bulk (BN209)

be quiet! System Power B9 600W, bulk (BN209)

be quiet! System Power B9 600W bulk - Power supply (internal) - ATX12V 2.4/ EPS12V 2.92 - 80 PLUS Bronze - AC 200-240 V - 600 Watt - active PFC - black

Qty:

Category (Stromversorgung)
PC Components
Power Supply
OEM
BN209
EAN
4260052186015
SKU
beqac000046 (118526)
Manufacturer
be quiet!
Type
Power Supply
Color
Black
Customs tariff number
84145915
UNSPSC
39121004
eClass
19-03-03-02
eClass V7
19-05-10-01
Type
Power Supply
Electrical input
Other Electrical input
Mark
80 PLUS
Universal interfaces
PS/2

be quiet! System Power B9 is specially designed to suit the needs of price-conscious PC builders.

  • Cost effective and efficient handling
    System Power B9 was designed to meet the needs of system integrators. The PSU is very cost-efficient and ensures quick and easy handling to streamline the production of pre-configured PCs.
  • Very quiet operation
    System Power B9 is equipped with a temperature-controlled fan. This ensures its operation produces the low noise that be quiet! is famous for.
  • A complete range of safety features
    Top component protection with a full suite of safety functions provide the ultimate in secure operation.

General
Device Type
Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance
ATX12V 2.4/ EPS12V 2.92
PSU Form Factor
ATX
Colour
Black
Power Device
Input Voltage
AC 200-240 V
Frequency Required
50 Hz
Power Output Connectors Details
1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 2 x 4 PIN internal power ¦ 6 x 15 pin Serial ATA power
Output Voltage
+3.3, +5, ±12 V
Power Capacity
600 Watt
Output Current
+3.3V - 24 A ¦ +5V - 15 A ¦ +12V1 - 28 A ¦ +12V2 - 22 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A
Efficiency
87% at 20% Load, 86% at 100% Load, 89% at 50% Load
Power Factor (PF)
0.95
80 PLUS Certification
80 PLUS Bronze
Miscellaneous
Cables Included
Power cable 1.5 m
MTBF
100,000 hours
Cooling System
120 mm fan
Features
Sleeved cables, overheat protection, over current protection, over voltage protection, overload protection, undervoltage protection, dual 12V rails, short-circuit protection, temperature controlled fan, DC-DC technology, sleeve bearing cooling fan
Compliant Standards
TUV, CB, RoHS, WEEE, ERP, RCM, CU
Environmental Standards
ENERGY STAR
Yes
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Max Operating Temperature
40 °C
Sound Emission
31.2 dBA
Dimensions & Weight
Width
15 cm
Depth
14 cm
Height
8.6 cm
Weight
1.98 kg
