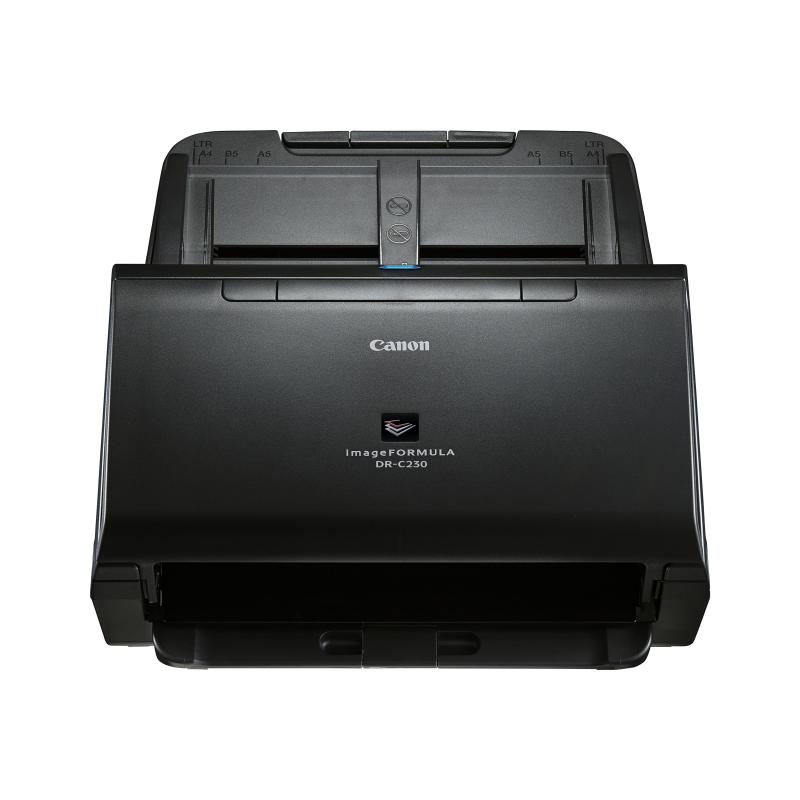

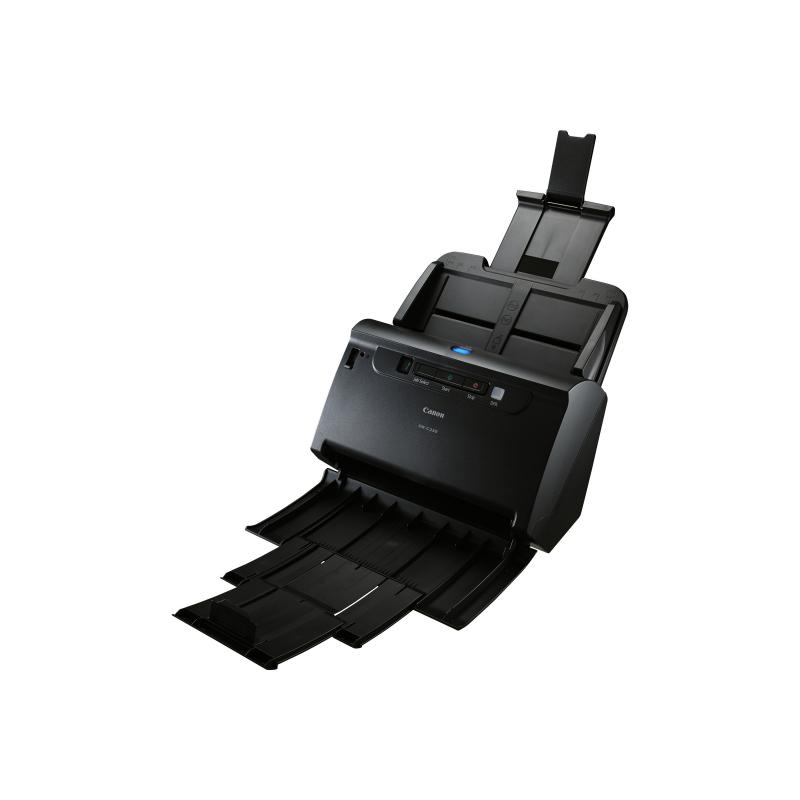

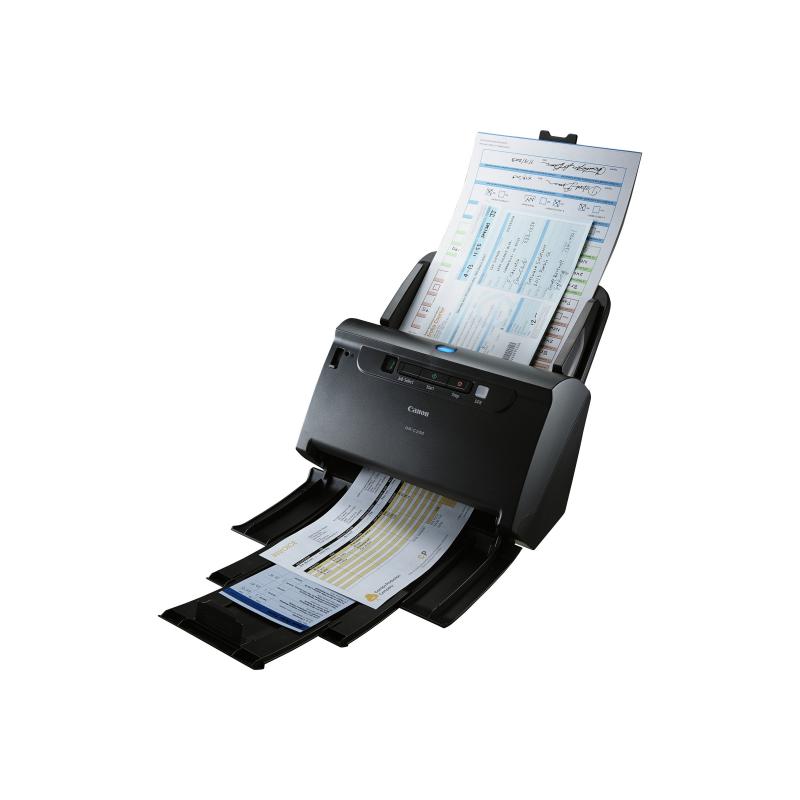

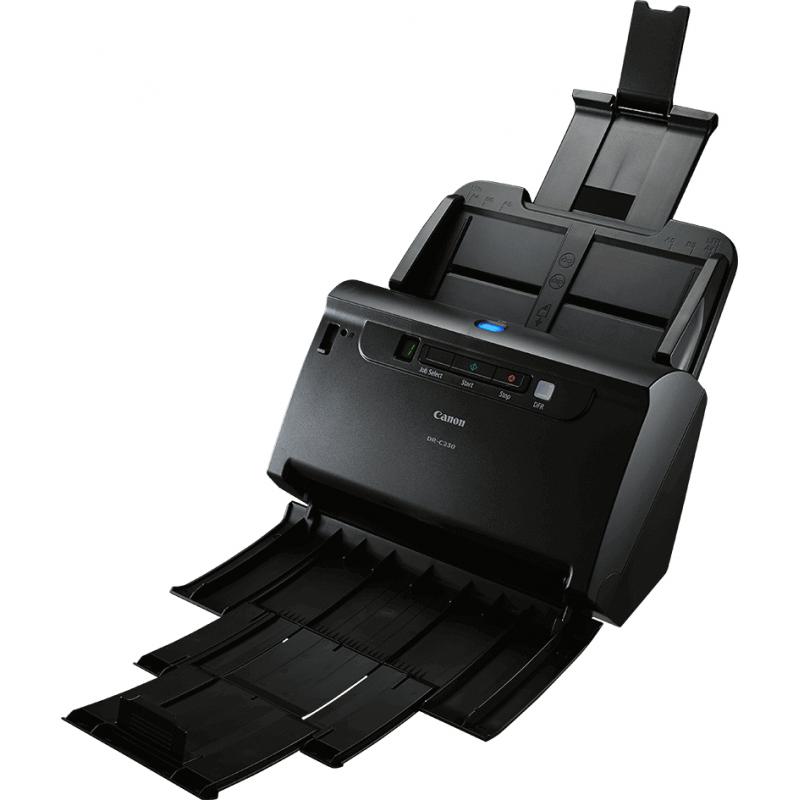

Canon Scanner imageFORMULA DR-C230 DRC230 (2646C003)
Canon Scanner imageFORMULA DR-C230 DRC230 (2646C003)
Canon Scanner imageFORMULA DR-C230 DRC230 (2646C003)
Canon Scanner imageFORMULA DR-C230 DRC230 (2646C003)
Canon Scanner imageFORMULA DR-C230 DRC230 (2646C003)
Canon Scanner imageFORMULA DR-C230 DRC230 (2646C003)
Canon Scanner imageFORMULA DR-C230 DRC230 (2646C003)
Canon Scanner imageFORMULA DR-C230 DRC230 (2646C003)
Canon Scanner imageFORMULA DR-C230 DRC230 (2646C003)
Canon Scanner imageFORMULA DR-C230 DRC230 (2646C003)

Canon Scanner imageFORMULA DR-C230 DRC230 (2646C003)

Canon imageFORMULA DR-C230 - Document scanner - Duplex - Legal - 600 dpi x 600 dpi - up to 30 ppm (mono) / up to 30 ppm (colour) - ADF (60 sheets) - up to 3500 scans per day - USB 2.0

Qty:

Category (Scanner)
Printers & Accessories
Scanners
OEM
2646C003
EAN
4528472107882
SKU
casc0000009 (102177)
Manufacturer
Canon
Type
Document Scanners
UNSPSC
43211711
eClass
19-02-03-01
eClass V7
19-13-03-90
Dimensions (Girth)
355 x 270 x 280 (1455)
Type
Document Scanners
DIN format
A4

Designed to provide excellent value and performance to both small and medium sized organizations, the imageFORMULA DR-C230 comes fully equipped with the latest technologies and features required for simple capture and advanced workflows. The device is the latest high-performance desktop workgroup scanner in Canon's award winning series of imageFORMULA document scanners.
The imageFORMULA DR-C230 is based on the successful imageFORMULA DR-C240, providing a compact, robust and reliable device with scanning speeds of 30 ppm/60 ipm. With its robust feeding mechanism the new scanner is capable of handling a variety of different media including scanning 6 mm thick passports through the 60-sheet document feeder. The compact imageFORMULA DR-C230 also includes various advanced image processing features, including text enhancement, automatic deskew and text orientation recognition, to help deliver exceptionally high quality images while saving users valuable time.

General
Type
Document scanner - desktop
Interface Type
USB 2.0
Max Supported Document Size
Legal (216 x 356 mm)
Scanner
Input Type
Colour
Grayscale Depth
8-bit (256 grey levels)
Colour Depth
24-bit (16.7 million colours)
Optical Resolution
600 dpi x 600 dpi
Automatic Duplexing
Yes
Scan Element Type
CMOS / CIS
Bulb / Light Source Type
RGB LED array
Max Document Scan Speed B/W
30 ppm
Max Document Scan Speed Colour
30 ppm
Duty Cycle
3500 scans per day
Scanner Speed Details
30 ppm - black & white ¦ 30 ppm - colour
Scanner Features
Color Dropout, Ultrasonic Double Feed Detection, Double feed detection, Error Diffusion, Moire Reduction, automatic colour detection, automatic page size detection, blank page skipping, MultiStream Technology, Advanced Text Enhancement, Batch Separation, Smooth Background, Advanced Text Enhancement II, Prevent Bleed Through, Remove Background, Double Feed Release (DFR), Shadow Cropping, Deskew, Color Enhancement, Contrast Arrangment, Auto Resolution, Three-Dimensional Color Correction, Scan Area Setting, Adjustable Gamma Settings, Folio Mode
Compliant Standards
TWAIN, ISIS
Media Handling
Max Document Size
216 mm x 3000 mm
Supported Document Type
Plain paper, business card, plastic card
Document Feeder Type
Automatic
Document Storage Capacity
60 sheets
Expansion / Connectivity
Interfaces
USB 2.0 - Type B
Miscellaneous
Cables Included
USB cable
Compliant Standards
RoHS
Environmental Standards
ENERGY STAR Certified
Yes
Power
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational (Standby)
19 Watt
Power Consumption Sleep
1.4 Watt
Software / System Requirements
Software Included
Drivers & Utilities
OS Required
Microsoft Windows 7 SP1, Microsoft Windows Server 2008 R2 SP1, Microsoft Windows Server 2012 R2, Windows 8.1, Windows 10, Microsoft Windows Server 2016, Apple MacOS X 10.10 - 10.12
Dimensions & Weight
Width
29.1 cm
Depth
25.3 cm
Height
23.1 cm
Weight
2.8 kg
Environmental Parameters
Min Operating Temperature
10 °C
Max Operating Temperature
32.5 °C
Humidity Range Operating
20 - 80%
