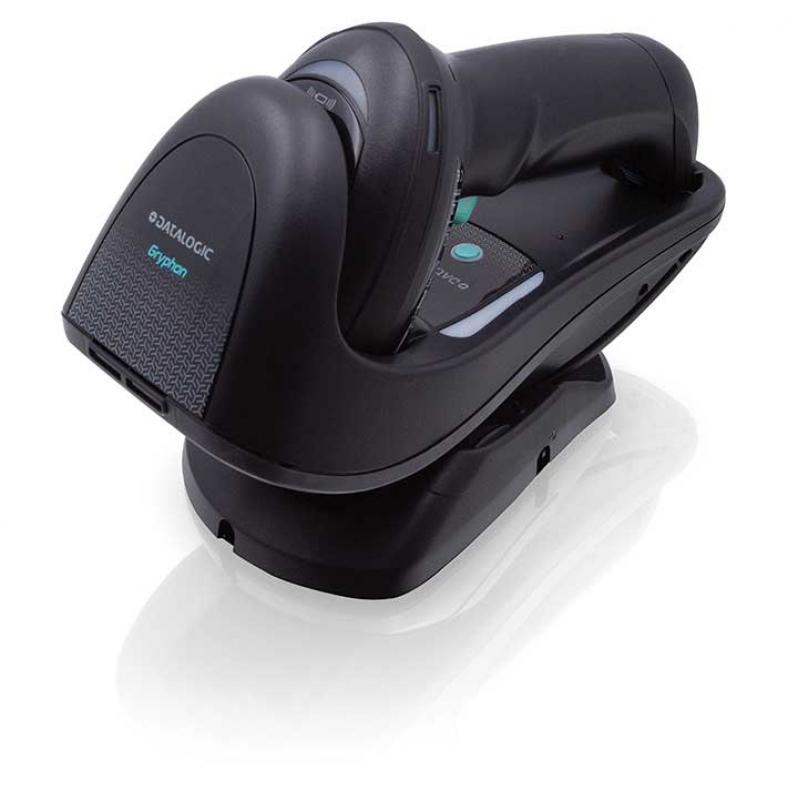

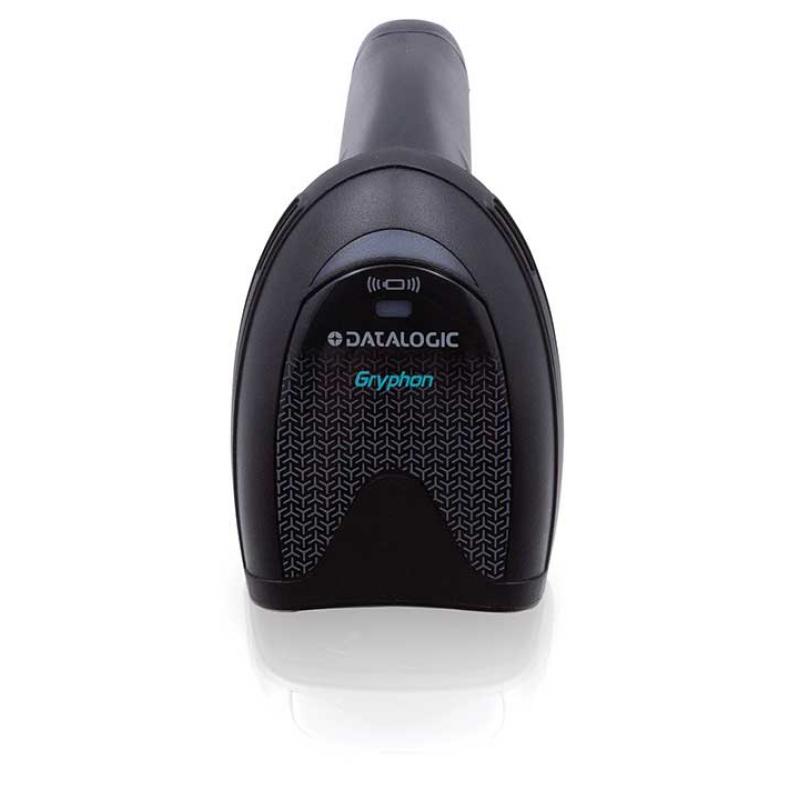

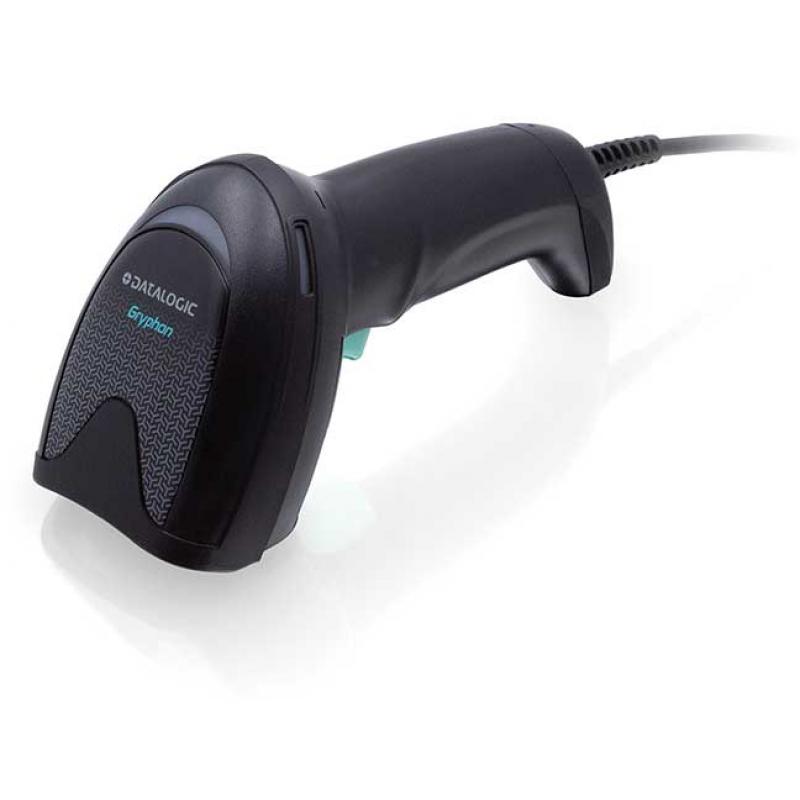

Datalogic Barcodescanner Gryphon I GM4500-HC GM4500HC BPOC Kit (GM4500-HC-433K1) (GM4500HC433K1)
Datalogic Barcodescanner Gryphon I GM4500-HC GM4500HC BPOC Kit (GM4500-HC-433K1) (GM4500HC433K1)
Datalogic Barcodescanner Gryphon I GM4500-HC GM4500HC BPOC Kit (GM4500-HC-433K1) (GM4500HC433K1)
Datalogic Barcodescanner Gryphon I GM4500-HC GM4500HC BPOC Kit (GM4500-HC-433K1) (GM4500HC433K1)
Datalogic Barcodescanner Gryphon I GM4500-HC GM4500HC BPOC Kit (GM4500-HC-433K1) (GM4500HC433K1)
Datalogic Barcodescanner Gryphon I GM4500-HC GM4500HC BPOC Kit (GM4500-HC-433K1) (GM4500HC433K1)
Datalogic Barcodescanner Gryphon I GM4500-HC GM4500HC BPOC Kit (GM4500-HC-433K1) (GM4500HC433K1)
Datalogic Barcodescanner Gryphon I GM4500-HC GM4500HC BPOC Kit (GM4500-HC-433K1) (GM4500HC433K1)

Datalogic Barcodescanner Gryphon I GM4500-HC GM4500HC BPOC Kit (GM4500-HC-433K1) (GM4500HC433K1)

Datalogic Gryphon I GM4500-HC - BPOC Kit - barcode scanner - portable - 2D imager - decoded - RF(433 MHz)

Qty:
View data sheet
Add to comparison list
Category (Scanner)
Printers & Accessories
Scanners
OEM
GM4500-HC-433K1
EAN
5704174089490
SKU
dtlsc000024 (118604)
Manufacturer
Datalogic
Type
Barcode scanner
Customs tariff number
84719000
UNSPSC
43211711
eClass
27-28-01-01
eClass V7
27-28-01-01
Type
Barcode scanner
DIN format
Other DIN format

Ideally suited for stationary applications in administration, laboratory and hospital environments, the GM4500-HC provides extended mobility for cordless operations.

General
Type
Barcode scanner - portable
Colour
Light grey, light green
Barcode
Interface Type
RF(433 MHz)
Minimum Bar Width
3 mil
Scan Element Type
2D imager
Sensor Resolution
1280 x 800
Light Source Wave Length
650 nm
Scan Mode
Single-pass
Skew (Degrees)
65
Pitch (Degrees)
65
Print Contrast Signal (PCS)
15%
Decode Capability
Code 39, GS1 DataBar, QR code, MaxiCode, Aztec code, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Postnet, PDF417, Data Matrix, PLANET, Australian Post, China Post, Japanese Post, Kix (Netherlands) Post, MacroPDF417, RM4SCC, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked
TTL Decoding
Decoded
Connectivity Technology
Wireless
OK Notification
Beeper, LED indicator
Features
Red LEDs illumination
Expansion / Connectivity
Interfaces
1 x USB
Miscellaneous
Cables Included
1 x USB cable
Compliant Standards
RoHS, IEC 60529 IP52
Power
Power Device
Barcode scanner charging stand
Battery
1 x Lithium Ion
Dimensions & Weight
Width
6.8 cm
Depth
16.6 cm
Height
10.9 cm
Weight
161 g
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
0 - 95% (non-condensing)
Drop Specification
1.8 m to concrete
