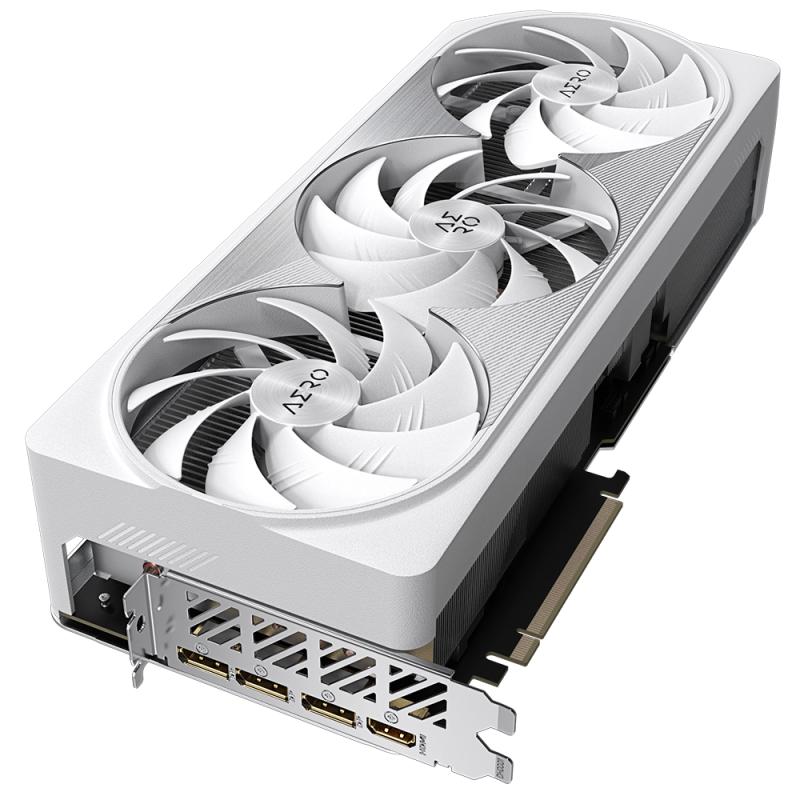

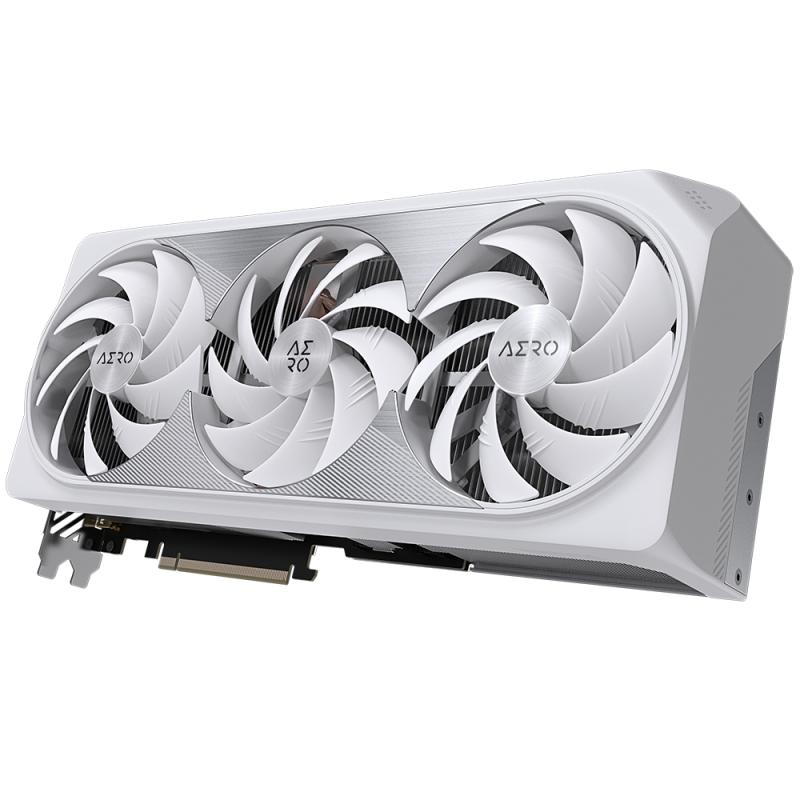

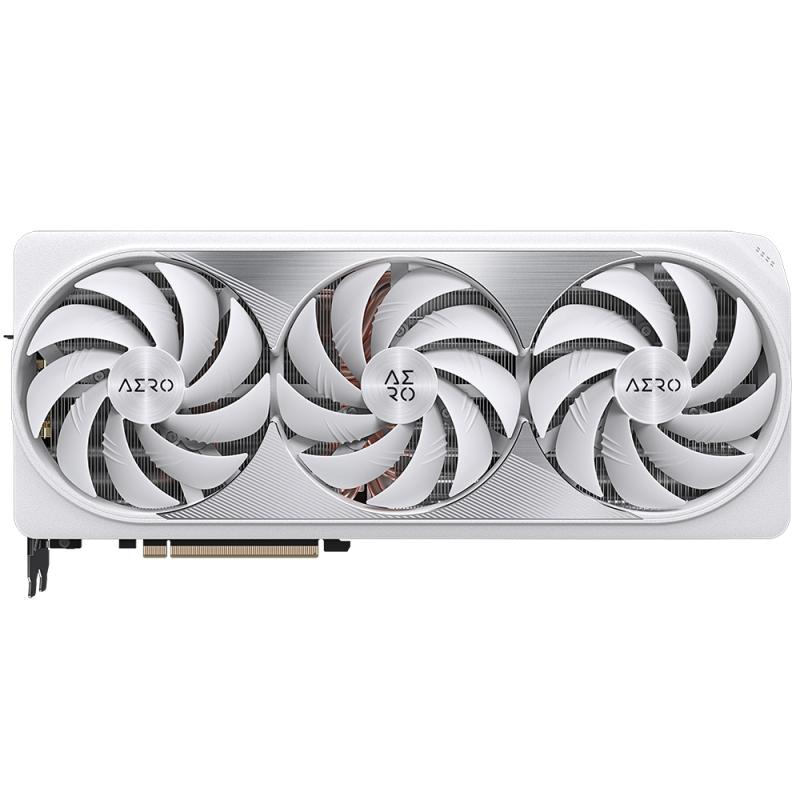

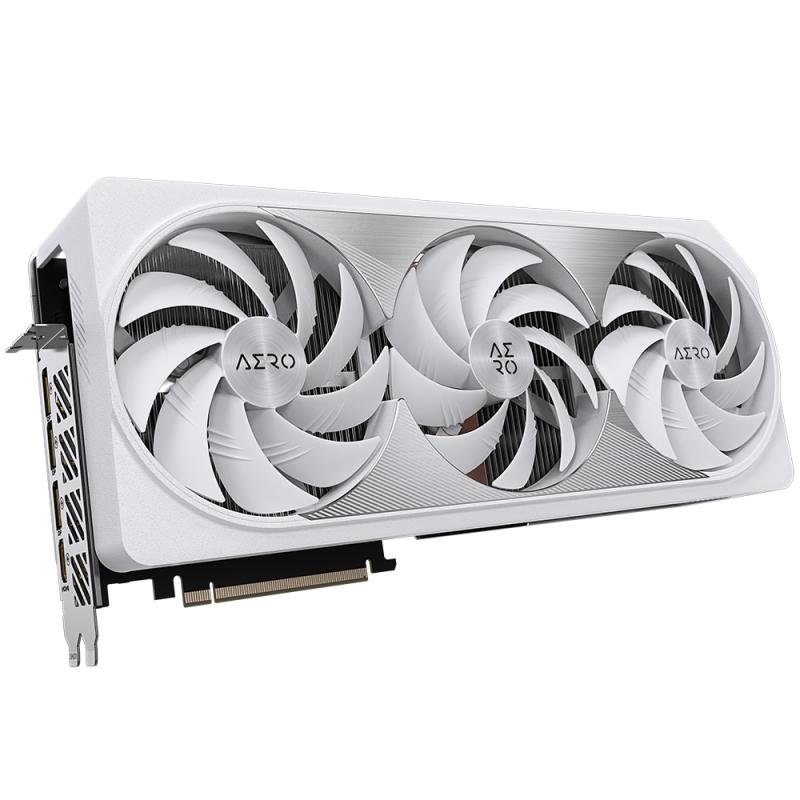

Gigabyte GeForce RTX 4080 AERO OC (GV-N4080AERO (GVN4080AERO OC-16GD) OC16GD)
Gigabyte GeForce RTX 4080 AERO OC (GV-N4080AERO (GVN4080AERO OC-16GD) OC16GD)

Gigabyte GeForce RTX 4080 AERO OC (GV-N4080AERO (GVN4080AERO OC-16GD) OC16GD)

Gigabyte GeForce RTX 4080 AERO OC - Graphics card - GeForce RTX 4080 - 16 GB GDDR6X - PCIe 4.0 - HDMI, 3 x DisplayPort


Category (Grafikkarten)
PC Components
Graphics Cards
140902 (140902)
Graphics card
Customs tariff number
eClass V7
Chipset family
NVIDIA GeForce RTX 4000
Memory capacity
Bus width
Other features

The Ada architecture unleashes the full glory of ray tracing, which simulates how light behaves in the real world. With the power of RTX 40 series and third-gen RT Cores, you can experience incredibly detailed virtual worlds like never before.

  • The performance multiplier, powered by AI
    DLSS is a revolutionary breakthrough in AI-powered graphics that massively boosts performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 series GPUs, DLSS 3 uses AI to create additional high-quality frames.
  • Victory measured in milliseconds
    NVIDIA Reflex and GeForce RTX 40 series GPUs deliver the lowest latency and best responsiveness for the ultimate competitive advantage. Built to optimize and measure system latency, Reflex provides faster target acquisition, quicker reaction times, and the best aim precision for competitive games.
  • Your ideas, accelerated by NVIDIA Studio
    Take your creative projects to the next level with NVIDIA Studio. Powered by new dedicated hardware, RTX 40 Series unlocks unmatched performance in 3D rendering, video editing, and graphic design. Experience feature-rich RTX accelerations in top creative apps, world-class NVIDIA Studio drivers engineered to provide maximum stability, and a suite of exclusive tools that harness the power of RTX for AI-assisted creative workflows.
  • WINDFORCE cooling system
    The WINDFORCE cooling system features three 110 mm unique blade fans, alternate spinning, 11 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
  • Alternate spinning
    Reduce the turbulence of adjacent fans and increase airflow pressure.
  • 3D Active Fan
    The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
  • Unique blade fan
    The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
  • Graphene nano lubricant
    Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
  • Screen cooling
    Extended heatsink design allows air flow to pass through, providing better heat dissipation.
  • Large vapor chamber and heat-pipe
    The large vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
  • RGB Fusion
    With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in Gigabyte control center.
  • Protection metal back plate
    The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
  • Dual BIOS
    The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.
  • Power indicator
    When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
  • Anti-SAG bracket
    The new anti-sag bracket is tailored to each graphics card. It provides the optimized reinforcement and better overall visual appearance.
  • Friendly PCB design
    Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

Device Type
Graphics card
Bus Type
PCI Express 4.0
Graphics Engine
NVIDIA GeForce RTX 4080
Core Clock
2535 MHz
CUDA Cores
Max Resolution
7680 x 4320
Max Monitors Supported
3 x DisplayPort ¦ HDMI
API Supported
OpenGL 4.6, DirectX 12 Ultimate
Dual Bios, GIGABYTE WINDFORCE cooling design, Vapour Chamber Combined Heat-pipe Design, RGB fusion, Nvidia Studio, NVIDIA Reflex, Nvidia Broadcast, metal backplate, NVIDIA Ada Lovelace GPU technology, 4th gen Tensor Cores, 3rd gen Ray Tracing Cores, NVIDIA DLSS 3
16 GB
Memory Speed
22.4 Gbps
Bus Width
System Requirements
Required Power Supply
850 W
Additional Requirements
16 pin PCI Express power connector
Included Accessories
16-pin to 3x 8-pin cable adapter
Compliant Standards
DisplayPort 1.4a
15 cm
34.2 cm
7.5 cm
