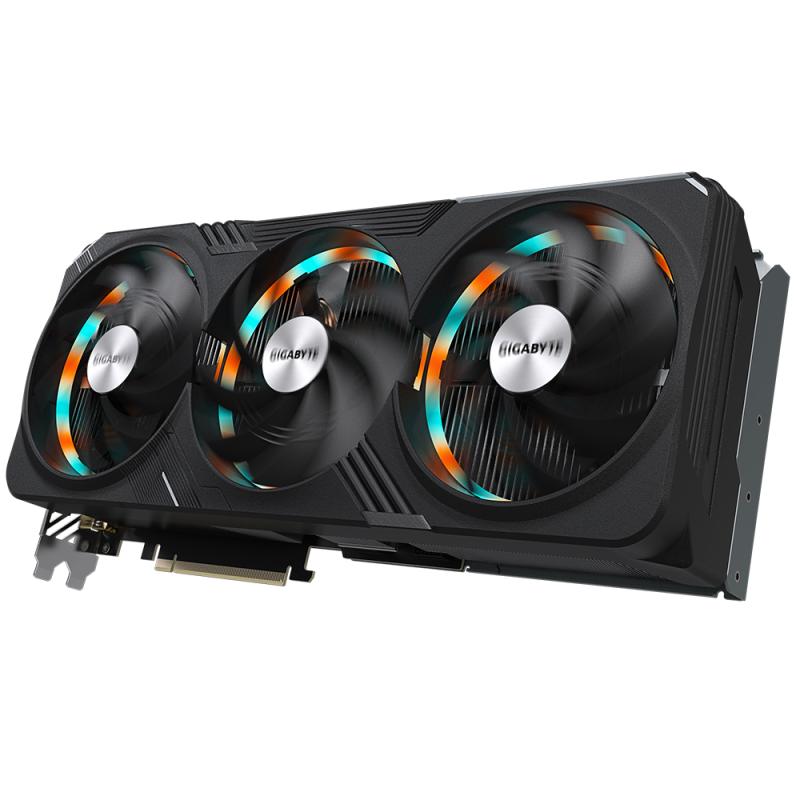

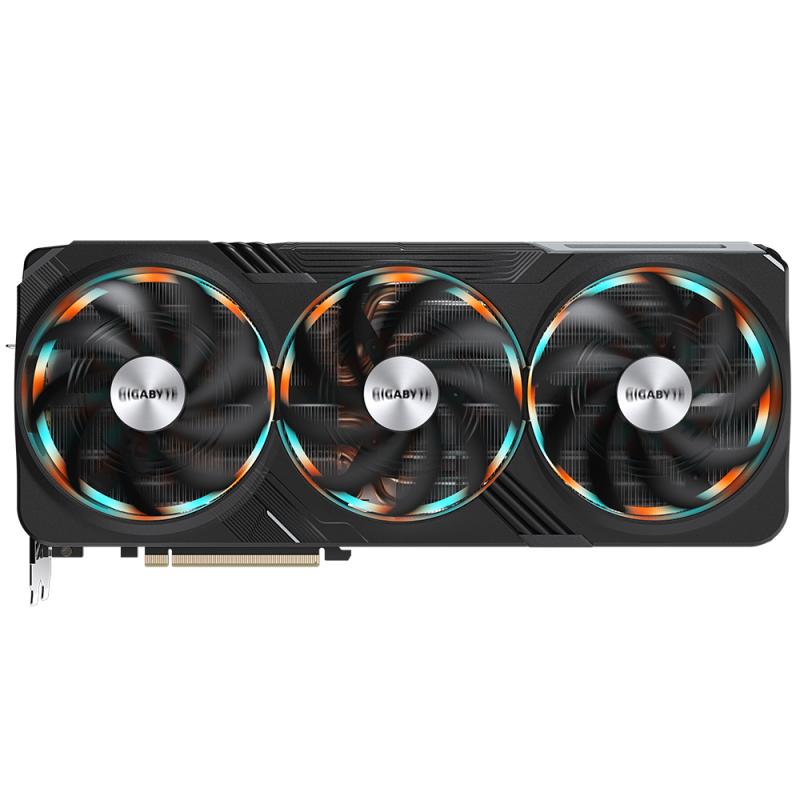

WINDFORCE cooling system The WINDFORCE cooling system features three 110 mm designed bionic shark fans, alternate spinning, 10 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
3D Active Fan The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
Unique Blade Fan The airflow is split by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
Graphene nano lubricant Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter
Screen cooling Extended heatsink allows air to pass through, providing better heat dissipation.
RGB Fusion The legendary three-ring lighting provides excellent visual enjoyment.
Ultra durable Ultra durable certified highest-grade metal chokes, lower ESR solid capacitors, 2 oz copper PCB, and lower RDS (on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
Friendly PCB design Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
General
Device Type
Graphics card
Bus Type
PCI Express 4.0 x16
Graphics Engine
NVIDIA GeForce RTX 4090
CUDA Cores
16348
Max Resolution
7680 x 4320
Max Monitors Supported
4
Interfaces

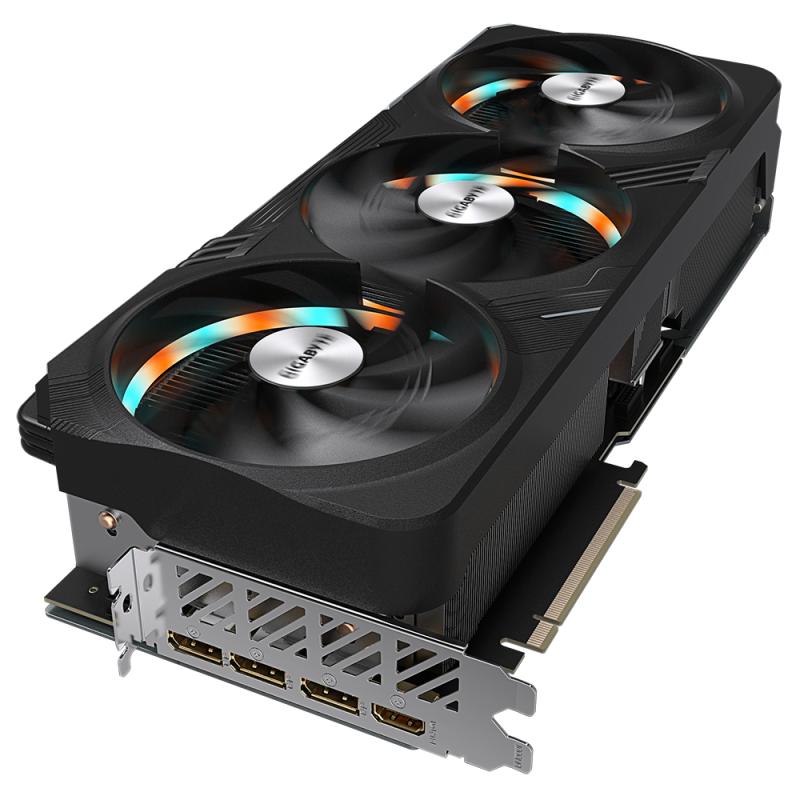

3 x DisplayPort ¦ HDMI
API Supported
DirectX 12, OpenGL 4.6
Features
Dual Bios, GIGABYTE WINDFORCE cooling design, RGB fusion, NVIDIA Tensor Core, Nvidia RT Core, 3D Active Fan, metal backplate
