General
Product Type

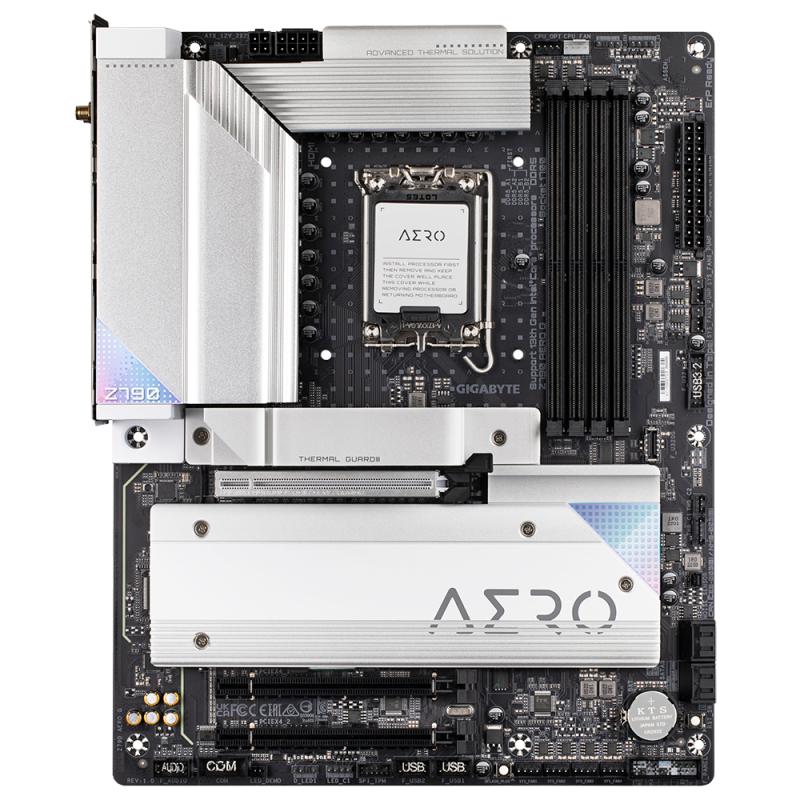

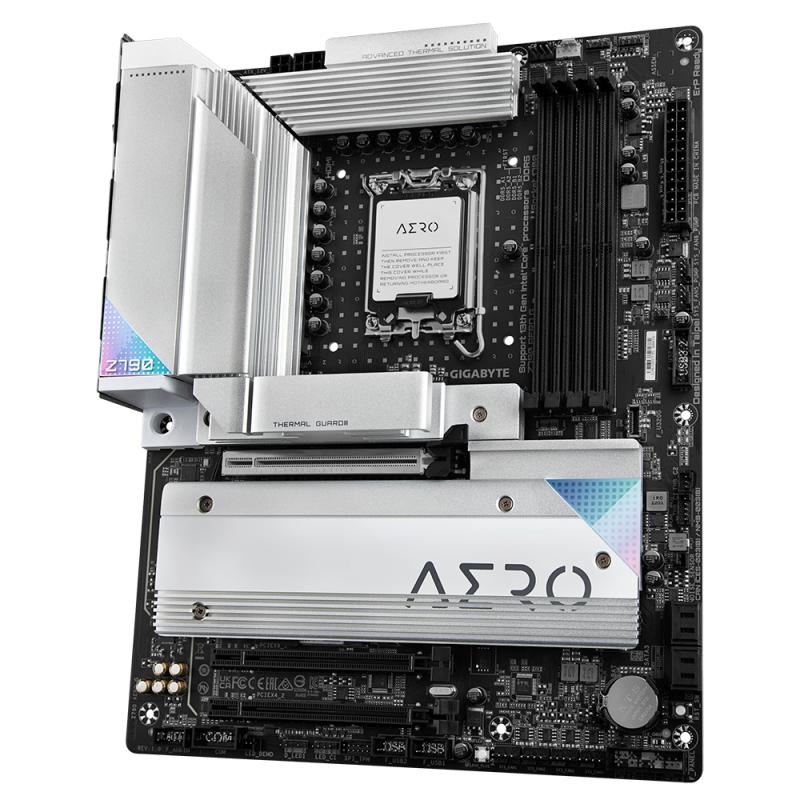

Motherboard - ATX
Processor Socket
LGA1700 Socket
Compatible Processors
(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Bus Clock
5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4000 MHz, 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 7400 MHz (O.C.), 7600 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC, ECC (operate in non-ECC mode)
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode
Audio
Type
High Definition Audio (7.1-channel)
Audio Codec
Realtek ALC1220-VB
Compliant Standards
High Definition Audio
LAN
Network Interfaces
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3
Expansion / Connectivity
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 2 x PCIe 3.0 x16
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 4 x M.2 ¦ PCIe 5.0 -connectors: 1 x M.2
Interfaces
1 x USB-C 3.2 Gen 2 ¦ 1 x HDMI ¦ 1 x USB-C Gen2x2 ¦ 2 x USB 3.2 Gen 2 ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x DisplayPort input ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x TOSLINK
Internal Interfaces
2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen 2x2 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 2 x Thunderbolt - header ¦ 1 x serial - header
Power Connectors
4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Features
WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support
Hardware Monitoring
System voltage, water cooling flow rate, fan fail warning, noise detection
Hardware Features
Q-Flash, Q-Flash Plus, GIGABYTE Smart Fan 6
Miscellaneous
Software Included
Norton Internet Security
Compliant Standards
DisplayPort 1.4, HDCP 2.3
