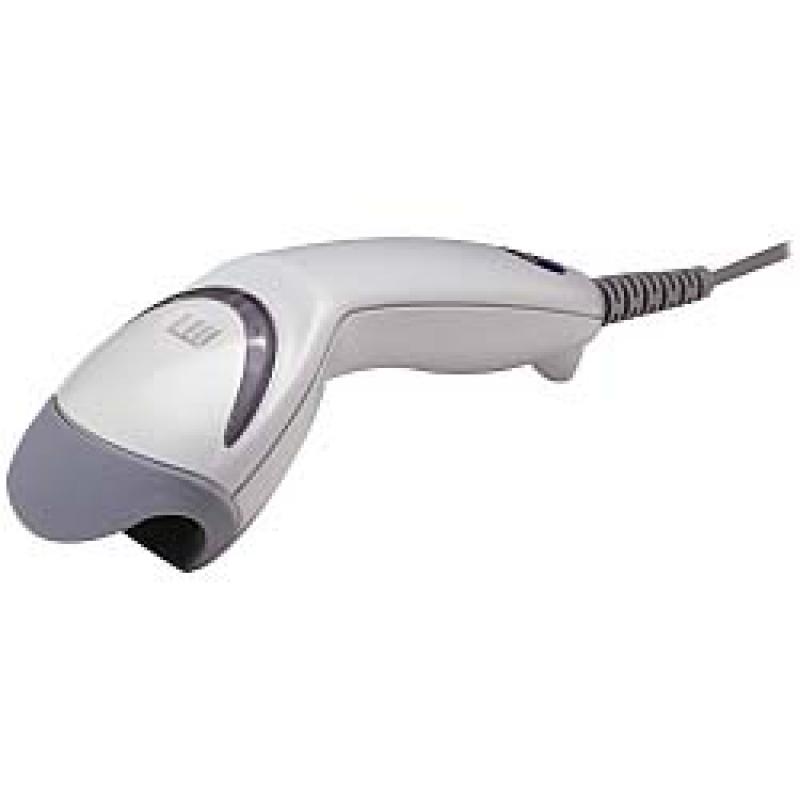

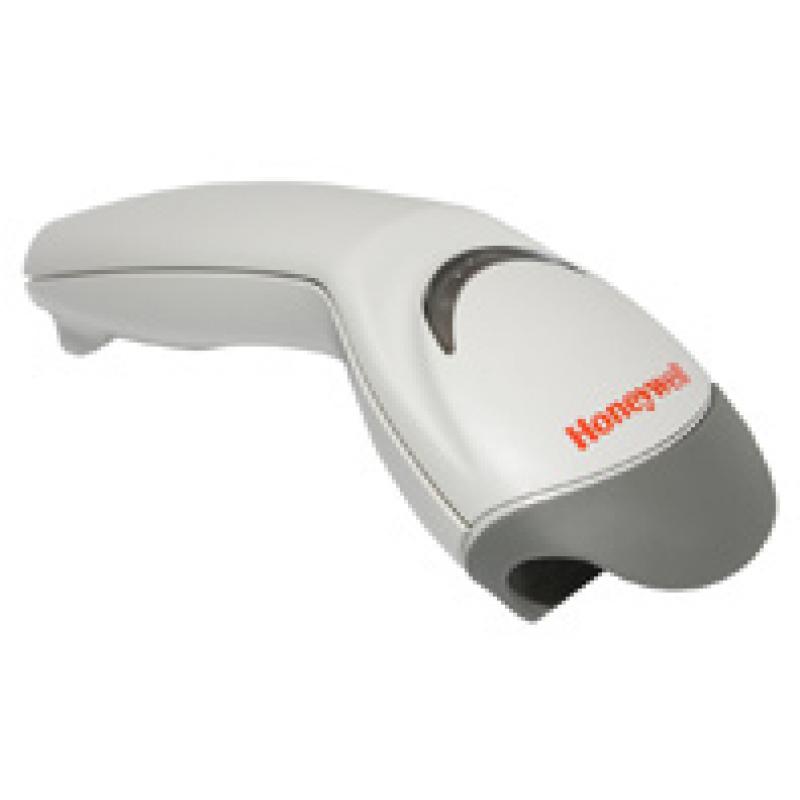

Honeywell Barcode Scanner MS5145 Eclipse (MK5145-71A38-EU) (MK514571A38EU)
Honeywell Barcode Scanner MS5145 Eclipse (MK5145-71A38-EU) (MK514571A38EU)
Honeywell Barcode Scanner MS5145 Eclipse (MK5145-71A38-EU) (MK514571A38EU)
Honeywell Barcode Scanner MS5145 Eclipse (MK5145-71A38-EU) (MK514571A38EU)
Honeywell Barcode Scanner MS5145 Eclipse (MK5145-71A38-EU) (MK514571A38EU)
Honeywell Barcode Scanner MS5145 Eclipse (MK5145-71A38-EU) (MK514571A38EU)

Honeywell Barcode Scanner MS5145 Eclipse (MK5145-71A38-EU) (MK514571A38EU)

Honeywell MS5145 Eclipse - Barcode scanner - handheld - 72 line / sec - decoded - USB

Qty:

Category (Scanner)
Printers & Accessories
Scanners
OEM
MK5145-71A38-EU
EAN
4250204911022
SKU
honsc000044 (105073)
Manufacturer
Honeywell
Master carton
1
Type
Barcode scanner
Model
MS5145 Eclipse
Customs tariff number
84719000
UNSPSC
43211711
eClass
27-28-01-01
eClass V7
27-28-01-01
Dimensions (Girth)
194 x 124 x 124 (690)
Type
Barcode scanner
DIN format
A1

Honeywell's MS5145 Eclipse is a low cost laser-based alternative to CCD scanners. Its compact form factor and high end feature set simplify its use in a variety of applications at the press of a button.
Eclipse is a single-line, hand-held laser scanner. Equipped with Honeywell's patented CodeGate technology, Eclipse can be used in a wide variety of applications. CodeGate technology allows the user to easily target the desired bar code and complete data transmission with the press of a single button. This makes Eclipse a perfect selection for menu scanning, point-of-sale, document processing and inventory control.
With Honeywell's state-of-the-art scanning technology, the MS5145 Eclipse has a longer working range and a wider scan field than a typical CCD. The width of the scan line grows as the scanner moves further away from bar codes.
CodeSense is a unique feature employed by Eclipse in the absence of infrared object detection. It provides the user with a pulsing laser line for bar code detection. When a bar code is detected, the laser line switches to a constant state to allow for scanning via CodeGate.

  • CodeGate
    Zero in on desired code and complete data transmission with the push of a single button - ideal for menu scanning applications.
  • CodeSense
    Automatically wakes scanner from sleep mode when a bar code is detected.
  • Powerlink cables
    It uses the same user-replaceable cables and power supplies as voyager and orbit.
  • Flash ROM
    It protects POS investment with free firmware updates via MetroSet2 software and standard PC.

General
Type
Barcode scanner - handheld
Colour
Light grey
Localisation
Europe
Barcode
Interface Type
USB
Minimum Bar Width
4 mil
Scan Element Type
Visible laser diode
Scan Mode
Single-pass
Scan Speed
72 line / sec
Max Working Distance
17.8 cm
Skew (Degrees)
52
Pitch (Degrees)
68
Print Contrast Signal (PCS)
35%
Decode Capability
EAN/JAN, Code 93, Matrix 2 of 5, Code 39, NW-7, GS1 DataBar, Telepen, Code 32, Codabar, Code 128, Code 11, Code 2 of 5, UPC, Interleaved 2 of 5, MSI-Plessey, China Post, Trioptic Code, EAN-UCC Composite, Code 93i
TTL Decoding
Decoded
Connectivity Technology
Wired
OK Notification
LED indicator
Features
Reduced Space Symbology (RSS), CodeGate, CodeSense
Expansion / Connectivity
Interfaces
1 x USB - Type A
Miscellaneous
Cables Included
1 x USB cable - 3 m
Compliant Standards
cUL, RoHS, WEEE, OPOS, cULus
Software
Software Included
MetroSet2
Dimensions & Weight
Width
6.3 cm
Depth
16.9 cm
Height
5.1 cm
Weight
100 g
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 95% (non-condensing)
Drop Specification
1.5 m
