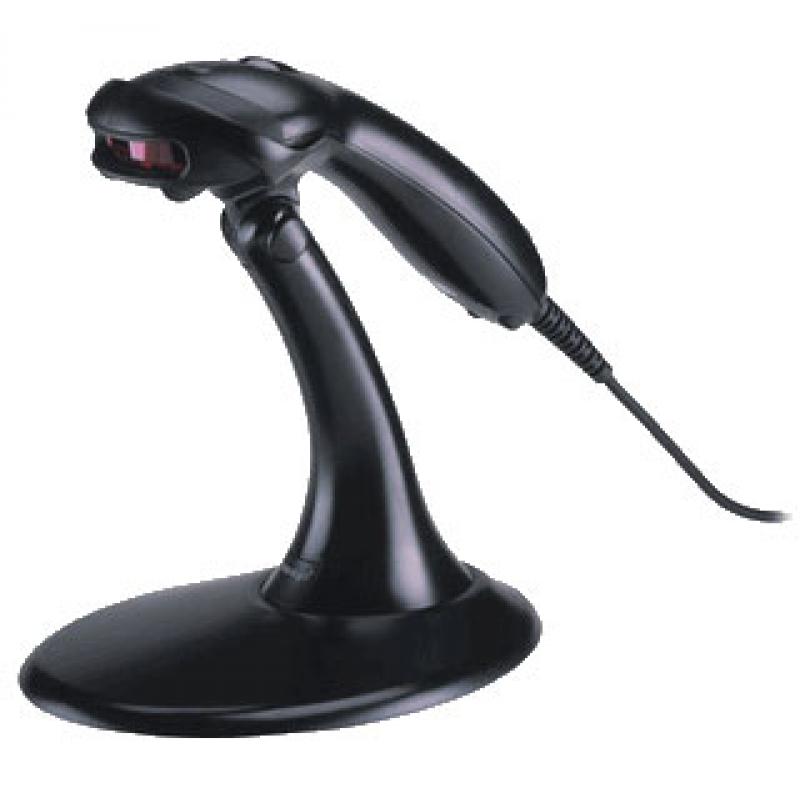

Honeywell's MS9500 Voyager series of hand-held (single-line) laser scanners offers the user an aggressive solution for scanning all standard 1D bar codes including GS1 DataBar (RSS) bar codes. The MS9500 series is equipped with both in-stand and out-of-stand operation enabling hand-held or fixed projection scanning.
The MS9540, VoyagerCG incorporates Honeywell's patented auto-trigger and CodeGate button feature. When a bar code is place in the scanner's IR range, the auto-trigger activates the laser enabling the user to align the visible laser line over the bar code selected for scanning. The user can then press the CodeGate button, to transmit the data to the host system. When the MS9540 is placed in the stand the CodeGate button feature will automatically deactivating for hands free operation.
- Automatic trigger
Use scanner as either a hand-held device or a fixed presentation scanner when mounted in the stand. - 650-nanometer laser
High-visibility laser allows user to place laser line on selected bar code. - CodeGate
Zero in on desired code and complete data transmission with the push of a single button - ideal for menu scanning applications. - Parsing (data editing)
Formatting bar code data is to meet host system's specific requirements.
General
Type
Barcode scanner - handheld
Barcode
Scan Element Type
Visible laser diode
Light Source Wave Length
650 nm
Max Working Distance
25.4 cm
Print Contrast Signal (PCS)
35%
Decode Capability
EAN/JAN, Code 93, Matrix 2 of 5, Code 39, NW-7, GS1 DataBar, Telepen, Code 32, Codabar, Code 128, Code 11, Code 2 of 5, UPC, Interleaved 2 of 5, MSI-Plessey, China Post, Trioptic Code, EAN-UCC Composite, Code 93i
Connectivity Technology
Wired
OK Notification
Beeper, LED indicator
Features
Triggered, Reduced Space Symbology (RSS), CodeGate
Expansion / Connectivity
Interfaces
1 x USB - Type A
Miscellaneous
Included Accessories
Hard mount stand
Cables Included
1 x USB cable
Compliant Standards
IEC 825-1/EN 60825-1 class 1, EN55022 Class B, ICES-003 Class B, FCC Part 15 B, RoHS, Laser Class 1, WEEE, cULus, EN 60825-1
Power
Electric Current Required
120 mA (standby), 165 mA (operating)
Dimensions & Weight
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 95% (non-condensing)
Drop Specification
1.5 m to concrete
