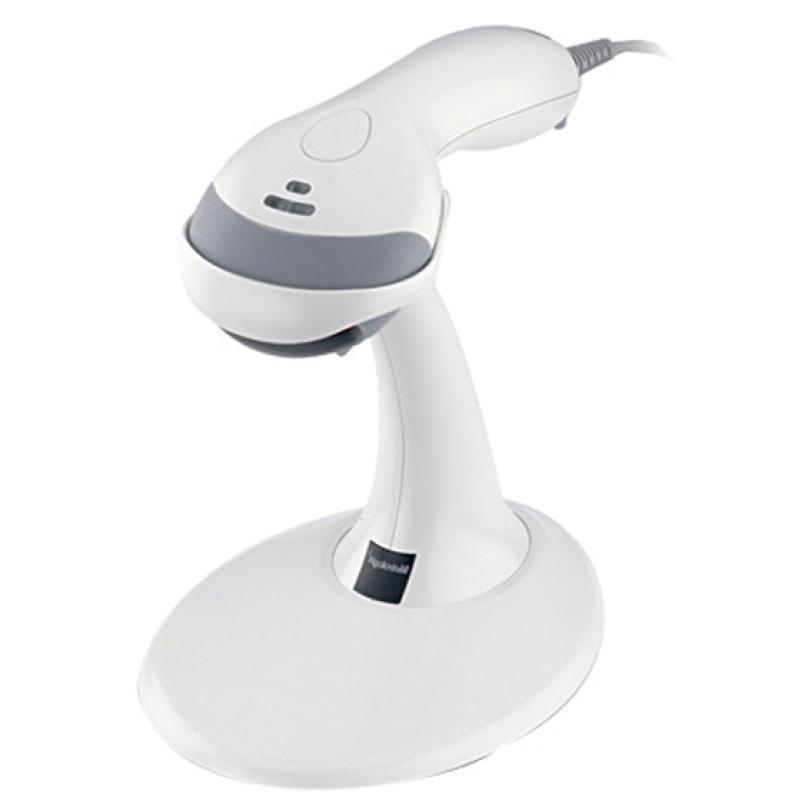

Honeywell Barcode Scanner VoyagerCG 9540 (MK9540-77A38) (MK954077A38)
Honeywell Barcode Scanner VoyagerCG 9540 (MK9540-77A38) (MK954077A38)
Honeywell Barcode Scanner VoyagerCG 9540 (MK9540-77A38) (MK954077A38)
Honeywell Barcode Scanner VoyagerCG 9540 (MK9540-77A38) (MK954077A38)
Honeywell Barcode Scanner VoyagerCG 9540 (MK9540-77A38) (MK954077A38)
Honeywell Barcode Scanner VoyagerCG 9540 (MK9540-77A38) (MK954077A38)

Honeywell Barcode Scanner VoyagerCG 9540 (MK9540-77A38) (MK954077A38)

Honeywell MS9540 Voyager. Scanner type: 1D, Sensor type: Laser, Working distance: 150 cm. Standard interfaces: USB. Product colour: White, Certification: FCC Part 15 ICES-003 EN55022 Class B. Input voltage: 5 V. Weight: 149 g

Qty:

Category (Scanner)
Printers & Accessories
Scanners
OEM
MK9540-77A38
EAN
4250204911169
SKU
honsc000063 (105092)
Manufacturer
Honeywell
Master carton
0.0000
Type
Barcode scanner
Model
MS9540 VoyagerCG
UNSPSC
43211711
eClass
27-28-01-01
eClass V7
27-28-01-01
Dimensions (Girth)
225 x 140 x 130 (765)
Type
Barcode scanner
DIN format
Other DIN format

Voyager and VoyagerCG hand-held, single-line laser scanners feature patented automatic infrared activation and decode all standard 1D bar codes, including GS1 DataBar. VoyagerCG also includes CodeGate technology for menu scanning applications. CodeGate zeroes in on the desired code and completes data transmission with the push of a single button.
- Automatic trigger: Use scanner as either a hand-held device or a fixed presentation scanner when mounted in
the stand
- CodeGate data transmission: Ideal for menu-scanning applications and when combined with the Auto-Trigger, VoyagerCG is the most intuitive bar code scanning system in the industry
- 650-nanometer laser: Equipped with a high-visibility laser allowing the user to place the line on bar code
- FlashROM: Update firmware from any PC via MetroSet2 software provided free from Metrologic
- Parsing (data editing): Bar code data can be formatted to meet the requirements of host system

Performance
Product colour
White
Certification
FCC Part 15 ICES-003 EN55022 Class B
Ports & interfaces
Standard interfaces
USB
Scanning
Scanner type
1D
Sensor type
Laser
Working distance
150 cm
Wavelength
650 nm
Decoding standards
1D GS1
Tilt angle range
0 - 50 °
Power
Input voltage
5 V
Weight & dimensions
Weight
149 g
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 60 °C
Operating relative humidity (H-H)
5 - 95 %
Logistics data
Harmonized System (HS) code
84716070
Other features
Dimensions (WxDxH)
78 x 198 x 56 mm
Light source
4842 Lux
