Honeywell Barcodescanner (1470G2D-2USB-1-R) (1470G2D2USB1R)

Find suitable products

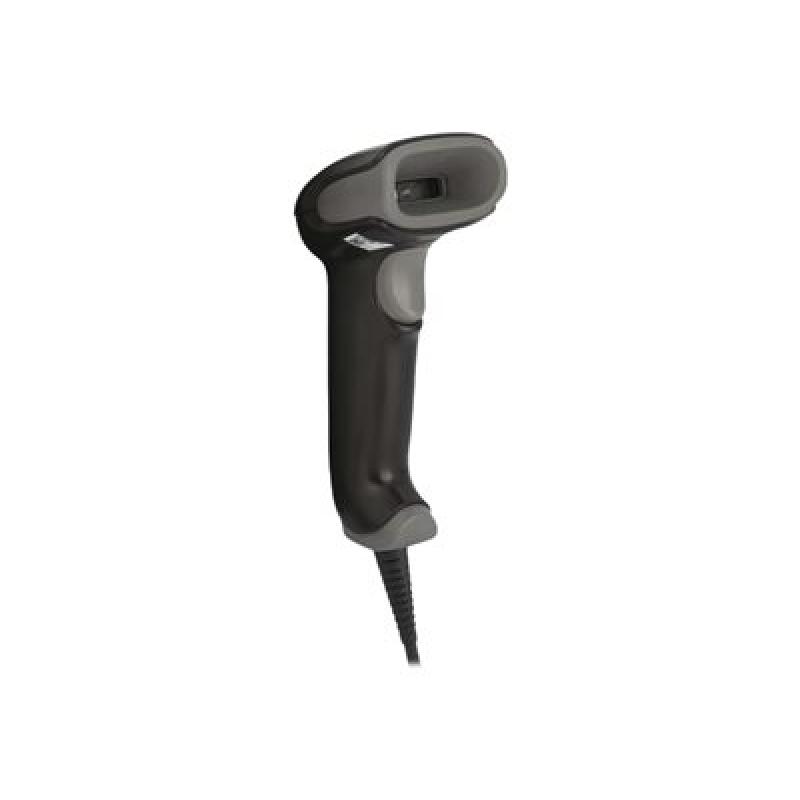

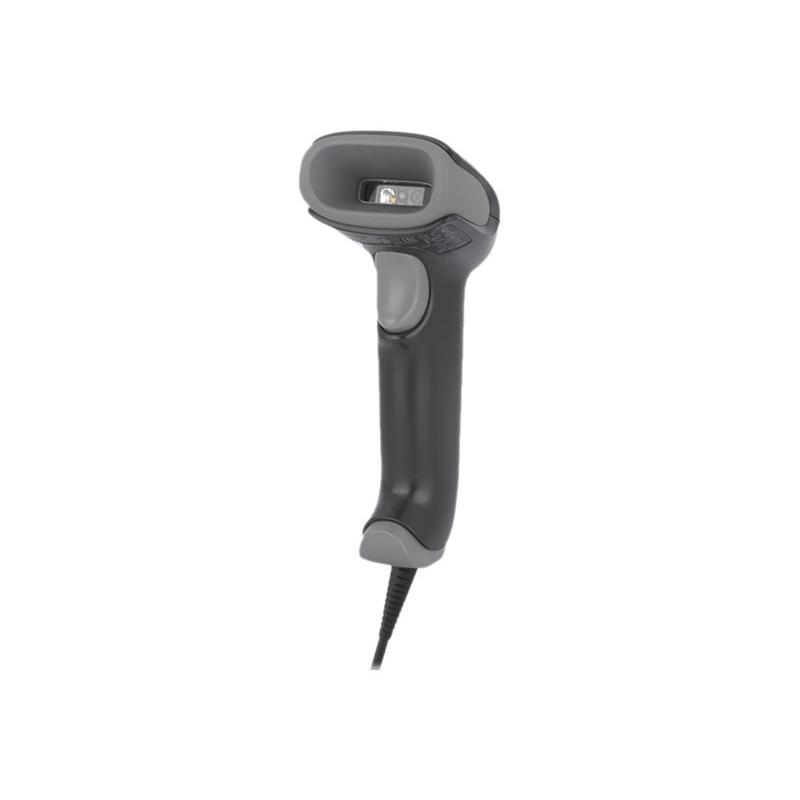

Honeywell Voyager Extreme Performance 1470g - USB Kit - barcode scanner - handheld - 2D imager - decoded - USB

View data sheet
Add to comparison list

Category (Drucker, Scanner & Multifunktionsgeräte): Printers & Accessories
Scanners
OEM: 1470G2D-2USB-1-R
EAN: 5706998881328
SKU: 133311 (133311)
Manufacturer: Honeywell
Type: Barcode scanner
Customs tariff number: 84719000
UNSPSC: 43211711
eClass: 27-28-01-01
eClass V7: 27-28-01-01
Dimensions (Girth): 195 x 125 x 110 (665)
Type: Barcode scanner
DIN format: Other DIN format
Operating systems: Windows XP

Description
Features
Specifications

The Voyager Extreme Performance 1470 series scanner is designed for in-store retail workflows that require a highly accurate 1D/2D scanning solution in a durable form factor. Trust it for superior scanning capability on traditional barcodes and digital screens - even on damaged and difficult-to-read codes.

Fast, accurate scanning
Highly accurate, fast scans of even damaged and poor-quality barcodes. An extended depth of field scans to the bottom of the cart, saving time and back bending.
A good read every time
Enhanced performance on the barcodes stores scan every day: merchandise price tags, plus digital coupons, codes, and wallets on customers' smartphones.
Long Bluetooth range
A longer Bluetooth range compared to competitive devices enables greater operational flexibility for line busting or peak season satellite POS stations.

General

Type

Barcode scanner - handheld

Colour

Black

Localisation

EMEA

Barcode

Interface Type

USB

Minimum Bar Width

5 mil

Scan Element Type

2D imager - Red LED

Sensor Resolution

1040 x 720

Light Source Wave Length

624 nm

Scan Mode

Single-pass

Max Working Distance

61.5 cm

Skew (Degrees)

Pitch (Degrees)

Print Contrast Signal (PCS)

25%

Decode Capability

Pharmacode 39, Code 93, Matrix 2 of 5, Code 39, ISBT 128, QR code, MaxiCode, Aztec code, Code 32, Code 39 Full ASCII, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, PDF417, Data Matrix, TLC39, China Post, Korea Post, Codablock F, UPC-E1, UPC-E0, MacroPDF417, Hong Kong 2 of 5, GS1 DataBar Omnidirectional, GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Composites, Codablock A, MSI, GS1-128, NEC 2 of 5, Straight 2 of 5, Han Xin

TTL Decoding

Decoded

Connectivity Technology

Wired

OK Notification

Beeper, LED indicator, vibration

Features

ESD (electrostatic discharge) safe

Expansion / Connectivity

Interfaces

1 x USB - Type A

Miscellaneous

Included Accessories

Stand

Cables Included

1 x USB cable - 1.5 m

Compliant Standards

IP40

Power

Power Consumption Operational

2 Watt

Electric Current Required

400 mA (operating), 90 mA (standby)

Dimensions & Weight

Width

6 cm

Depth

8.2 cm

Height

16.9 cm

Weight

130 g

Manufacturer Warranty

Service & Support

Limited warranty - 5 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

50 °C

Humidity Range Operating

0 - 95% (non-condensing)

Drop Specification

1.8 m to concrete
