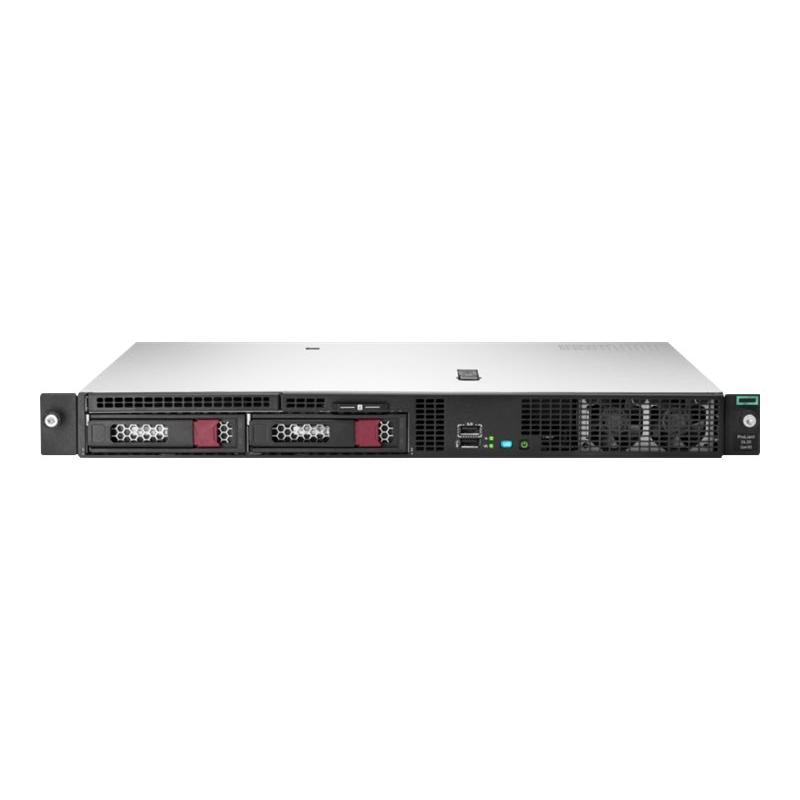

HPE ProLiant DL20 Gen10 Performance - Server - rack-mountable - 1U - 1-way - 1 x Xeon E-2224 / 3.4 GHz - RAM 16 GB - SATA 3.5" bay(s) - no HDD - Matrox G200 - GigE - monitor: none

Qty:

Category (Server & Storage)
Server & Storage
Servers
OEM
P17079-B21
EAN
0190017366937
SKU
129784 (129784)
Manufacturer
HP Enterprise
Type
Server
Customs tariff number
84715000
UNSPSC
43211501
eClass
19-01-01-03
eClass V7
19-01-04-90
Processor
Other Processor
Operating systems
Red Hat Linux
Main memory
16GB
Rack height units
1

The dense and compact HPE ProLiant DL20 server provides a unique blend of enterprise class capabilities & value. It offers outstanding configuration flexibility to cater to a wide variety of business requirements.

General
Type
Server
Product Form Factor
Rack-mountable - 1U
Server Scalability
1-way
Processor / Chipset
CPU
Intel Xeon E-2224
Clock Speed
3.4 GHz
Max Turbo Speed
4.6 GHz
Number of Cores
Quad-Core
CPU Qty
1
Max CPU Qty
1
CPU Upgradability
Upgradable
Chipset Type
Intel C242
Cache Memory
Installed Size
8 MB
Cache Per Processor
8 MB
RAM
Installed Size
16 GB / 64 GB (max)
Technology
DDR4 SDRAM - ECC
Effective Memory Speed
2666 MHz
Rated Memory Speed
2666 MHz
Memory Specification Compliance
PC4-21333
Form Factor
DIMM 288-pin
Slots
4 (Total)
Features
Unbuffered
Hard Drive
Type
No HDD
Storage Controller
Type
1 x RAID
Controller Interface Type
SATA 6Gb/s
Storage Controller Name
HPE Smart Array S100i SR Software RAID
Channel Qty
4
RAID Level
RAID 0, RAID 1, RAID 5, RAID 10
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Graphics Processor
Matrox G200
Video Interfaces
VGA
Networking
Interface (Bus) Type
PCI Express x2
Ethernet Ports
2 x Gigabit Ethernet
Ethernet Controller
HPE 332i
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller
Integrated Lights-Out 4
Features
Wake on LAN (WoL), PXE support
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Expansion / Connectivity
Bays
1 (total) / 1 (free) x external 5.25" ¦ 2 (total) / 2 (free) x internal 3.5" LFF
Slots
1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height (x16 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - low-profile (x8 mode)
Interfaces
1 x VGA ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x LAN (Gigabit Ethernet) / HP iLO ¦ 5 x USB 3.0 (2 front, 2 rear, 1 internal)
Miscellaneous
Compliant Standards
AES, FIPS 140-2, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, ACPI 6.1, Redfish API, UEFI
Power
Device Type
Power supply
Installed Qty
1
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
290 Watt
Manufacturer Warranty
Service & Support
Limited warranty - parts and labour - 3 years - on-site - response time: next business day
Dimensions & Weight
Width
43.46 cm
Depth
38.22 cm
Height
4.32 cm
Weight
7.88 kg
Environmental Parameters
Min Operating Temperature
10 °C
Max Operating Temperature
35 °C
Humidity Range Operating
8 - 90% (non-condensing)
