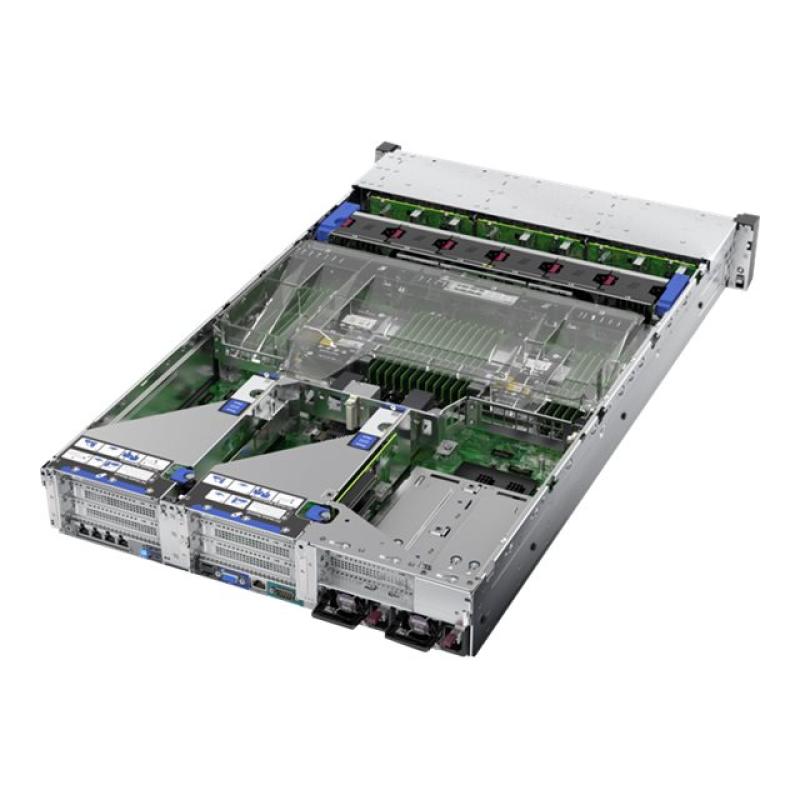

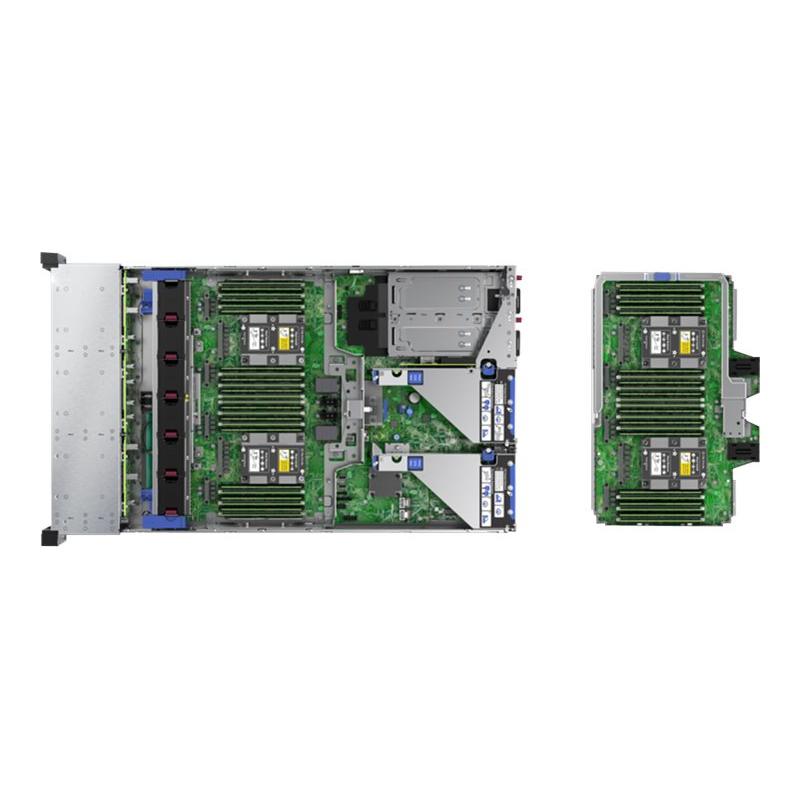

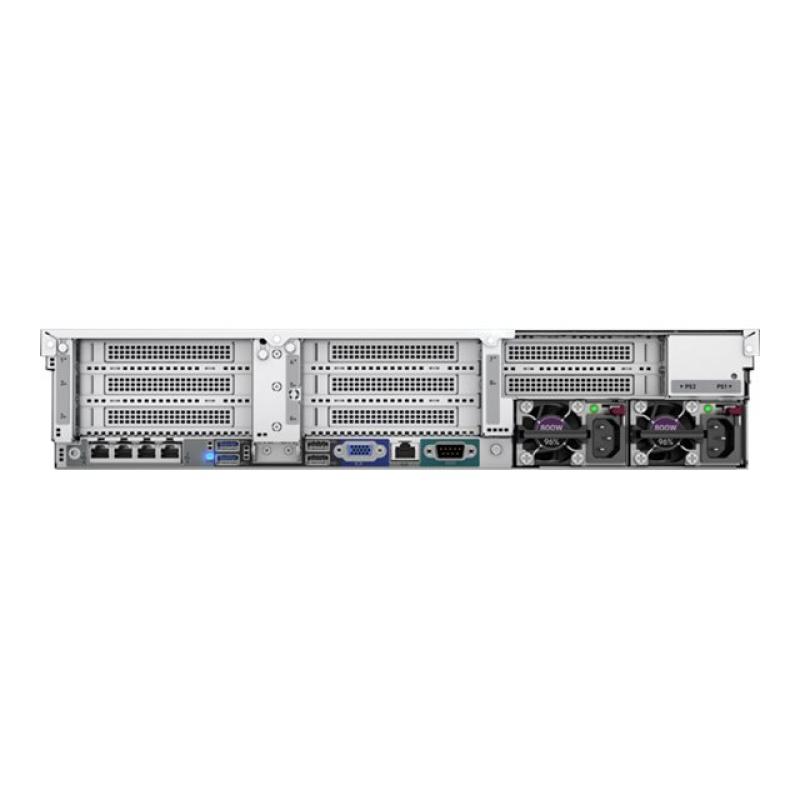

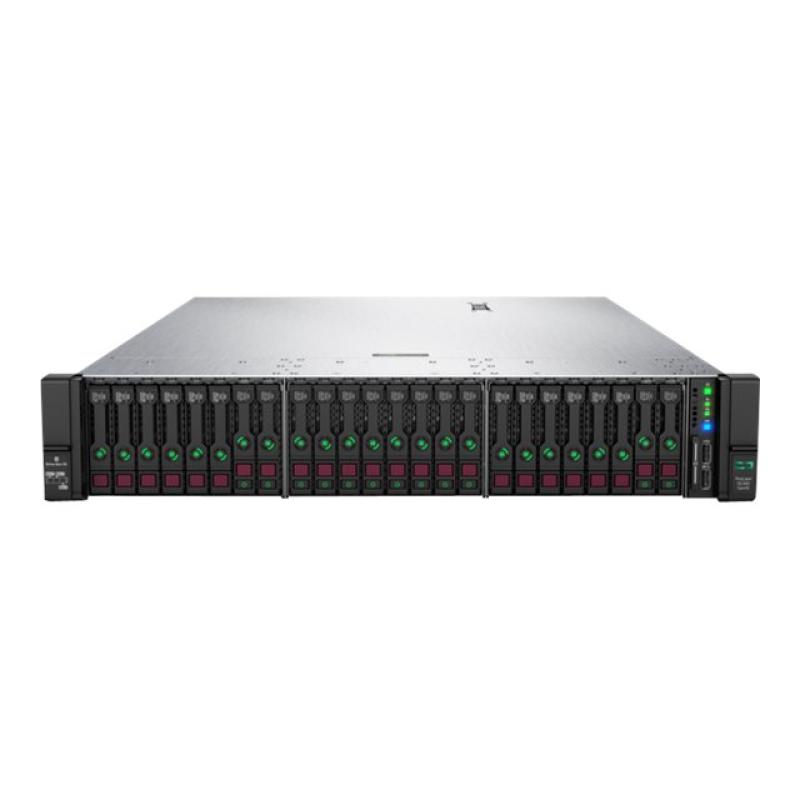

HPE ProLiant DL560 Gen10 Server P02875-B21 P02875B21 (P02875-B21) (P02875B21)
HPE ProLiant DL560 Gen10 Server P02875-B21 P02875B21 (P02875-B21) (P02875B21)

HPE ProLiant DL560 Gen10 Server P02875-B21 P02875B21 (P02875-B21) (P02875B21)

HPE ProLiant DL560 Gen10 Performance - Server - rack-mountable - 2U - 4-way - 4 x Xeon Platinum 8268 / 2.9 GHz - RAM 512 GB - SATA/SAS - hot-swap 2.5" bay(s) - no HDD - GigE, 10 GigE - monitor: none

Qty:

Category (Server & Storage)
Server & Storage
Servers
OEM
P02875-B21
EAN
0190017272511
SKU
129836 (129836)
Manufacturer
HP Enterprise
Type
Server
Customs tariff number
84715000
UNSPSC
43211501
eClass
19-01-01-03
eClass V7
19-01-04-90
Processor
Xeon Platinum
Operating systems
Red Hat Linux
Main memory
32GB
Rack height units
2

The HPE ProLiant DL560 Gen10 server is a high-density, 4P server with high performance, scalability and reliability.

  • Scalable performance
    The HPE ProLiant DL560 Gen10 server provides 4P computing in a dense 2U form factor. HPE's intelligent system Tuning optimizes workload performance using customized profiles to tune internal resources; with improved throughput for all workloads including latency-sensitive workloads such as high-frequency trading with jitter smoothing.
  • Secure and reliable
    HPE offers servers with major firmware anchored directly into the silicon. Security protection is built-in across the server lifecycle.

General
Type
Server
Product Form Factor
Rack-mountable - 2U
Server Scalability
4-way
Hot-Swap Bays Qty
16
Localisation
Region: Worldwide
Processor / Chipset
CPU
Intel Xeon Platinum 8268 / 2.9 GHz
Max Turbo Speed
3.9 GHz
Number of Cores
24-core
CPU Qty
4
Max CPU Qty
4
CPU Upgradability
Upgradable
Processor Main Features
Hyper-Threading Technology, Intel Turbo Boost Technology 2
CPU Socket
FCLGA3647 Socket
Chipset Type
Intel C621
Cache Memory
Installed Size
L3 Cache - 143 MB
Cache Per Processor
35.75 MB
RAM
Installed Size
512 GB / 1.5 TB (max)
Technology
DDR4 SDRAM
Effective Memory Speed
2933 MHz
Rated Memory Speed
2933 MHz
Form Factor
DIMM 288-pin
Slots
48 (Total) / 32 (empty)
Features
Registered, HP SmartMemory, 6-channel memory architecture, slots 25 - 48 are available in four-processor configuration only
Configuration Features
16 x 32 GB
RAM Supported
1.5 TB registered ¦ 3 TB Load-Reduced
Hard Drive
Type
No HDD
Storage Controller
Type
1 x RAID
Controller Interface Type
SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name
HPE Smart Array P816i-a SR Software
Channel Qty
16
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
Buffer Size
4 GB
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Video Memory
16 MB
Video Interfaces
VGA
Networking
Ethernet Ports
2 x 10 Gigabit Ethernet
Ethernet Controller
HPE 640FLR
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Features
Wake on LAN (WoL), PXE support
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Expansion / Connectivity
Bays
1 (total) / 1 (free) x external ¦ 16 (total) / 16 (free) x hot-swap 2.5" SFF
Slots
1 (total) / 1 (free) x PCIe 3.0 x16 - three-quarter-length, full-height ¦ 2 (total) / 2 (free) x PCIe 3.0 x8 - three-quarter-length, full-height ¦ 2 (total) / 2 (free) x M.2 Card ¦ 1 (total) / 1 (free) x microSD Card (internal)
Interfaces
1 x VGA ¦ 1 x serial ¦ 2 x LAN (25Gigabit Ethernet) (SFP28) ¦ 1 x HPE iLO - RJ-45 ¦ 1 x HPE iLO (1 in front) ¦ 2 x USB 2.0 ¦ 5 x USB 3.0 (1 front, 2 rear, 2 internal)
Miscellaneous
Included Accessories
Cable management arm, HPE Easy Install Rails, 6 x redundant hot plug fans
Compliant Standards
WEEE, ACPI 6.1
Power
Device Type
Power supply - hot-plug
Power Redundancy
Yes
Installed Qty
2
Max Supported Qty
2
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
1600 Watt
Operating System / Software
OS Certified
Microsoft Windows Server 2012 R2, SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, VMware ESXi 6.5, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, SuSE Linux Enterprise Server 12 SP2, VMware ESXi 6.0 update 3, CentOS 6.9, CentOS 7.3
Manufacturer Warranty
Service & Support
Limited warranty - parts and labour - 3 years - on-site - response time: next business day
Dimensions & Weight
Width
44.54 cm
Depth
75.47 cm
Height
8.75 cm
Weight
18.45 kg
Environmental Parameters
Min Operating Temperature
10 °C
Max Operating Temperature
35 °C
Humidity Range Operating
8 - 90% (non-condensing)
