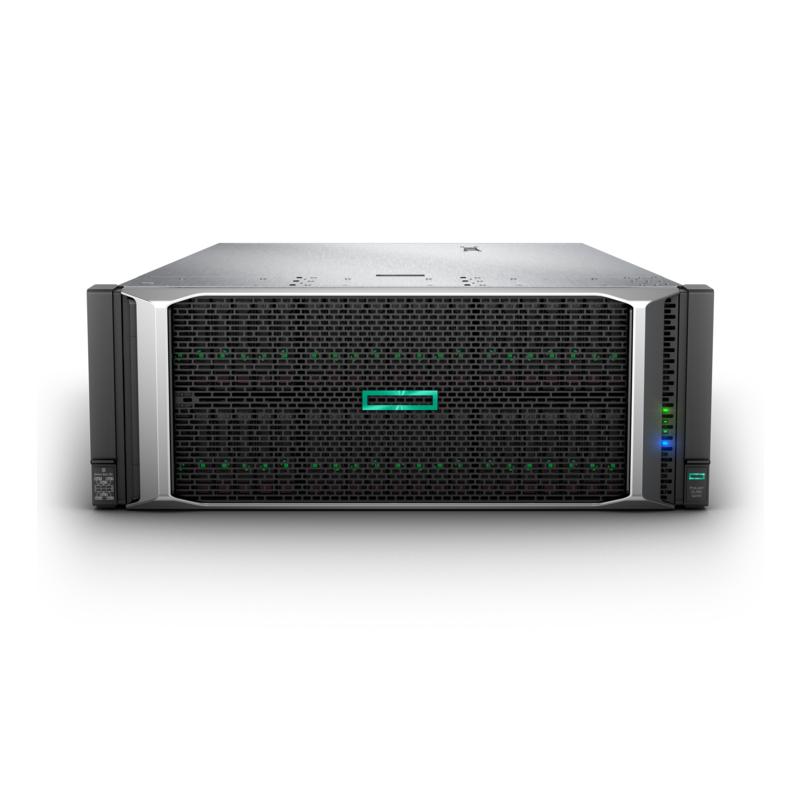

HPE ProLiant DL580 Gen10 Server P05671-B21 P05671B21 (P05671-B21) (P05671B21)
HPE ProLiant DL580 Gen10 Server P05671-B21 P05671B21 (P05671-B21) (P05671B21)
HPE ProLiant DL580 Gen10 Server P05671-B21 P05671B21 (P05671-B21) (P05671B21)
HPE ProLiant DL580 Gen10 Server P05671-B21 P05671B21 (P05671-B21) (P05671B21)
HPE ProLiant DL580 Gen10 Server P05671-B21 P05671B21 (P05671-B21) (P05671B21)
HPE ProLiant DL580 Gen10 Server P05671-B21 P05671B21 (P05671-B21) (P05671B21)

HPE ProLiant DL580 Gen10 Server P05671-B21 P05671B21 (P05671-B21) (P05671B21)

HPE ProLiant DL580 Gen10 Performance - Server - rack-mountable - 4U - 4-way - 4 x Xeon Platinum 8260 / 2.4 GHz - RAM 512 GB - SAS - hot-swap 2.5" bay(s) - no HDD - 10 GigE, 25 Gigabit LAN - monitor: none

Qty:

Category (Server & Storage)
Server & Storage
Servers
OEM
P05671-B21
EAN
0190017291215
SKU
129841 (129841)
Manufacturer
HP Enterprise
Type
Server
Customs tariff number
84715000
UNSPSC
43211501
eClass
19-01-01-03
eClass V7
19-01-04-90
Processor
Xeon Platinum
Operating systems
Other Operating systems
Main memory
32GB
Rack height units
4

Looking for a highly scalable, workhorse server to address your database, storage, and graphics intensive applications? The HPE ProLiant DL580 Gen10 server is a secure, highly expandable, 4P server with high-performance, scalability and availability in a 4U chassis. The HPE ProLiant DL580 Gen10 server delivers greater processing power and is the ideal server for business-critical workloads and general 4P data-intensive applications where the right performance is paramount.

  • Scalable performance in an expandable form factor
    The completely redesigned HPE ProLiant DL580 Gen10 server provides 4P computing in an expandable 4U form factor.
  • Remarkable expandability and availability for multiple workloads
    The HPE ProLiant DL580 Gen10 server has a flexible processor tray allowing it to scale up from one to four processors as needed, saving on upfront costs and the flexible drive cage design.
  • Secure and reliable
    Secure recovery allows server firmware to roll back to the last known good state or factory settings after detection of compromised code.

General
Type
Server
Product Form Factor
Rack-mountable - 4U
Server Scalability
4-way
Hot-Swap Bays Qty
8
Processor / Chipset
CPU
Intel Xeon Platinum 8260
Clock Speed
2.4 GHz
Max Turbo Speed
3.9 GHz
Number of Cores
24-core
CPU Qty
4
Max CPU Qty
4
CPU Upgradability
Upgradable
Processor Main Features
Hyper-Threading Technology, Intel Turbo Boost Technology 2
CPU Socket
FCLGA3647 Socket
Chipset Type
Intel C621
Cache Memory
Installed Size
L3 Cache - 143 MB
Cache Per Processor
35.75 MB
RAM
Installed Size
512 GB / 1.5 TB (max)
Technology
DDR4 SDRAM - ECC
Effective Memory Speed
2933 MHz
Rated Memory Speed
2933 MHz
Memory Specification Compliance
PC4-23466
Form Factor
DIMM 288-pin
Slots
48 (Total) / 32 (empty)
Features
Registered, HPE SmartMemory
Configuration Features
16 x 32 GB
RAM Supported
1.5 TB registered - ECC ¦ 6 TB Load-Reduced - ECC
Hard Drive
Type
No HDD
Storage Controller
Type
1 x RAID - PCIe 3.0 x8
Controller Interface Type
SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name
Smart Array P408i-p with 2GB FBWC
Channel Qty
8
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, 1ADM, 10ADM
Buffer Size
2 GB
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Video Memory
16 MB
Video Interfaces
VGA
Networking
Interface (Bus) Type
PCI Express 3.0 x8
Ethernet Ports
2 x 10/25 Gigabit Ethernet SFP28
Ethernet Controller
HP 640FLR
Data Link Protocol
10 Gigabit Ethernet, 25 Gigabit Ethernet
Remote Management Controller
Integrated Lights-Out 5
Features
Wake on LAN (WoL), ACPI support, PXE support
Compliant Standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3AS
Expansion / Connectivity
Bays
8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots
4 (total) / 4 (free) x PCIe 3.0 x16 - full-length, full-height ¦ 1 (total) / 0 (free) x FlexibleLOM ¦ 1 (total) / 1 (free) x microSD Card ¦ 4 (total) / 4 (free) x PCIe 3.0 x8 - full-length, full-height ¦ 2 (total) / 2 (free) x PCIe 3.0 x16 - three-quarter-length, full-height ¦ 6 (total) / 6 (free) x PCIe 3.0 x8 - three-quarter-length, full-height
Interfaces
1 x serial ¦ 1 x VGA ¦ 1 x HPE iLO - RJ-45 ¦ 2 x USB 2.0 ¦ 2 x LAN (25Gigabit Ethernet) (SFP28) ¦ 5 x USB 3.0 (1 front, 2 rear, 2 internal) ¦ 1 x HPE iLO (1 in front)
Miscellaneous
Included Accessories
Rack rail kit, cable management arm
Compliant Standards
AES, FIPS 140-2, WEEE, ACPI 6.1
Power
Device Type
Power supply - hot-plug
Power Redundancy
Yes
Installed Qty
4
Max Supported Qty
4
Voltage Required
AC 200/240 V (50/60 Hz)
Power Provided
1600 Watt
80 PLUS Certification
80 PLUS Platinum
Efficiency
94%
Operating System / Software
Software
HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download)
Manufacturer Warranty
Service & Support
Limited warranty - parts and labour - 3 years - on-site - response time: next business day
Dimensions & Weight
Width
44.55 cm
Depth
75.18 cm
Height
17.48 cm
Weight
28.12 kg
Environmental Parameters
Min Operating Temperature
10 °C
Max Operating Temperature
35 °C
Humidity Range Operating
10 - 90% (non-condensing)
