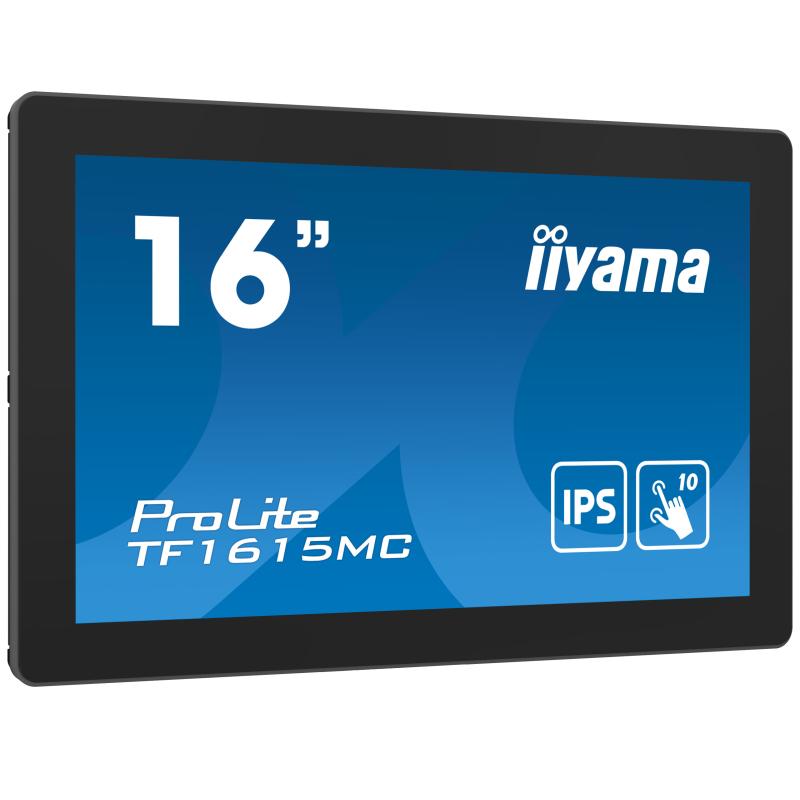

iiyama ProLite TF1615MC-B1 - LED monitor - 15.6" - open frame - touchscreen - 1920 x 1080 Full HD (1080p) - IPS - 450 cd/m² - 1000:1 - 25 ms - HDMI, VGA, DisplayPort - black

Qty:

Category (TFTs)
Displays & Projectors
Flat Screens
OEM
TF1615MC-B1
EAN
4948570121793
SKU
141774 (141774)
Manufacturer
iiyama
Type
Flat Screen
Color
Black
Customs tariff number
85285291
UNSPSC
43211902
eClass
19-02-01-02
eClass V7
19-14-03-02
Energy efficiency class
E
Picture diagonal (inch)
15"
Weight
3kg

  • Touch technology - capacitive
    This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
  • IPS
    IPS displays are best known for wide viewing angles and natural, highly accurate colors. They are especially suited for color-critical applications.
  • AG coating
    The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting color reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.
  • Speakers
    This LED monitor is equipped with two high quality stereo speakers.
  • VESA
    VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.

General
Display Type
LED-backlit LCD monitor / TFT active matrix
Energy Class
Class E
Diagonal Size
15.6"
Panel Type
IPS
Aspect Ratio
16:9
Native Resolution
Full HD (1080p) 1920 x 1080
Pixel Pitch
0.17925 mm
Brightness
450 cd/m²
Brightness w/touchscreen
405 cd/m²
Contrast Ratio
1000:1
Response Time
25 ms (black-to-black)
Horizontal Refresh Rate
31.5 - 67.5 kHz
Horizontal Viewing Angle
+89 / -89
Vertical Viewing Angle
+89 / -89
Screen Coating
7H Hard Coating
Backlight Technology
LED backlight
OSD Languages
English, German, French, Italian, Spanish, Japanese, Chinese
Features
HDCP, 10-point multi-touch, Projected Capacitive Touch (P-CAP) technology, landscape mode, portrait mode, Face Up mode, 6 mm through-glass, anti-fingerprint (AF) coating, OSD key lock, touch through-glass, foam seal
Colour
Black
Dimensions (WxDxH)
39.85 cm x 4.2 cm x 24.6 cm
Weight
2.5 kg
Input
Type
Touch-screen - touchscreen
Movement Detection Technology
Projected capacitive
Connectivity
Interfaces
DisplayPort ¦ HDMI ¦ VGA ¦ Audio line-out (mini-jack)
Mechanical
VESA Mounting Interface
100 x 100 mm, VESA
Miscellaneous
Features
90% light transmittance
Included Accessories
Power adapter, external control pad
Cables Included
1 x HDMI cable ¦ 1 x DisplayPort cable ¦ 1 x USB cable ¦ 1 x power cable
Mounting Kit
Included
MTBF
50,000 hours
Compliant Standards
Plug and Play, DDC-2B, UL 60950, RoHS, WEEE, cULus, REACH, ERP, EAC, REACH SvHC, IP65 front, UKCA
Power
Power Consumption (Typical)
18 Watt
Power Consumption Stand by
1.5 Watt
Power Consumption (Off Mode)
0.3 Watt
Dimensions & Weight (Shipping)
Shipping Width
47 cm
Shipping Depth
34.3 cm
Shipping Height
14.5 cm
Shipping Weight
4.3 kg
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
