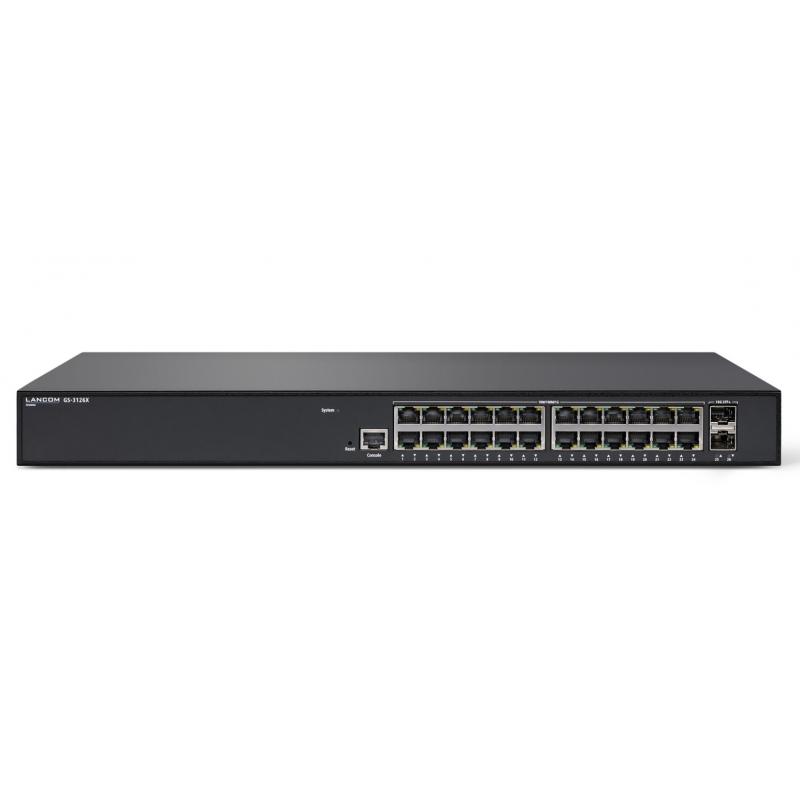

LANCOM GS-3126X - Switch - L3 Lite - Managed - 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ (uplink) - rack-mountable

Qty:
View data sheet
Add to comparison list
Category (Netzwerktechnik)
Network Equipment
Network Equipment
OEM
61847
EAN
4044144618475
SKU
lanne000050 (118970)
Manufacturer
LANCOM
Master carton
1.0000
Type
Switch
Customs tariff number
85176200
UNSPSC
43222612
eClass
19-03-01-17
eClass V7
19-17-01-06
Dimensions (Girth)
540 x 470 x 985 (3450)
Type
Switch
Amount of ports
24
Transmission rate
1Gbps

In networking scenarios that require top performance at maximum cost efficiency, the LANCOM GS-3126X meets every demand for optimal price-performance ratio. 24 Gigabit Ethernet downlink ports paired with high-capacity 10G fiber (SFP+) uplink ports and basic layer-3 functions such as static routing and DHCP server provide intelligent management and numerous security functions in multi-component networks. Orchestrated via the LANCOM Management Cloud and SD-LAN, configuration is dynamic, automated, and efficient.

  • High performance on 26 ports
    The LANCOM GS-3126X is equipped with 24 Gigabit Ethernet ports and 2 SFP+ uplink ports supporting transfer rates of up to 10 Gbps. In addition, with a data throughput of 88 Gbps on the backplane, it offers full performance even at high workload. This makes the access switch the powerful foundation for modern network infrastructures in all industries and applications.
  • Static routing for fast data exchange
    The LANCOM GS-3126X supports the basic layer-3 feature static routing and thus the shift of certain routing tasks from the router to the switch. Administrator-predefined network routes, through one or multiple network segments, enable fast data transfer especially in scenarios with high data volumes and relieve the router accordingly. Newly available router capacities can then additionally be used to manage external data traffic. As a result, the entire network efficiency is increased.
  • DHCP server functionality
    As a DHCP server, the switch is able to independently and automatically assign IP addresses to clients. The LANCOM GS-3126X supports this basic layer-3 function and thus takes over the IP management of the connected network.
  • Configurable access control
    The LANCOM GS-3126X excludes rogue clients from gaining unauthorized access to the network. This is ensured by secured access control on all ports as per IEEE 802.1X (port-based, single-based, multi-based, and MAC-based).
  • Secure remote management
    Secure communication protocols such as SSH, SSL, and SNMPv3 make the LANCOM GS-3126X ideal for professional remote network management. The switch also supports the TACACS+ protocol for authentication, authorization, and accounting. This optimized solution promises maximum security for multi-site network management and monitoring.
  • SD-LAN - days become minutes
    The LANCOM GS-3126X offers fast and easy network integration and automatic configuration assignment with the LANCOM Management Cloud - without manual configuration. In this way, even complex networking scenarios are easy to administer. SD-LAN eliminates the need for a single device configuration for holistic network orchestration. In addition, automatic VLAN assignment to the desired switch ports is possible. The configu­rations can be coordinated with each other across locations and network architectures, and at the same time rolled out or updated at the click of a mouse.
  • IPv6 and IPv4 support
    Thanks to its dual-stack implementation, the LANCOM GS-3126X operates in pure IPv4, pure IPv6 or in mixed networks. Applications such as SSL, SSH, Telnet or TFTP can continue to be operated on IPv6 networks. Supported IPv6 features includes stateless auto configuration, neighbor detec­tion, and MLD snooping.

General
Device Type
Switch - 24 ports - L3 Lite - Managed
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 + 2 x 10 Gigabit SFP+ (uplink)
Performance
Throughput: 88 Gbps ¦ Throughput (64-byte packet size): 130 Mpps
Capacity
VLAN tags: 4096 ¦ Active VLANs: 4000 ¦ IGMP multicast groups: 1024
MAC Address Table Size
32K entries
Jumbo Frame Support
10240 bytes
Routing Protocol
IGMPv2, IGMP, static IP routing, IGMPv3, MLD
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SMON, SSH, CLI, ICMP
Encryption Algorithm
MD5, SSL
Authentication Method
Secure Shell (SSH), RADIUS, TACACS+
Features
Flow control, VLAN support, port mirroring, store and forward, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, DHCP server, MLD snooping, reset button, IPv4 support, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, port based access control, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), dual firmware images, Network Access Control (NAC), Class of Service (CoS), tagged VLAN, Generic VLAN Registration Protocol (GVRP), IGMP proxy, cloud managed, metal housing, DiffServ Code Point (DSCP) support, IP source guard, Secure Copy (SCP), Link Aggregation, Management Information Base (MIB) II, IGMP querier, VLAN Double Tagging (Q-in-Q), Voice VLAN, LLDP-MED, Guest VLAN
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.3az
Status Indicators
System, link/activity/speed
Expansion / Connectivity
Interfaces
24 x 1000Base-T RJ-45 ¦ 2 x 10Gbit LAN SFP+ uplink ¦ 1 x console RJ-45
Power
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
30 Watt
Miscellaneous
Cables Included
1 x serial cable - 1.5 m
Rack Mounting Kit
Included
Compliant Standards
EN55022, EN55024, EN 60950-1, FCC CFR47 Part 15 A, RFC1213, RFC1493, RFC2674, RFC2460
Dimensions & Weight
Width
44.2 cm
Depth
21.1 cm
Height
4.4 cm
Weight
2.7 kg
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
