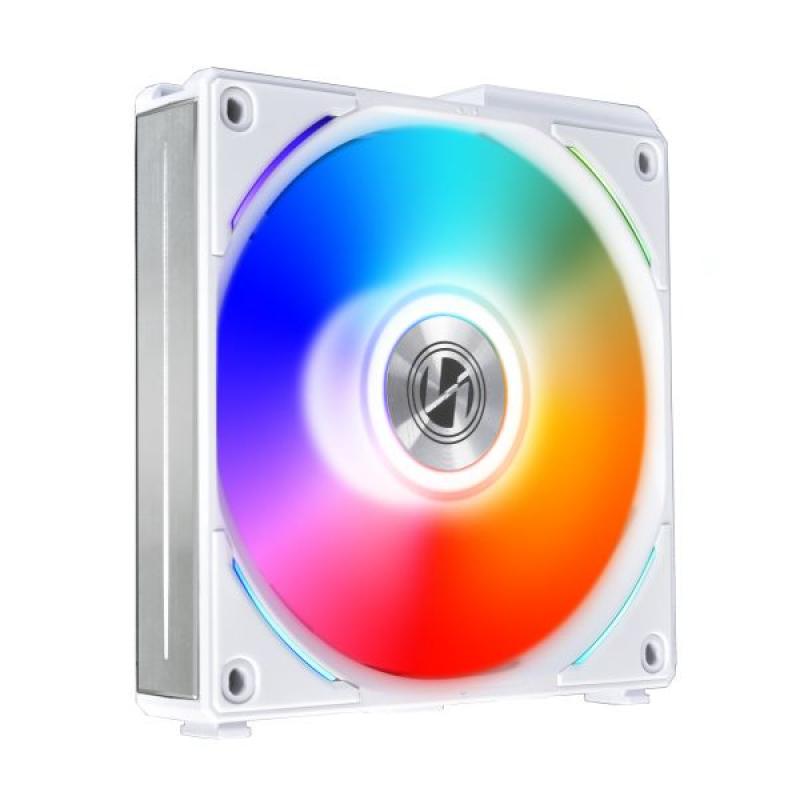

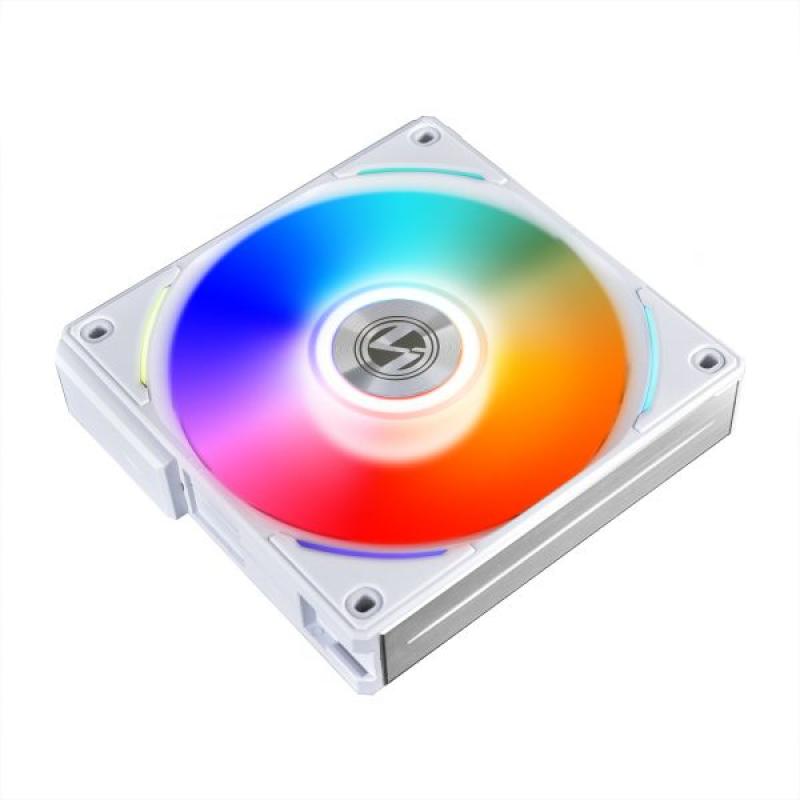

Lian Li Uni Fan AL. Type: Fan, Fan diameter: 12 cm, Rotational speed (min): 800 RPM, Rotational speed (max): 1900 RPM, Maximum air pressure: 2.62 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Width: 120 mm, Depth: 120 mm, Height: 25 mm. Product colour: White
MODULARITY FAN

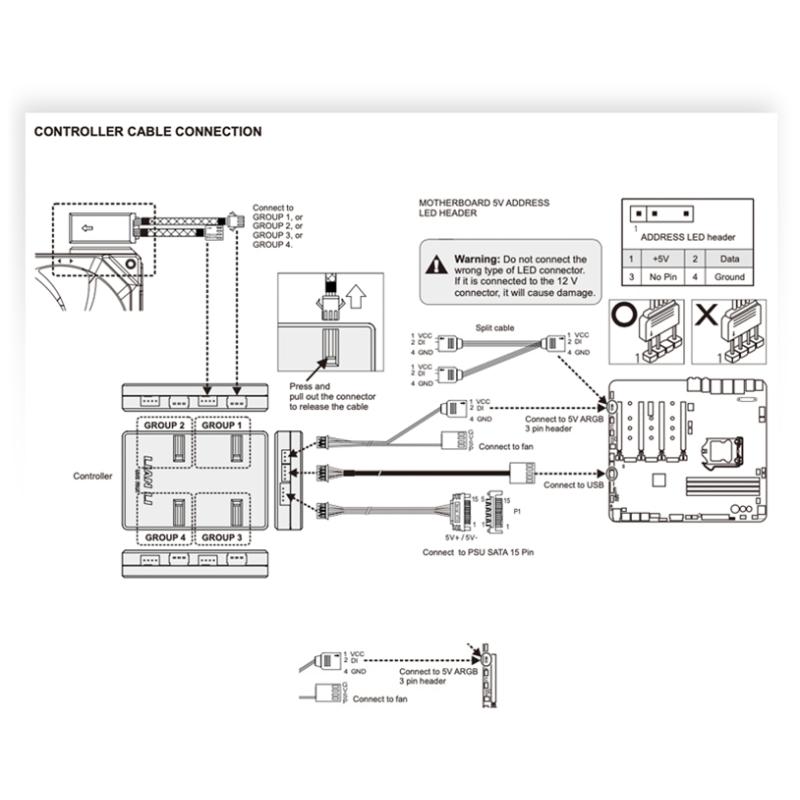

Simply daisy chain the fans together with the slide-in interlocking system to pass the signals through the pin-to-pad contact. Users can choose to go with a single fan or link up to 4 fans in a group, and operate each group with just 2 cables.
BETTER PERFORMANCE
Compared to UNI FAN SL120, AL120 has better performance in air flow(64.5 CFM), noise levels(17 ~ 28.3 dB) and static pressure(2.62 mmH2O).
ENDLESS LIGHTING EFFECT COMBINATIONS
The ARGB LEDs are located at the inner fan blade and the four corner edges of the fan frame.
Users can set both the fan blade lighting effects and the fan frame inner edge lighting effects separately, or go with the built-in combined lighting effects.
L-CONNECT 2 SOFTWARE TO CONTROL AL120
Perfectly control and preview the lighting effect of the AL series with L-Connect 2 interface.
ADJUST THE SPEED OF EACH FAN GROUP
Perfectly control and preview the lighting effect of the AL series with L-Connect 2 interface.
Fan Speed: 800 RPM – 1900 RPM
Users can set the fan speed of each group of UNI FANs manually or set it at PWM to let the motherboard control the speed.
SET PERSONALIZED LED MODE AND COLOR
Designed for AL120, users can choose to set their personalized lighting effect through L-Connect 2. Thousands of combinations can be accomplished.
CONTROL UP TO 16 FANS IN ONE GO

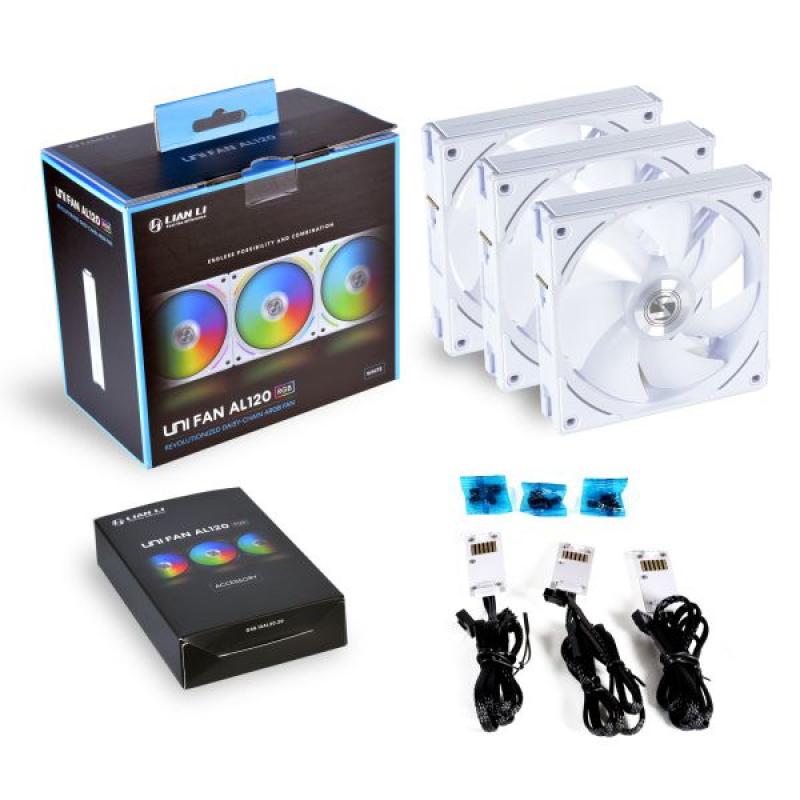

The exclusive controller (UNI HUB) for the AL series that can connect up to 16 fans is included in the 3 pack.
MANAGE UP TO 64 FANS
L-Connect 2 can now manage a maximum of 4 controllers at a time, allowing users to control 64 fans within the software.
DAZZLING AT ALL ANGLES
Brushed aluminum trim with reflecting edges on both sides of the fan frame.
Rear metallic medallion at the center with cables hidden in X-style fan support.
Aesthetic details considered for both intake and outtake mounting in the case.
