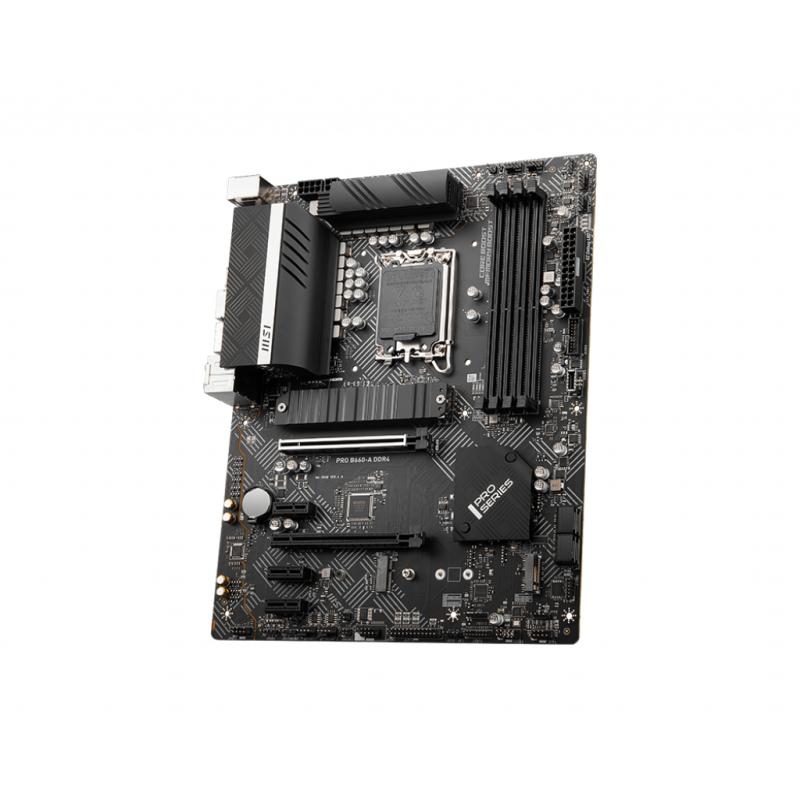

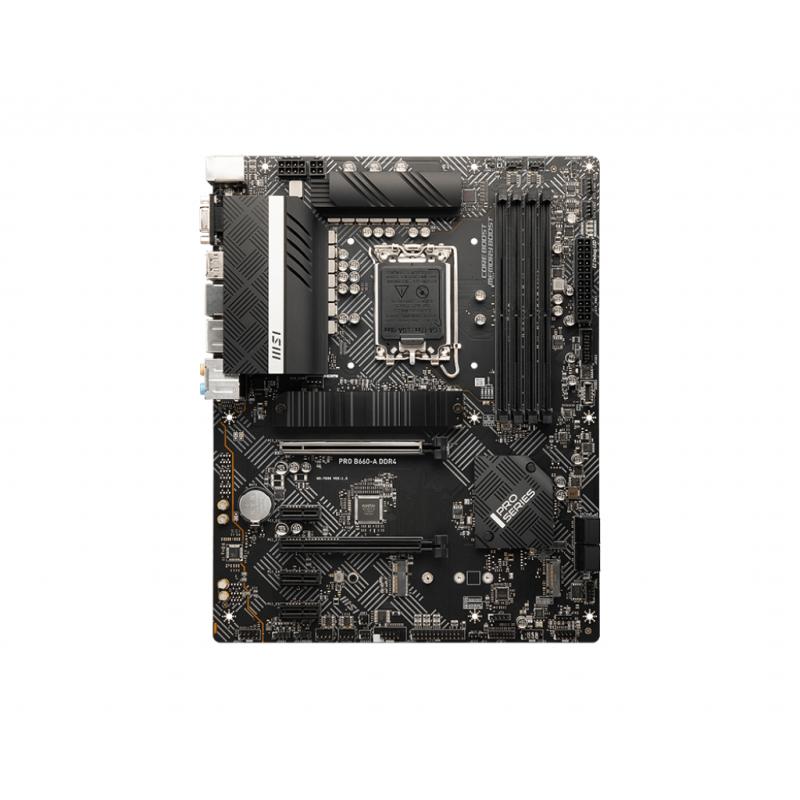

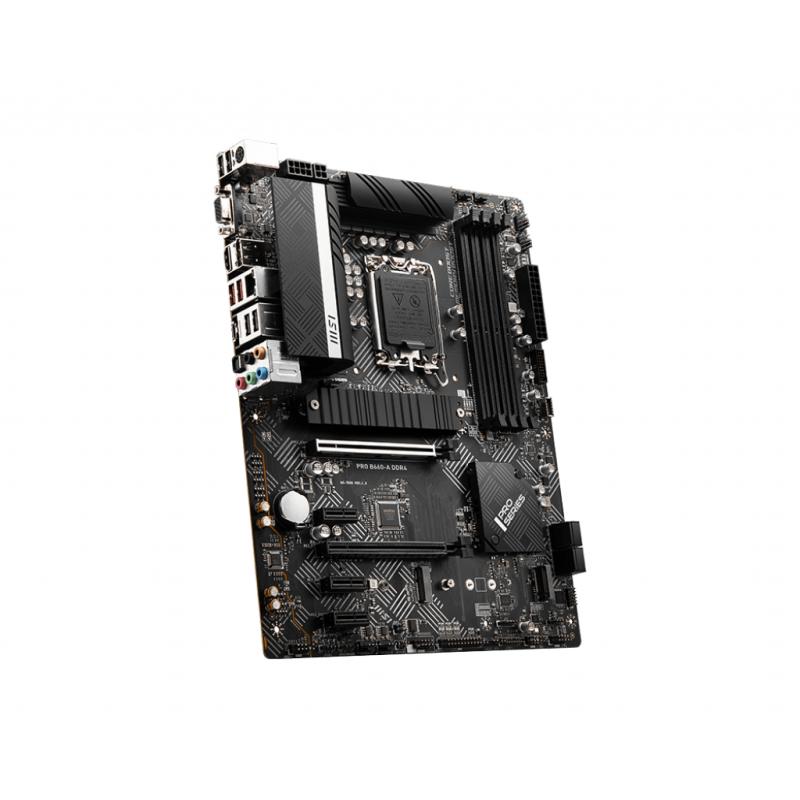

MSI PRO B660-A B660A DDR4 Motherboard ATX (7D59-001R) (7D59001R)
MSI PRO B660-A B660A DDR4 Motherboard ATX (7D59-001R) (7D59001R)

MSI PRO B660-A B660A DDR4 Motherboard ATX (7D59-001R) (7D59001R)

MSI PRO B660-A DDR4 - Motherboard - ATX - LGA1700 Socket - B660 Chipset - USB-C Gen2, USB-C Gen1, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)

Qty:
View data sheet
Add to comparison list
Category (Controller)
PC Components
Motherboards
OEM
7D59-001R
EAN
4719072912451
SKU
137175 (137175)
Manufacturer
MSI
Type
Motherboard
Line
MSI Pro - Series
Color
Gold
UNSPSC
43201513
eClass
19-03-03-03
eClass V7
19-05-08-90
CPU socket type
Intel Sockel 1700 (Core i)
Form factor
ATX
HDD bus standard
SATA
Other features
Crossfire

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

  • M.2 SHIELD FROZR
    World's fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
  • FROZR AI cooling
    Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
  • Fully controllable in BIOS and software
    MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
  • Optimized for water cooling
    Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked 'keep-out-zone' allows for easy and safe installation and a perfect fit.
  • High-bandwidth and low-latency network
    2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
  • Optimize network for lower latency
    MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency.
  • A huge step of DDR performance
    MSI OC LAB does not merely work hard on extreme overclocking. The XMP memory profile has great improvement on performance and efficiency for B660. Easy to enable XMP profile with auto power settings to get the best memory speed and stability.
  • Core Boost
    Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

General
Product Type
Motherboard - ATX
Chipset Type
Intel B660 / Nuvoton NCT6687-R
Processor Socket
LGA1700 Socket
Max Processors Qty
1
Compatible Processors
(supports 12th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size
128 GB
Technology
DDR4
Bus Clock
3600 MHz (O.C.), 4000 MHz (O.C.), 4800 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC897
Compliant Standards
High Definition Audio
LAN
Network Controller
Realtek RTL8125BG
Network Interfaces
2.5 Gigabit Ethernet
Expansion / Connectivity
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 3 x PCIe 3.0 x1 ¦ 1 x M.2 socket (Key E)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 ¦ PCIe 4.0 -connectors: 1 x M.2
RAID Features
Intel Smart Response Technology
Interfaces

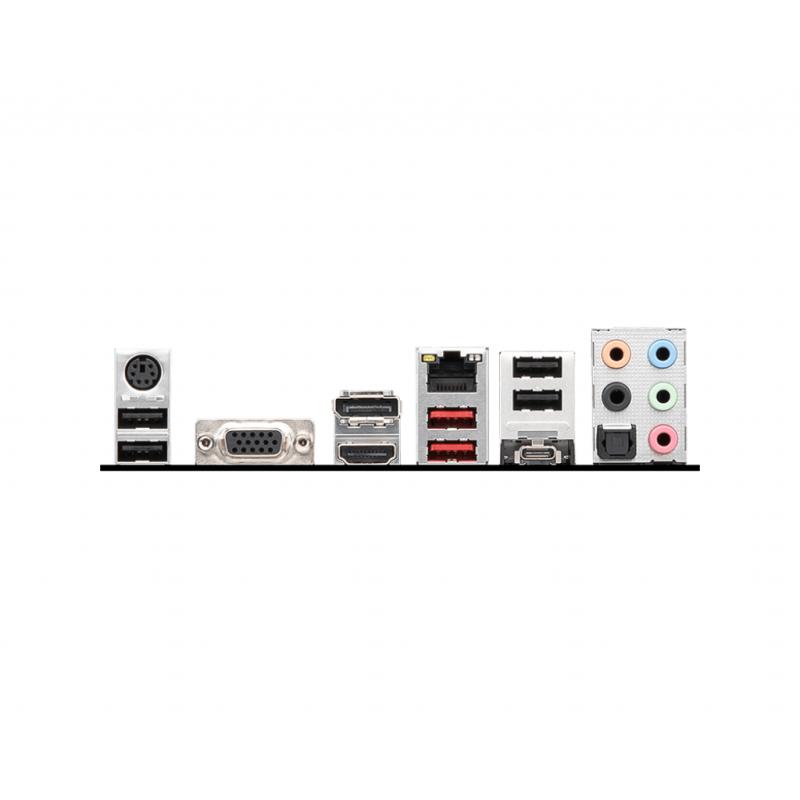

1 x HDMI ¦ 1 x DisplayPort ¦ 2 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen2 ¦ 4 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x TOSLINK ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse ¦ 1 x VGA
Internal Interfaces
2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen 1 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header
Power Connectors
4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Features
MSI ClickBIOS 5
Hardware Monitoring
CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer
Hardware Features
AMD CrossFireX technology support, Debug LED, 6 Layer PCB, MSI Steel Armor, Double ESD Protection, Intel Optane Memory Ready, 2oz Copper PCB, M.2 Shield FROZR, MSI Core Boost, Windows 11 compatible, Surface Mount Technology (SMT)
Miscellaneous
Included Accessories
Case badge, IO shield, m.2 screw / standoff sets, M.2 clip
Cables Included
2 x Serial ATA cable
Software Included
Drivers & Utilities
Width
30.5 cm
Depth
24.4 cm
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
