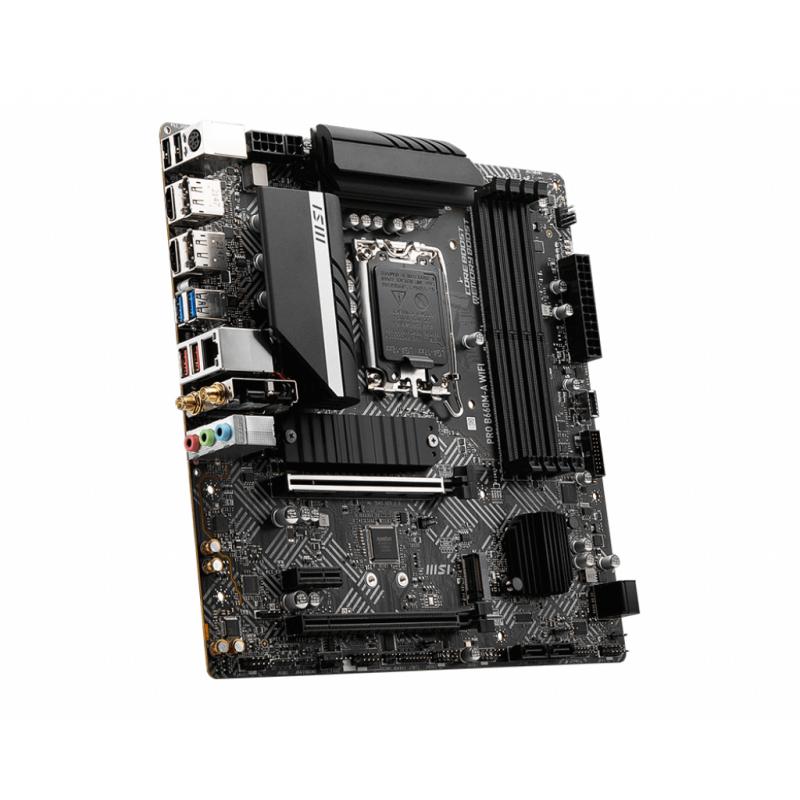

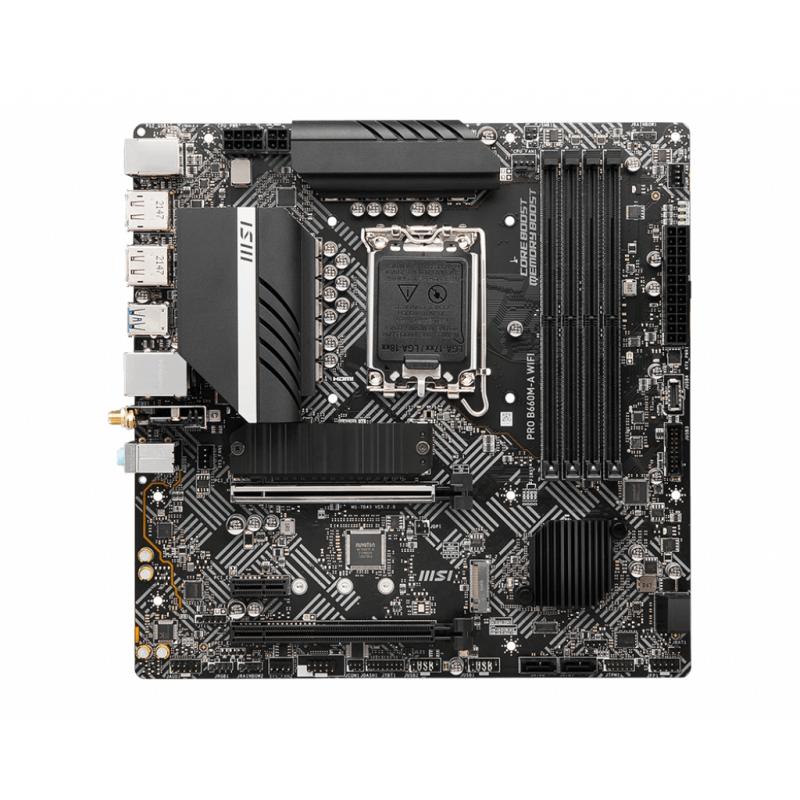

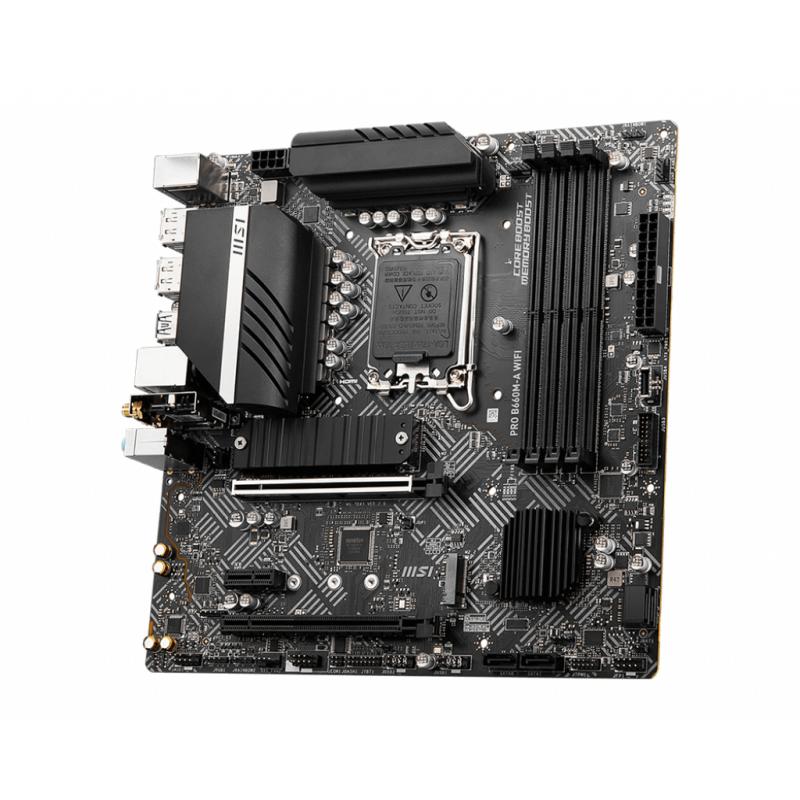

MSI PRO B660M-A WIFI - Motherboard - micro ATX - LGA1700 Socket - B660 Chipset - USB-C Gen1, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)

Qty:

Category (Multifunktionsgeräte)
PC Components
Motherboards
OEM
7D43-006R
EAN
4719072942755
SKU
139399 (139399)
Manufacturer
MSI
Type
Motherboard
Customs tariff number
84733020
UNSPSC
43201513
eClass
19-03-03-03
eClass V7
19-05-08-90
CPU socket type
Intel Sockel 1700 (Core i)
Form factor
Micro/Mini/Flex-ATX
General
Product Type
Motherboard - micro ATX
Chipset Type
Intel B660
Processor Socket
LGA1700 Socket
Max Processors Qty
1
Compatible Processors
(supports 12th Generation Intel Core / Pentium / Celeron)
Supported RAM
Max Size
128 GB
Technology
DDR5
Bus Clock
5200 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC897
Compliant Standards
High Definition Audio
LAN
Network Controller
Realtek RTL8125BG
Network Interfaces
2.5 Gigabit Ethernet
Expansion / Connectivity
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2
RAID Features
Intel Smart Response Technology
Interfaces

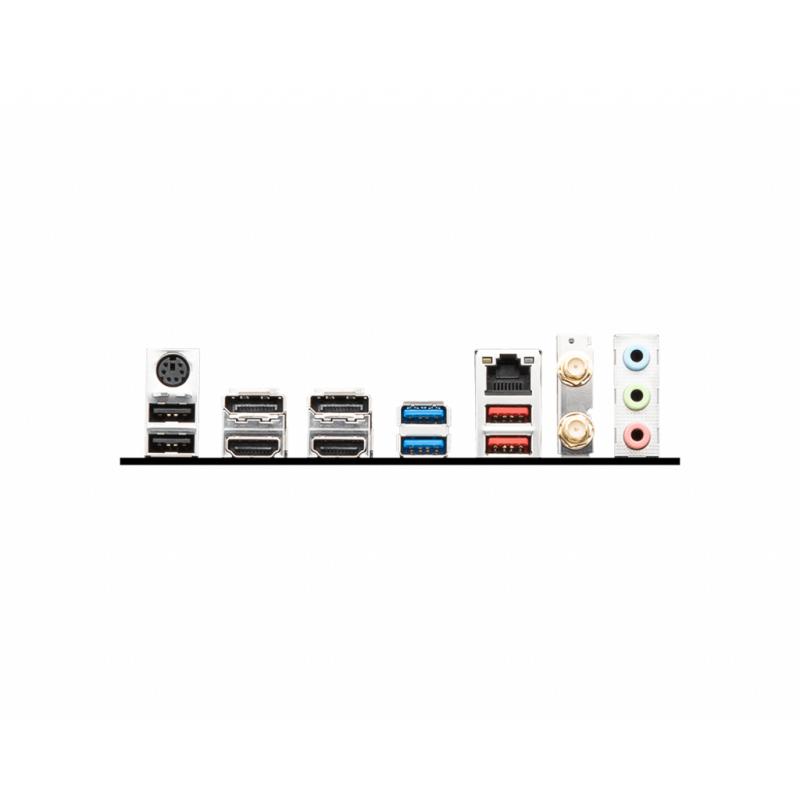

2 x HDMI ¦ 2 x DisplayPort ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 2 x USB 3.2 Gen 2 ¦ 1 x PS/2 keyboard / mouse
Internal Interfaces
4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x USB-C Gen 1 - header ¦ 1 x Thunderbolt - header ¦ 1 x serial - header
Power Connectors
4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Features
MSI ClickBIOS 5
Hardware Features
AMD CrossFireX technology support, MSI Audio Boost, Debug LED, MSI Mystic Light, Intel Optane Memory Ready, M.2 Shield FROZR, MSI Core Boost, NVIDIA Resizable BAR Support
Miscellaneous
Included Accessories
Case badge, 2 x M.2 screws, IO shield, 2 x standoff for M.2 socket, M.2 clip
Cables Included
2 x Serial ATA cable
Software Included
Drivers & Utilities
Compliant Standards
DisplayPort 1.4
Width
24.4 cm
Depth
24.4 cm
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
