PRO series helps users work smart by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
- User-friendly design
MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to amazing heights and satisfy even the demanding tweakers. Makes it so easy to install your own motherboard without any issue. - Fully controllable in BIOS and software
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total fan control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. - FROZR AI cooling
Detecting CPU and GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE. - Connectivity
A very important thing of DIY is expandability. MS PRO series motherboards feature plenty possibility for prosumers' need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility. - Fast and future-ready storage
MSI PRO series motherboards support all the storage standards, which allows users to connect any ultrafast storage device. Higher efficiency makes your work easier. - Lightning Gen 4 PCIe
MSI lightning Gen 4 PCIe is a PCIe data transfer solution with 64 GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards. - Core Boost
With premium layout and digital power design to support more cores and provide better performance. - Audio Boost
Reward your ears with studio-grade sound quality for immersive gaming experience. - Memory Boost
The fully isolated DDR circuit to deliver pure data signals for better gaming and overlocking performance.
General
Product Type

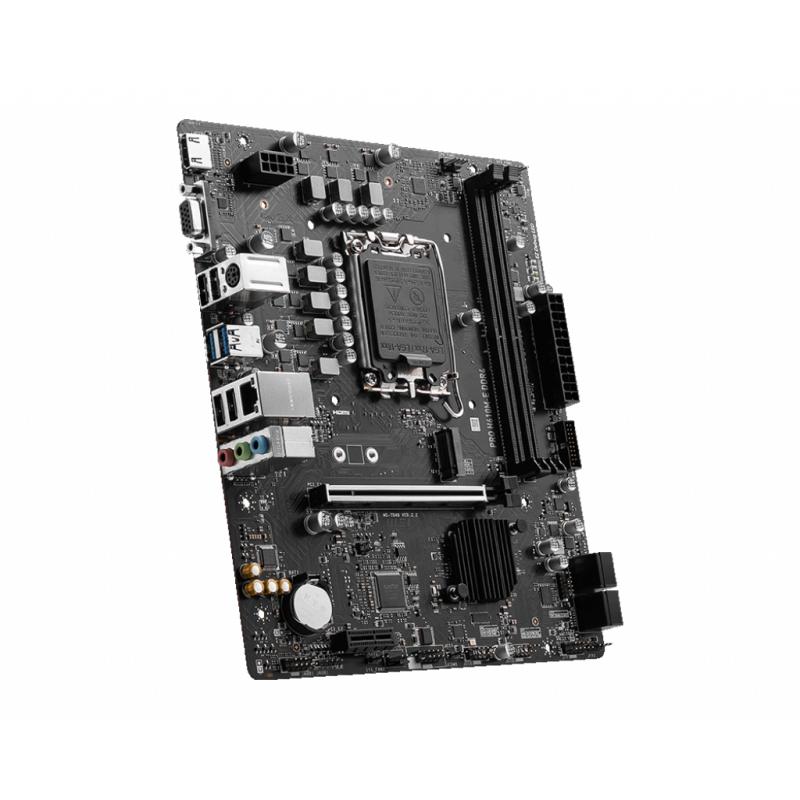

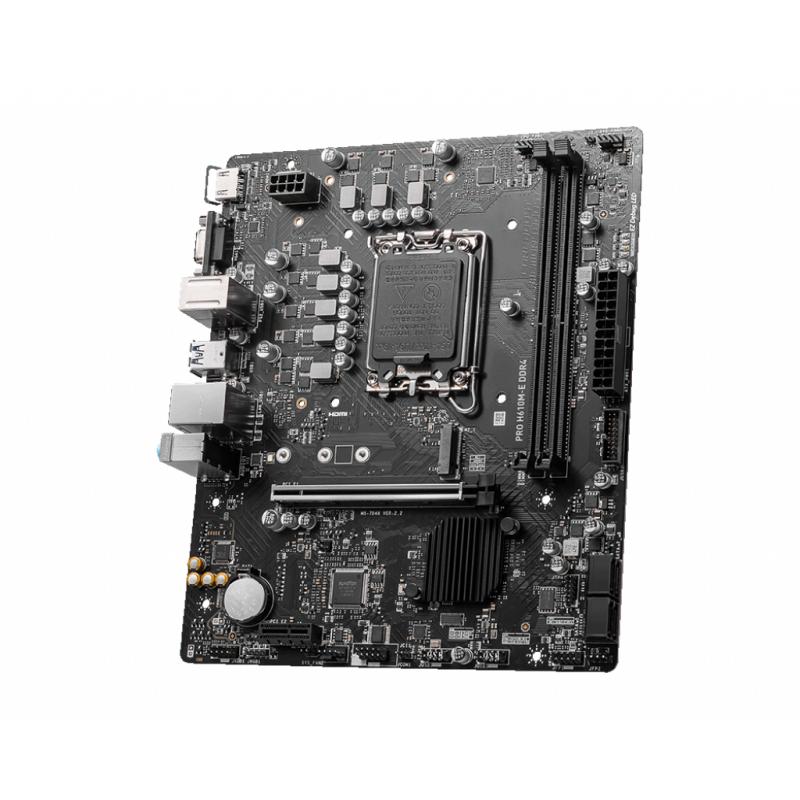

Motherboard - micro ATX
Processor Socket
LGA1700 Socket
Compatible Processors
(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Bus Clock
2133 MHz, 2666 MHz, 3200 MHz
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture
Audio
Audio Codec
Realtek ALC897
Compliant Standards
High Definition Audio
LAN
Network Controller
Realtek RTL8111H
Network Interfaces
Gigabit Ethernet
Expansion / Connectivity
Expansion Slots
1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x PCIe 3.0 x1
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 3.0 -connectors: 1 x M.2

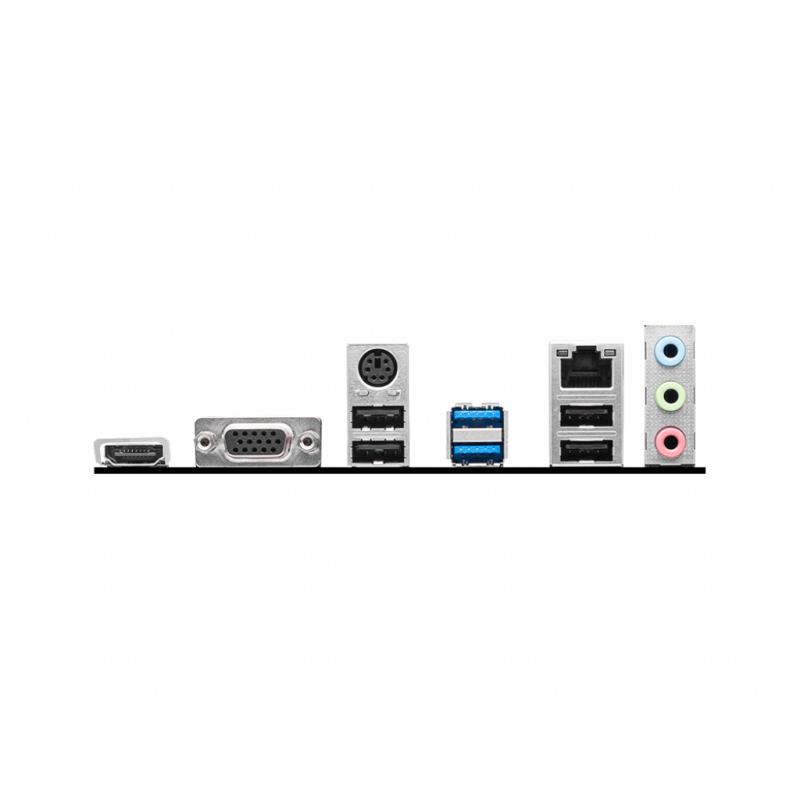

Interfaces
1 x HDMI ¦ 1 x VGA ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 1 x LAN (Gigabit Ethernet)
Internal Interfaces
1 x serial - header ¦ 1 x SPI - header ¦ 1 x audio - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Features
MSI ClickBIOS 5
Hardware Features
MSI Audio Boost, Debug LED, MSI Core Boost, MSI PCIe Steel Slot, MSI Memory Boost
Miscellaneous
Included Accessories
IO shield, M.2 clip
Cables Included
2 x Serial ATA cable
Software Included
MSI Center
Compliant Standards
WEEE, FCC Part 15 Class B, JIS C 0950
