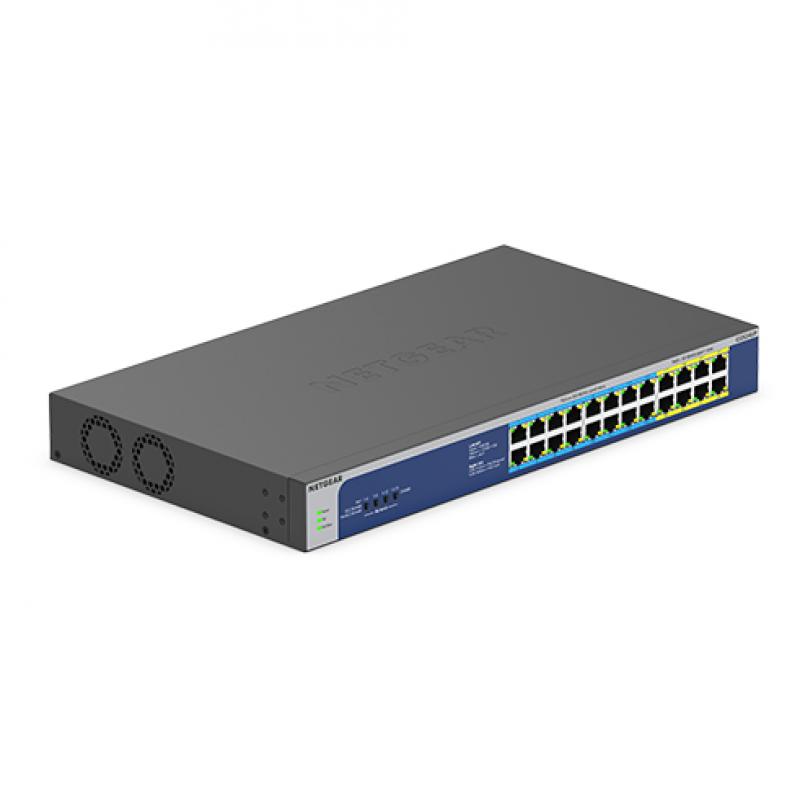

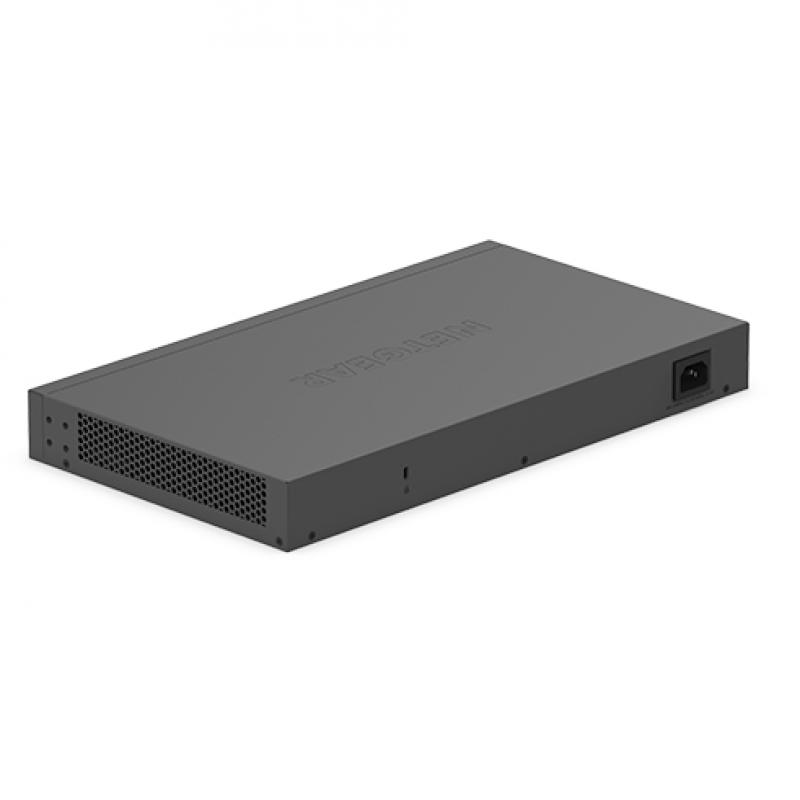

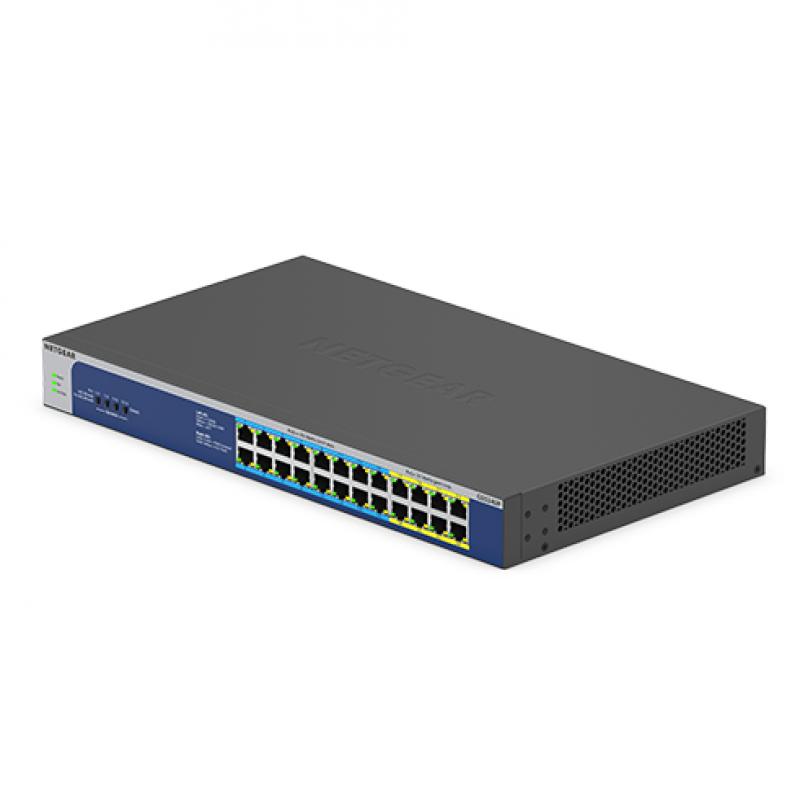

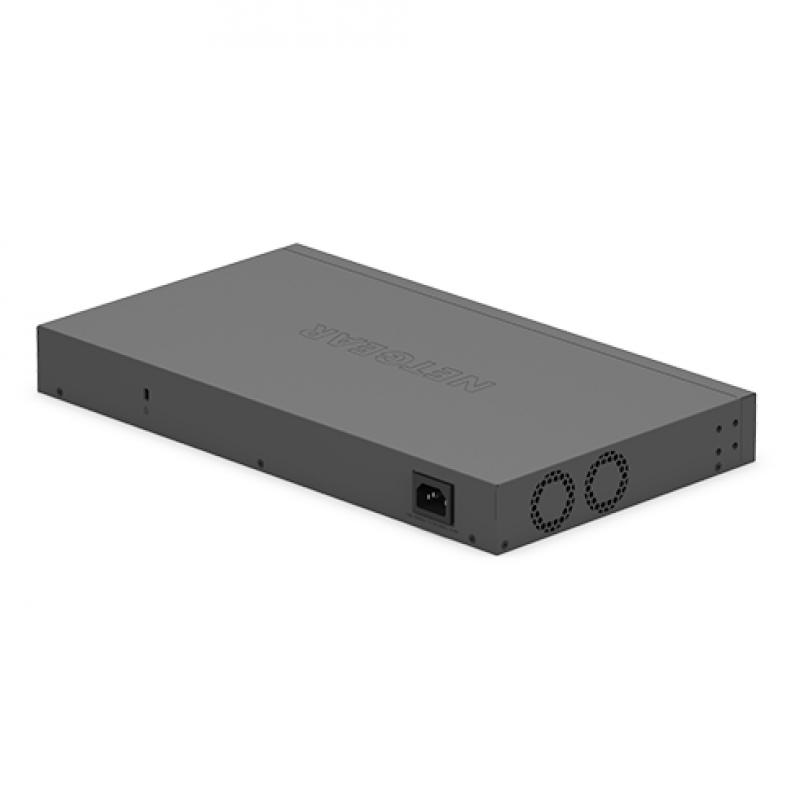

NETGEAR GS524UP - Switch - unmanaged - 8 x 10/100/1000 (PoE+) + 16 x 10/100/1000 (PoE++) - desktop, rack-mountable - PoE++ (480 W) - AC 100 - 230 V

Qty:

Category (Netzwerktechnik)
Network Equipment
Network Equipment
OEM
GS524UP-100EUS
EAN
0606449149777
SKU
netne000138 (110317)
Manufacturer
Netgear
Master carton
3
Type
Switch
Customs tariff number
85176200
UNSPSC
43222612
eClass
19-03-01-17
eClass V7
19-17-01-06
Dimensions (Girth)
470 x 330 x 95 (1320)
Type
Switch
Amount of ports
24
Transmission rate
1Gbps

NETGEAR brings even larger PoE budgets on Unmanaged switches with Ultra60 PoE++ technology with 24-port (GS524UP) Unmanaged Switches, ideal for powerful PoE+/PoE++ installations with impressive PoE budgets up to 380W and 480W, a compact size, plug-and-play installation, and reliable performance at affordable prices.
These switches can support all types of PoE installation with larger PoE budgets and ports that provide PoE+ and PoE++ power for up to 60W per port. Standardized to IEEEE 802.3bt, the Ultra60 PoE++ switches can deliver up to 60W of power per port, allowing the connections of higher power required devices, such as high performance 802.11AX wireless access points, PTZ and 4K IP surveillance cameras, PoE lighting, PoE-powered audio speakers, as well as other high-powered devices. The GS524UP has a PoE mode used to enable pre-802.bt compatibility for pre-bt devices that were created before 802.3bt Standard was ratified.

General
Device Type
Switch - 24 ports - unmanaged
Enclosure Type
Desktop, rack-mountable
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 (PoE+) + 16 x 10/100/1000 (PoE++)
Power Over Ethernet (PoE)
PoE++
PoE Budget
480 W
Performance
Non-blocking switching throughput: 48 Gbps ¦ Forwarding rate (1000Mbps): 1448000 packets per second ¦ Latency (64-byte packets): 12 µs
MAC Address Table Size
8K entries
Jumbo Frame Support
9216 bytes
Features
Auto-negotiation, auto-uplink (auto MDI/MDI-X), 192KB packet buffer, Class of Service (CoS), metal housing, DiffServ Code Point (DSCP) support, 2 fans, Weighted Round Robin (WRR)
Compliant Standards
IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt
Status Indicators
Power, PoE, link/activity, fan
Expansion / Connectivity
Interfaces
24 x 10/100/1000 Base-T RJ-45 16 ports (PoE++)/8 ports (PoE+) - 60 W
Power
Power Device
Internal power supply
Installed Qty
1
Voltage Required
AC 100 - 230 V (50/60 Hz)
Power Consumption Operational
578.8 Watt
Power Consumption Stand by
24.4 Watt
Miscellaneous
Included Accessories
Rubber feet
Rack Mounting Kit
Included
MTBF
809853.3 hours
Compliant Standards
Plug and Play, IEC 60950-1, BSMI CNS 14336-1, IEC 62368-1, EN 62368-1 Second Edition, UL 62368-1, EN60950-1 (2nd Edition), AS/NZS 62368.1
Localisation
Asia Pacific, United Kingdom, Europe
Dimensions & Weight
Width
39 cm
Depth
22 cm
Height
4.3 cm
Weight
3.1 kg
Manufacturer Warranty
Service & Support
Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-20 °C
Max Storage Temperature
70 °C
Humidity Range Storage
10 - 95% (non-condensing)
