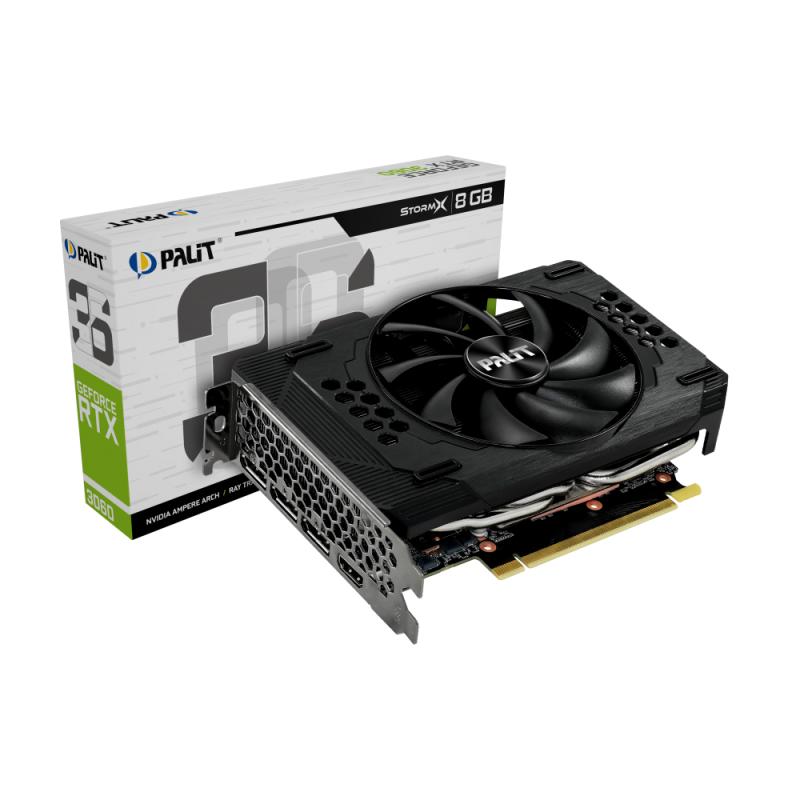

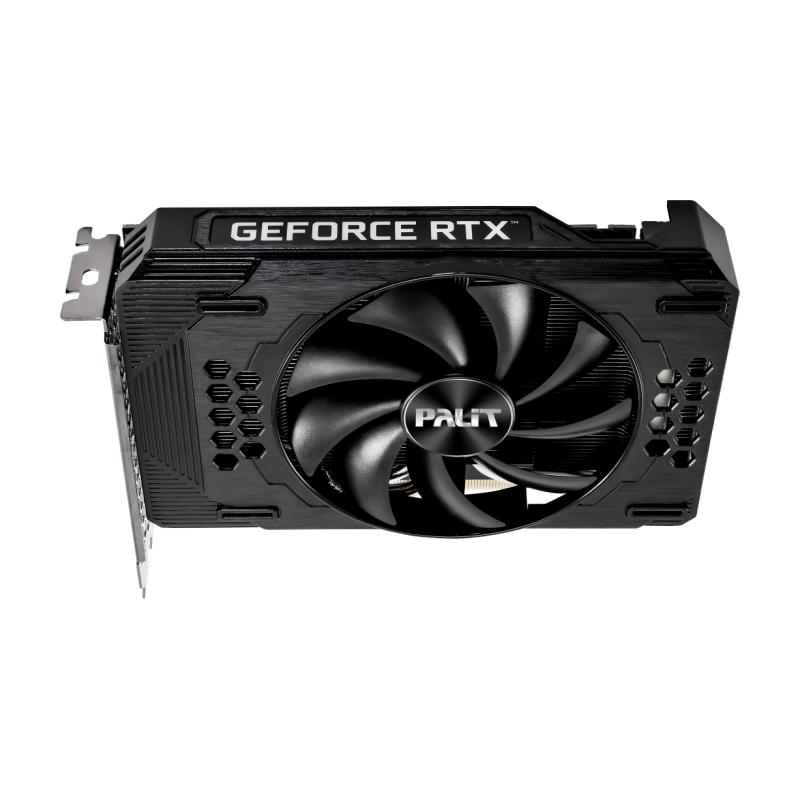

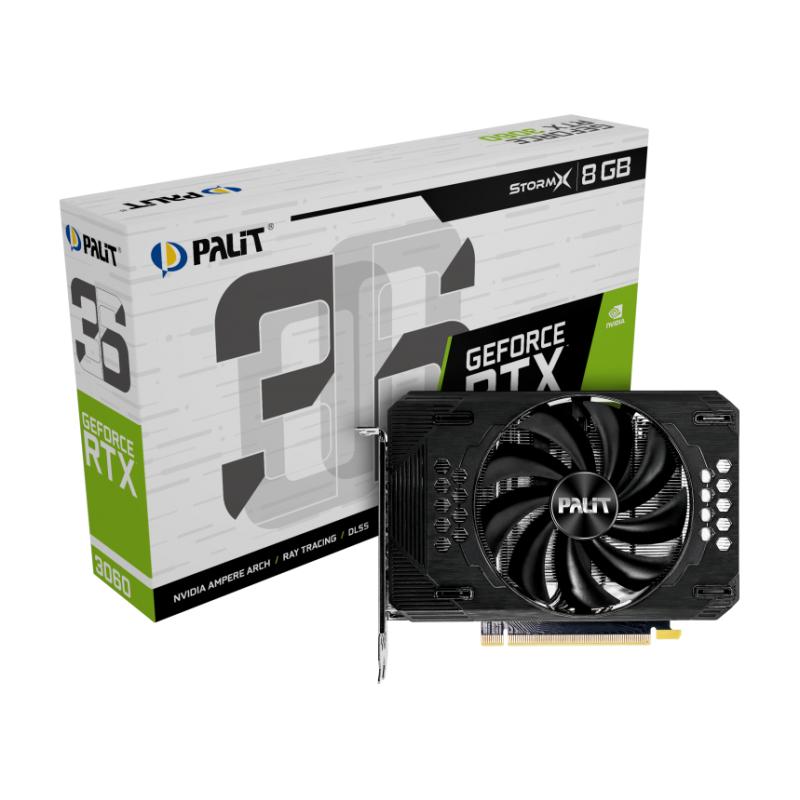

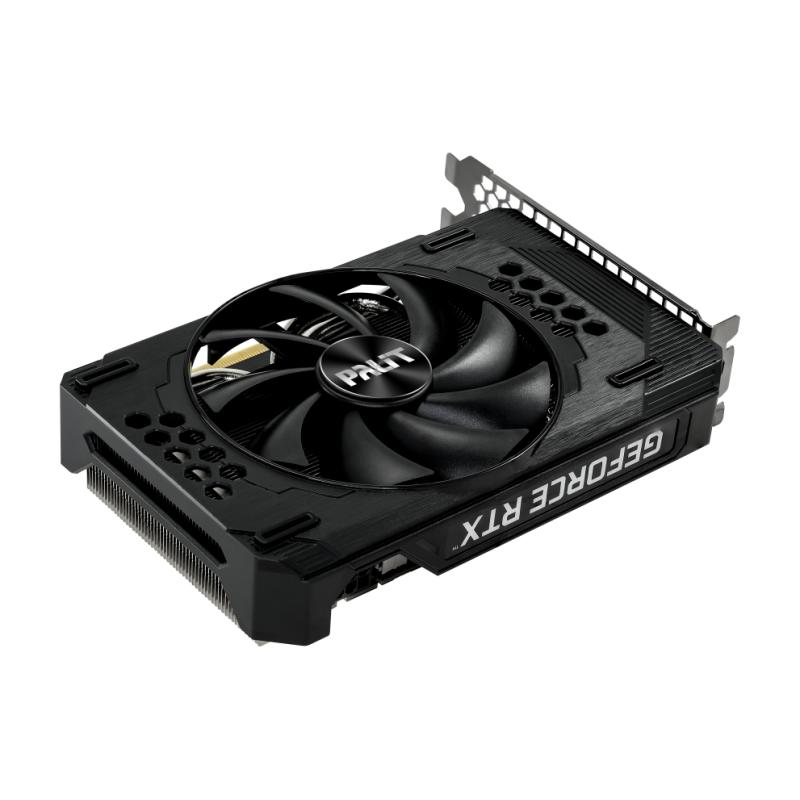

Palit GeForce RTX 3060 StormX (NE63060019P1-190AF) (NE63060019P1190AF)

Find suitable products

Palit GeForce RTX 3060 StormX - Graphics card - GF RTX 3060 - 8 GB GDDR6 - PCIe 4.0 - HDMI, 3 x DisplayPort

View data sheet
Add to comparison list

Category (Grafikkarten): PC Components
Graphics Cards
OEM: NE63060019P1-190AF
EAN: 4710562243444
SKU: 141246 (141246)
Manufacturer: Palit
Type: Graphics card
Color: Black
Customs tariff number: 84718000
UNSPSC: 43201401
eClass: 19-03-03-09
eClass V7: 19-05-04-90
Chipset family: NVIDIA GeForce RTX 3000
Memory capacity: 8GB
Bus width: 128Bit

Description
Features
Specifications

GeForce RTX 3060 lets you take on the latest games using the power of Ampere - NVIDIA's 2nd generation RTX architecture. Get incredible performance with enhanced Ray Tracing Cores and Tensor Cores, streaming multiprocessors, and high-speed G6 memory. The incredibly small package contains the mighty power of a full-sized graphics card. With only 17 cm in length, Palit StormX is perfect for small form factor system. Gamers can experience the 100% performance as a full-sized card while saving space and enjoy the portability.

RGB lighting
The color lighting from RGB LED can be changed in accordance with graphics temperature. The temperature can easily be identified by different colors from the external appearance of the graphics card. Gamers can choose from 16.8 million colors to suit their own style and preferences.
0-dB technology
Keep silent while you are experiencing the multimedia application and general workload. The operating fans only occur while working on heavier loading.
DrMOS
DrMOS, originally only available for high-end server CPUs, is now available in all its glory in the next generation of Palit graphics cards. DrMOS offers high current circuits, low noise operation, and effective reduction of heat generating.

General

Device Type

Graphics card

Bus Type

PCI Express 4.0

Graphics Engine

NVIDIA GeForce RTX 3060

Core Clock

1320 MHz

Boost Clock

1777 MHz

CUDA Cores

3584

VR Ready

Yes

Max Resolution

7680 x 4320

Max Monitors Supported

Interfaces

3 x DisplayPort ¦ HDMI

API Supported

Vulkan, OpenGL 4.6, DirectX 12 Ultimate

Features

Nvidia CUDA technology, Nvidia PhysX-Ready, NVIDIA Adaptive Vertical Sync, NVIDIA GPU Boost, Nvidia GeForce ShadowPlay, NVIDIA G-Sync ready, NVIDIA GameStream, Nvidia Temporal Anti-Aliasing Technology (TXAA), DrMOS, Nvidia SHIELD ready, Multi-Frame Anti-Aliasing (MFAA), Dynamic Super Resolution (DSR), 2-slot Fan Cooler, NVIDIA Ansel, honeycomb design bracket, RGB Lighting, NVIDIA Tensor Core, Real-Time Ray Tracing, NVIDIA Highlights, 0-dB TECH, Nvidia RT Core, Nvidia Adaptive Shading, Nvidia DLSS, NVIDIA Ampere GPU technology, NVIDIA FreeStyle, 2nd gen Ray Tracing Cores, 3rd gen Tensor Cores, NVIDIA Multi-Projection, HDCP

Memory

Size

8 GB

Technology

GDDR6 SDRAM

Memory Speed

15 Gbps

Bus Width

128-bit

Bandwidth

240 GBps

System Requirements

Required Power Supply

550 W

Additional Requirements

8 pin PCI Express power connector

Miscellaneous

Power Consumption Operational

170 Watt

Compliant Standards

DisplayPort 1.4a

Width

4 cm

Depth

17 cm

Height

12.5 cm
