Ruijie Networks RG-ES209GC-P. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 9. MAC address table: 4000 entries, Switching capacity: 18 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 54 V. Power over Ethernet (PoE)

Qty:

Category (Netzwerktechnik)
Network Equipment
Network Equipment
OEM
RG-ES209GC-P
EAN
6971693270404
SKU
172441 (172441)
Manufacturer
Ruijie Networks
Master carton
0.0000
Type
Switch
UNSPSC
43222612
eClass
19-03-01-17
eClass V7
19-17-01-06
Dimensions (Girth)
285 x 235 x 80 (915)
Type
Switch
Amount of ports
8
Transmission rate
1Gbps

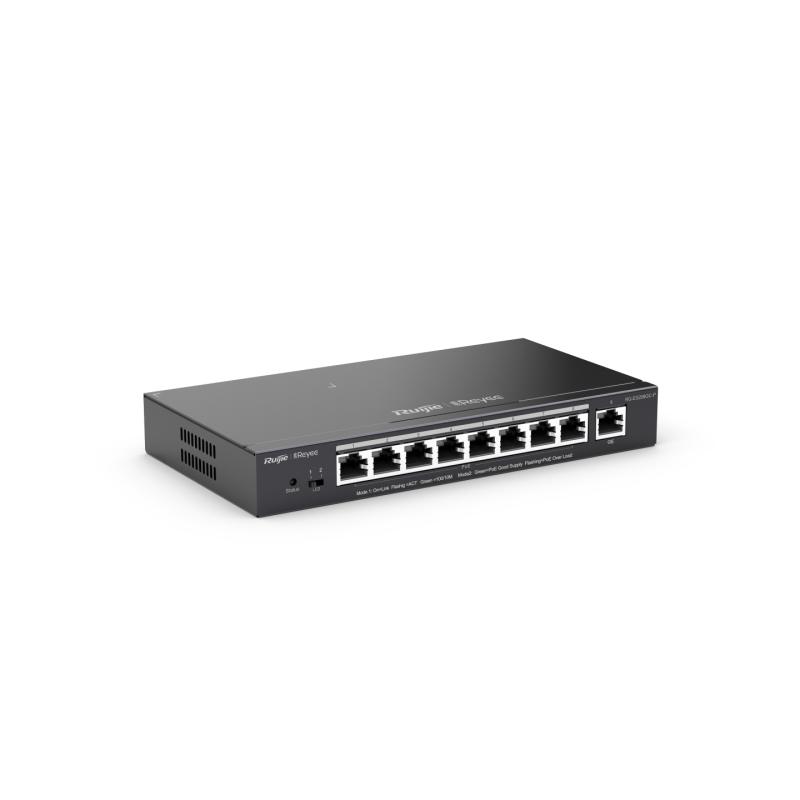

9-Port Gigabit Managed Switch with 8 PoE+ Ports
Gigabit access PoE switch fits needs in SMB network

Cost-Effective Smart Cloud Managed Switches
ES200 adopts a light-weighted Cloud management design, providing faster response to support richer features.

Automatic Loop Prevention Ensures Service Continuity
Network stays connected when network loop happens.

Cloud, Make Your Business Easy
SON, zero touch provisioning to Cloud
Configure VLANs on Ruijie Cloud APP
Monitor switch statistics at anytime anywhere
Easy maintainance, save onsite time and cost

Management features
Switch type
Managed
Cloud-managed
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
9
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Data transmission
MAC address table
4000 entries
Switching capacity
18 Gbit/s
Forwarding rate
13.39 Mpps
Network
Networking standards
IEEE 802.3af, IEEE 802.3at
10G support
No
Flow control support
Yes
Broadcast storm control
Yes
VLAN support
Yes
Number of VLANs
16
Power
Power source
AC/DC
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
DC input voltage
54 V
Power consumption (max)
130 W
Design
Product colour
Black
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90 %
Storage relative humidity (H-H)
5 - 95 %
Weight & dimensions
Width
202 mm
Depth
108 mm
Height
28 mm
Weight
1.3 kg
Security
Loop protection
Yes
Technical details
Warranty period
3 year(s)
Compliance certificates
CE
Performance
Mean time between failures (MTBF)
200000 h
