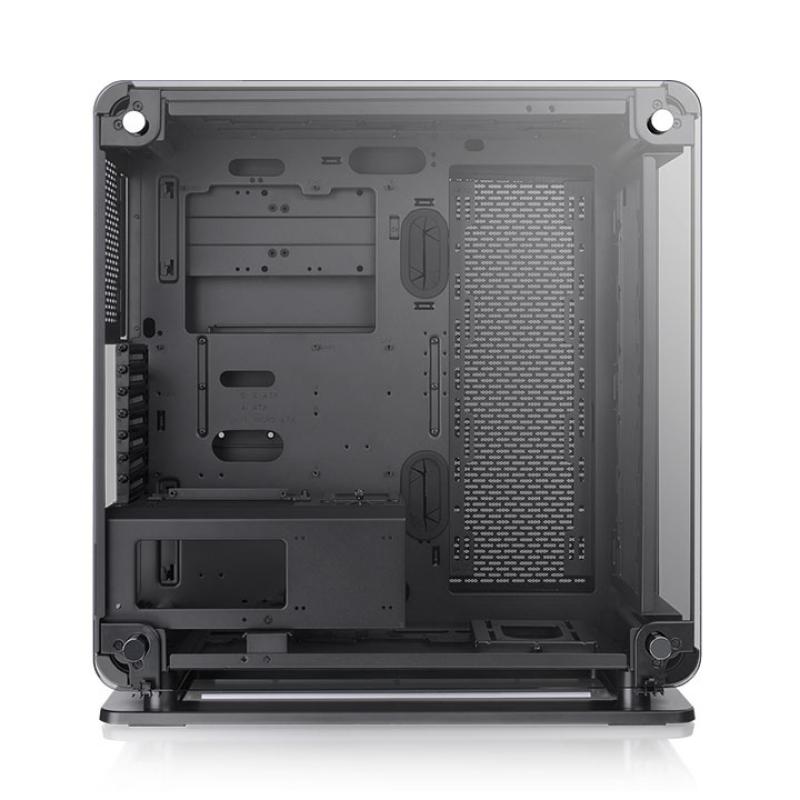

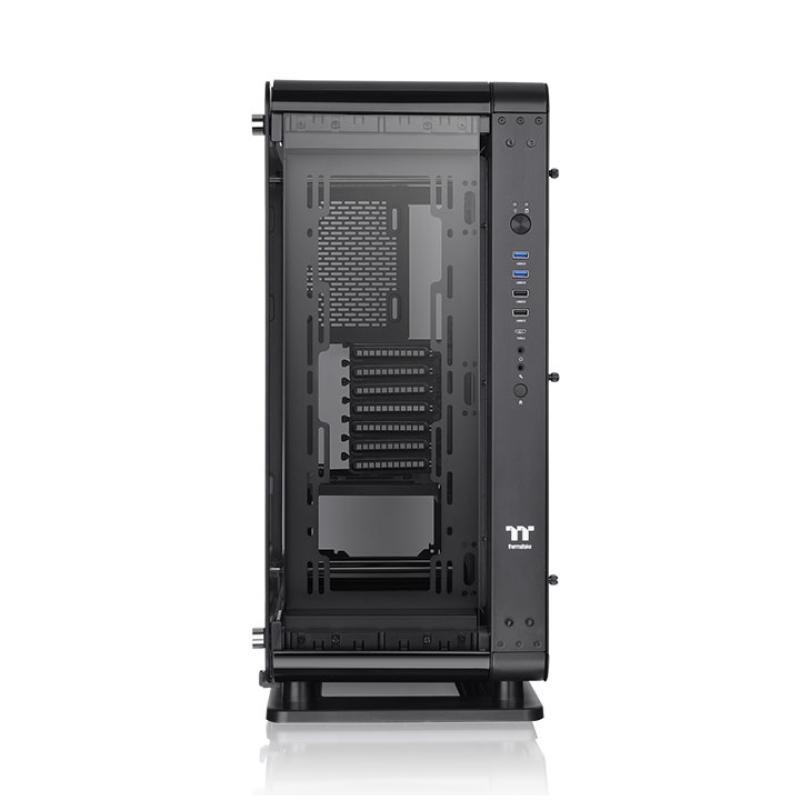

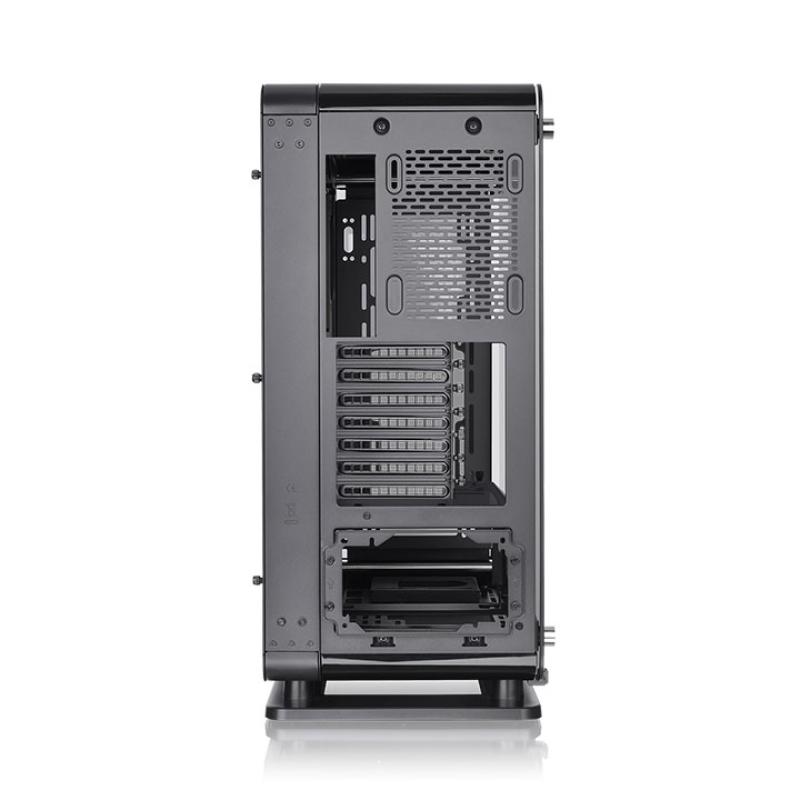

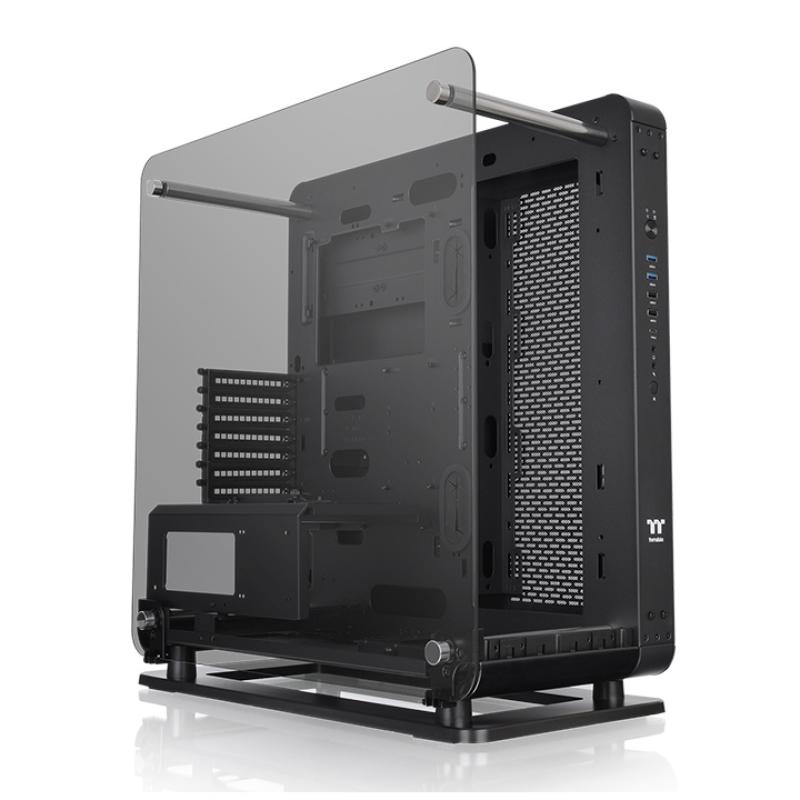

Thermaltake Core P6 TG MDT SSI CEB Seitenteil mit Fenster (gehärtetes Glas)
Thermaltake Core P6 TG MDT SSI CEB Seitenteil mit Fenster (gehärtetes Glas)

Thermaltake Core P6 TG MDT SSI CEB Seitenteil mit Fenster (gehärtetes Glas)

Thermaltake Core P6 TG - MDT - SSI CEB - windowed side panel (tempered glass) - no power supply (PS/2) - black - USB/Audio

Qty:

Category (Gehäuse)
PC Components
Cases
OEM
CA-1V2-00M1WN-00
EAN
4713227528580
SKU
132556 (132556)
Manufacturer
Thermaltake
Type
Mini tower
Customs tariff number
84733080
UNSPSC
43201601
eClass
19-03-03-01
eClass V7
19-05-06-01
Type
Mini tower
Form factor
SSI CEB
Buildt type
2.5"
Weight
18kg
Universal interfaces
PS/2

The Core P6 TG mid tower case is the smaller version of the Core P8 TG full tower case. Just like the Core P8 TG, the Core P6 TG can be transformed into a closed or open styled form effortlessly and is the newest member of the Thermaltake iconic open-frame Core Series. The Core P6 TG features a fully modular design, Rotational PCI-E slots, a PSU cover, an extra GPU bracket, support for 120mm and 140mm fans, support for 360mm and 280mm radiators, and removable filters. With all the significant features, the potential for the hardware expansion and cooling solution is remarkable for the Core P6 TG. Users will enjoy the process of building in the Core P6 TG mid tower case and find it truly unique and innovative.

  • Transformable chassis
    The Core P6 TG is a dual-form ATX mid tower case which can be transformed into an open frame case once the front and top tempered glass panels are removed.
  • Two-way placement layout
    The Core P6 TG is designed for use in two different ways: wall-mounted or vertical placement. Built for customization that reflects the makers' personality, it allows for easy adjustments to the case for the best viewing presentation while ensuring outstanding cooling performance. Users can hang it on the wall as decoration, take it to wherever they want and display the nice builds the way they want.
  • 4mm thick tempered glass window with stunning viewing
    The Core P6 TG features three 4mm thick tempered glass panels which are designed to meet the highest standards in the industry. The enlarged glass windows permit users to fully display their RGB components in the system, and show off their dedication and skill sets.
  • Dust reduction
    Three super fine magnetic filters on the right, top, and at the bottom are designed to provide excellent protection against dirt and dust from the outside of the case and is easily removable for cleaning.

General
Form Factor
Mid tower
Windowed Side Panel
Yes
Windowed Side Panel Material
Tempered glass
Max Mainboard Size
SSI CEB
Supported Motherboards
ATX, microATX, Mini-ITX, SSI CEB
Internal Bays Qty
8
Product Material
Tempered glass, SPCC
Colour
Black
Cooling System
Front: 120 mm fan mount x 3 / 2 x 140 mm fan supported ¦ Top: 120 mm fan mount x 3 / 2 x 140 mm fan supported ¦ Rear: 120 mm fan mount x 1 ¦ Right side: 120 mm fan mount x 3 / 2 x 140 mm fan supported ¦ Bottom: 120 mm fan mount x 3 / 2 x 140 mm fan supported
CPU Cooler Max Height
180 mm
Video Card Max Length
458 mm
Power Supply Max Length
200 mm
System Cabinet Features
Supports 120 mm radiator in rear, bottom magnetic dust filter, supports 120/240 mm radiator in bottom, supports 120/140/240/280/360 mm radiator in front panel, supports 120/140/240/280/360 mm radiator in top, tempered glass front panel, top magnetic dust filter, tempered glass top panel, PSU bracket, wall-mountable, vertical/horizontal graphic card orientation, dismantlable modular design, tempered glass left panel, side magnetic dust filter, supports 120/140/240/280/360 mm radiator in right side panel
Expansion / Connectivity
Expansion Bays
Internal - 6x2.5" / 4x3.5" shared ¦ 2 (total) / 2 (free) x internal - 2.5"
Expansion Slots
7
Interfaces
2 x USB 2.0 ¦ 2 x USB 3.0 ¦ 1 x headphones/speakers - mini-jack ¦ 1 x microphone - mini-jack ¦ USB-C 3.2 Gen 2
Power
Power Device
No power supply
Specification Compliance
PS/2
Max Supported Qty
1
Dimensions & Weight
Width
25.5 cm
Depth
53 cm
Height
56.5 cm
Weight
17.84 kg
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
