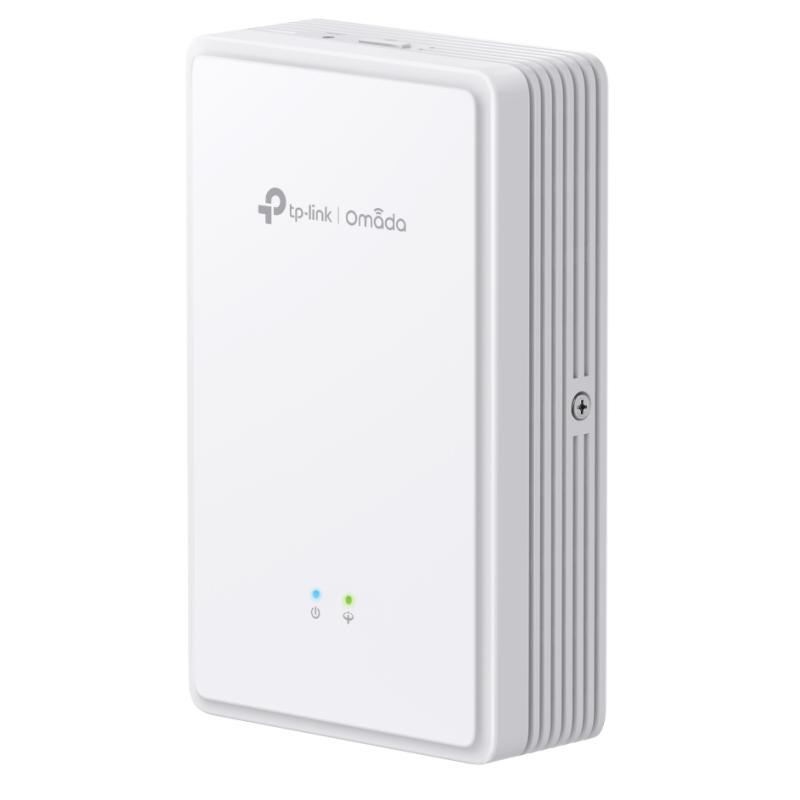

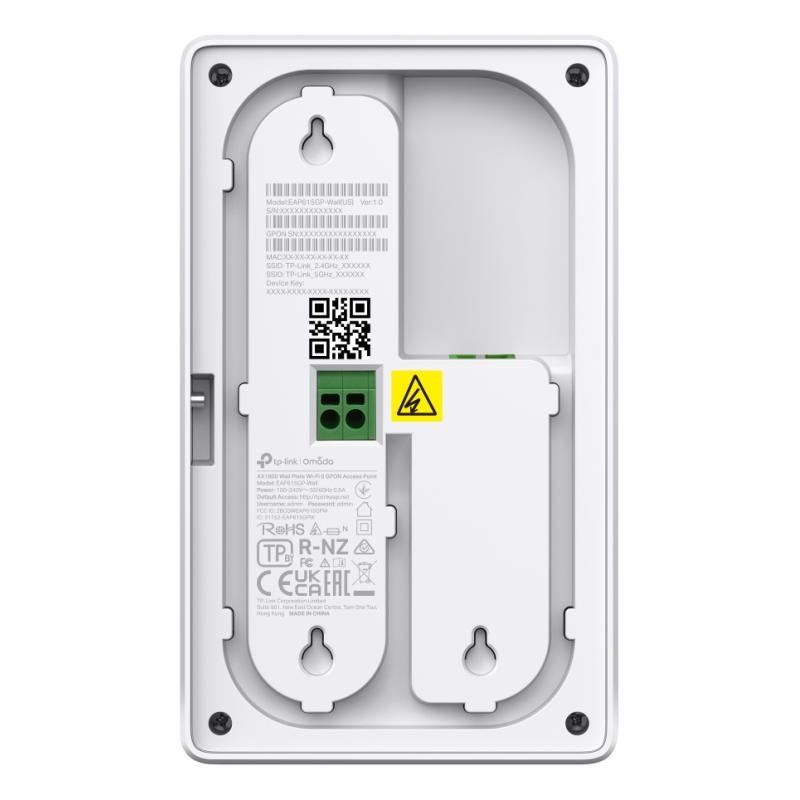

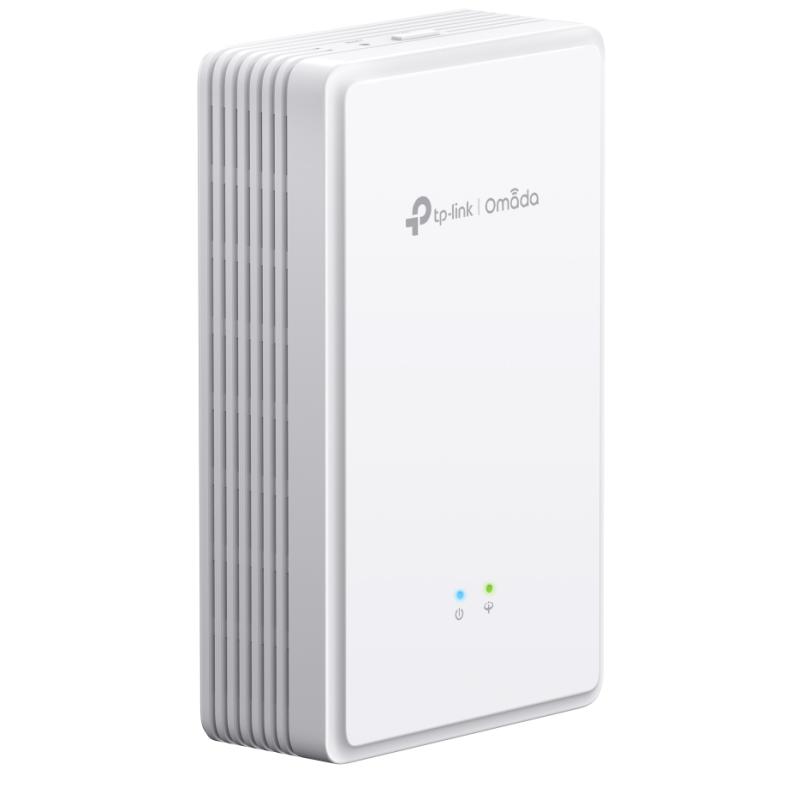

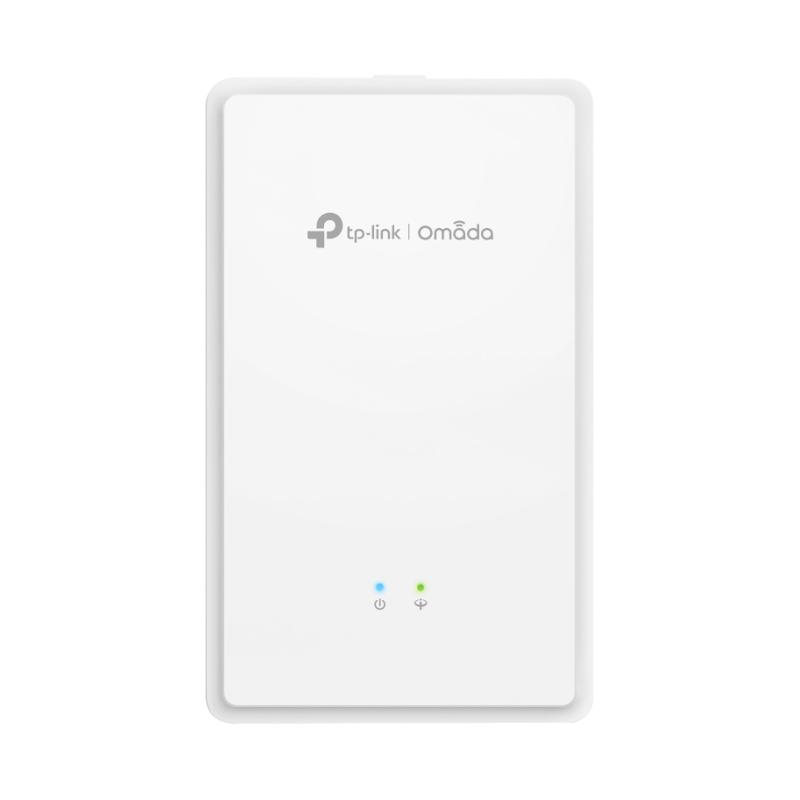

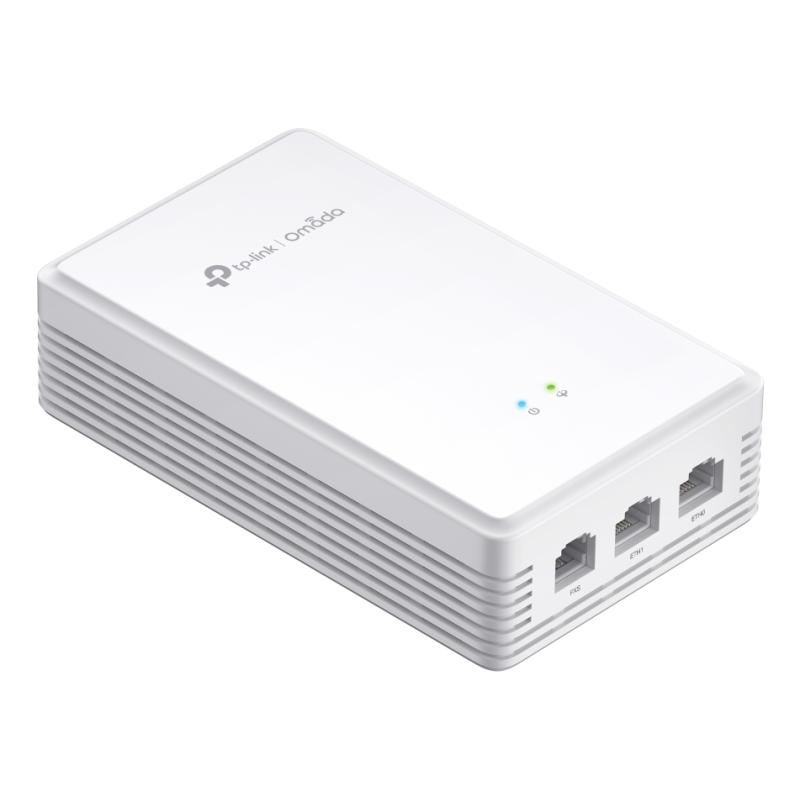

TP-LINK TPLINK Access Point EAP625GP-Wall EAP625GPWall (EAP625GP-WALL)
TP-LINK TPLINK Access Point EAP625GP-Wall EAP625GPWall (EAP625GP-WALL)
TP-LINK TPLINK Access Point EAP625GP-Wall EAP625GPWall (EAP625GP-WALL)
TP-LINK TPLINK Access Point EAP625GP-Wall EAP625GPWall (EAP625GP-WALL)
TP-LINK TPLINK Access Point EAP625GP-Wall EAP625GPWall (EAP625GP-WALL)
TP-LINK TPLINK Access Point EAP625GP-Wall EAP625GPWall (EAP625GP-WALL)
TP-LINK TPLINK Access Point EAP625GP-Wall EAP625GPWall (EAP625GP-WALL)
TP-LINK TPLINK Access Point EAP625GP-Wall EAP625GPWall (EAP625GP-WALL)
TP-LINK TPLINK Access Point EAP625GP-Wall EAP625GPWall (EAP625GP-WALL)
TP-LINK TPLINK Access Point EAP625GP-Wall EAP625GPWall (EAP625GP-WALL)

TP-LINK TPLINK Access Point EAP625GP-Wall EAP625GPWall (EAP625GP-WALL)

TP-Link Omada EAP625GP-WALL. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1201 Mbit/s. Security algorithms: WPA, WPA2, WPA3. Power over Ethernet (PoE). Product colour: White

Qty:
View data sheet
Add to comparison list
Category (Netzwerktechnik)
Network Equipment
Network Equipment
OEM
EAP625GP-WALL
EAN
8885020625080
SKU
168470 (168470)
Manufacturer
TP-Link
Master carton
0.0000
Type
Access Point
Customs tariff number
85176200
UNSPSC
43222631
eClass
19-03-01-12
eClass V7
19-17-01-10
Type
Access Point
Amount of ports
Other Amount of ports
Transmission rate
1.2 Gbps - 1.54 Gbps

Complete Omada Optical Networking Solution
The Omada Optical Networking Solution delivers enterprise-grade gigabit passive optical networking. It seamlessly integrates essential components such as Omada switches, gateways, OLTs (Optical Line Terminals), and ONUs (Optical Network Units)—perfect for PtMP (point-to-multipoint) environments like hotels and MDUs.

One Fiber, Multiple Services
Connect a fiber optic cable to the EAP625GP-Wall to connect cameras, PCs, and TVs to carry data, voice, wired and wireless internet, HD video, and VoIP services.

Seamless WiFi 6 Mesh Networking
Leverage GPON WiFi 6 technology for a robust and seamless network experience, delivering speeds up to 1.8 Gbps.
Omada Mesh and 802.11k/v roaming ensure a consistently smooth and reliable connection.

Features
2.4 GHz
Yes
5 GHz
Yes
6 GHz
No
Maximum data transfer rate
1201 Mbit/s
Frequency band
2.4 - 5 GHz
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Coverage area
50 m²
Number of users
120 user(s)
VLAN support
Yes
Rate limiting
Yes
Wireless meshing
Yes
Band steering
Yes
Airtime Fairness (ATF)
Yes
Quality of Service (QoS) support
Yes
Management features
Web-based management
Yes
Security
Security algorithms
WPA, WPA2, WPA3
MAC address filtering
Yes
Service Set Identifier (SSID) features
Multiple SSIDs, SSID broadcast, SSID broadcast on/off
Number of SSID supported
16
Design
Placement
Wall
Product colour
White
Reset button
Yes
Operational conditions
Operating relative humidity (H-H)
10 - 90 %
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90 %
Weight & dimensions
Width
143 mm
Depth
86 mm
Height
44.6 mm
Weight
350 g
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
Power
Power over Ethernet (PoE)
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
