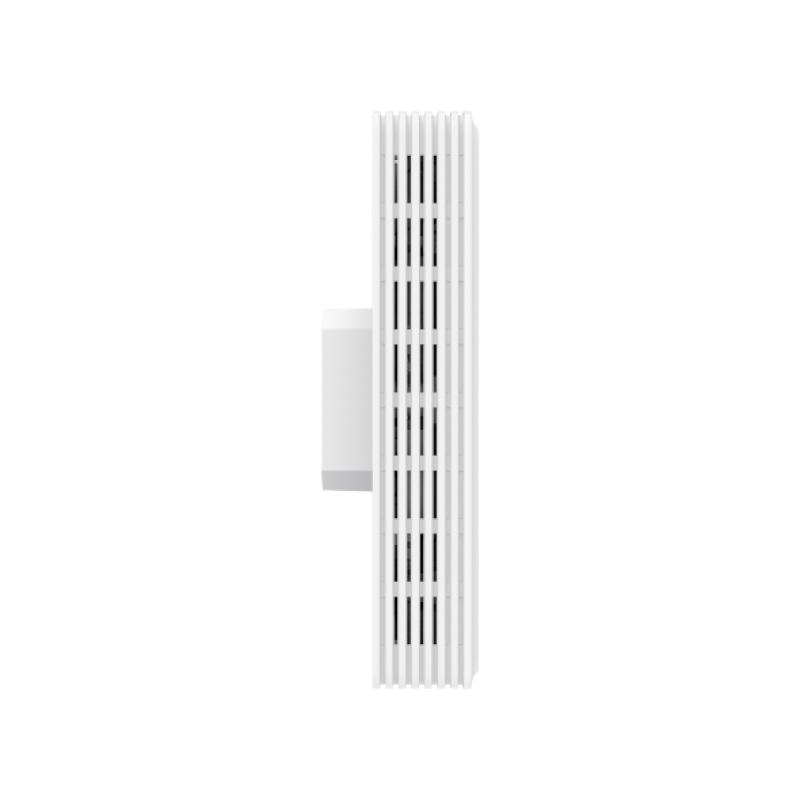

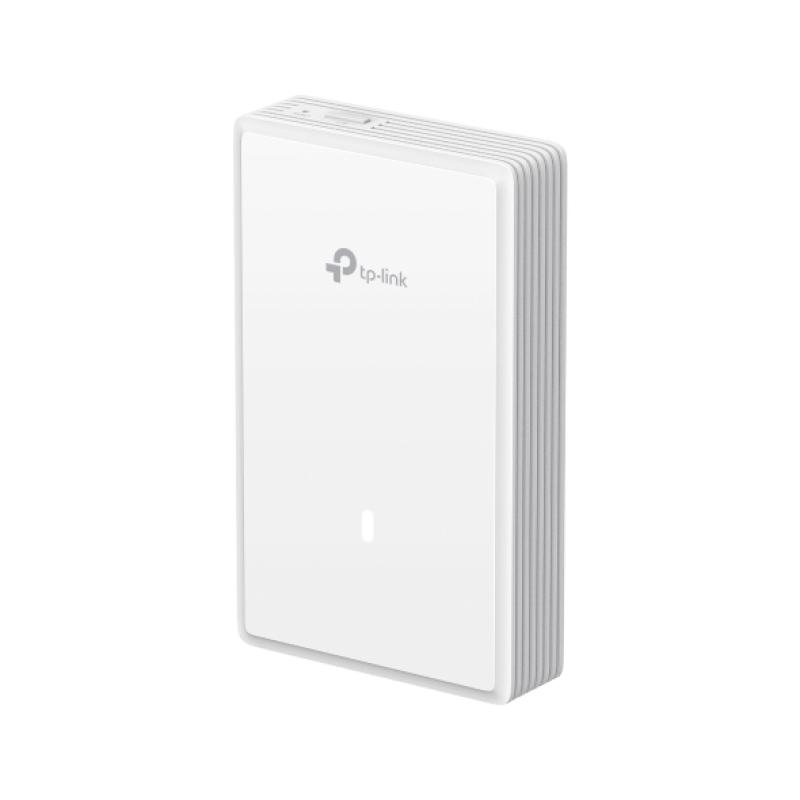

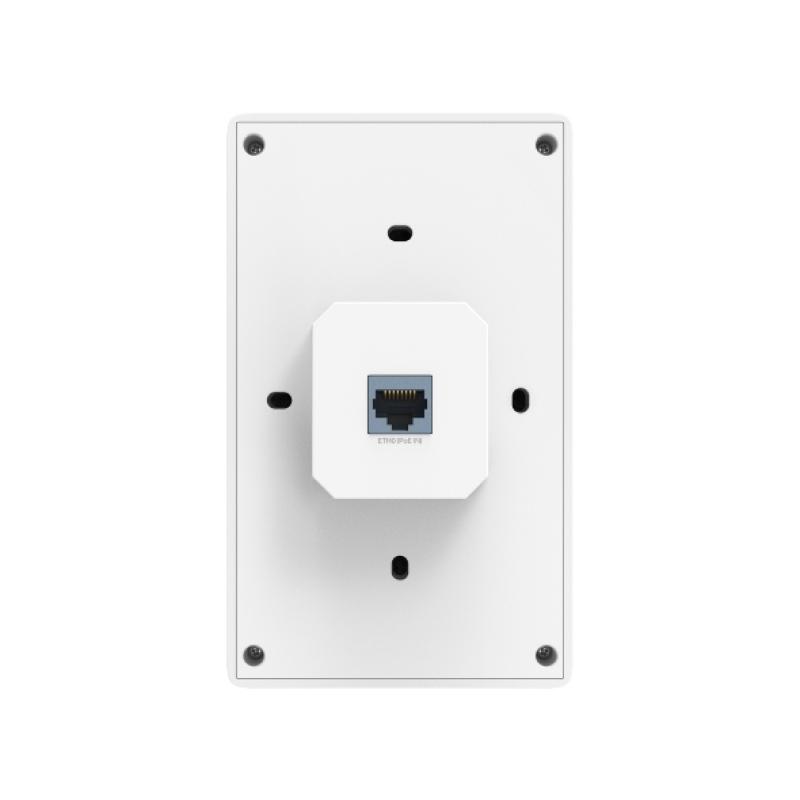

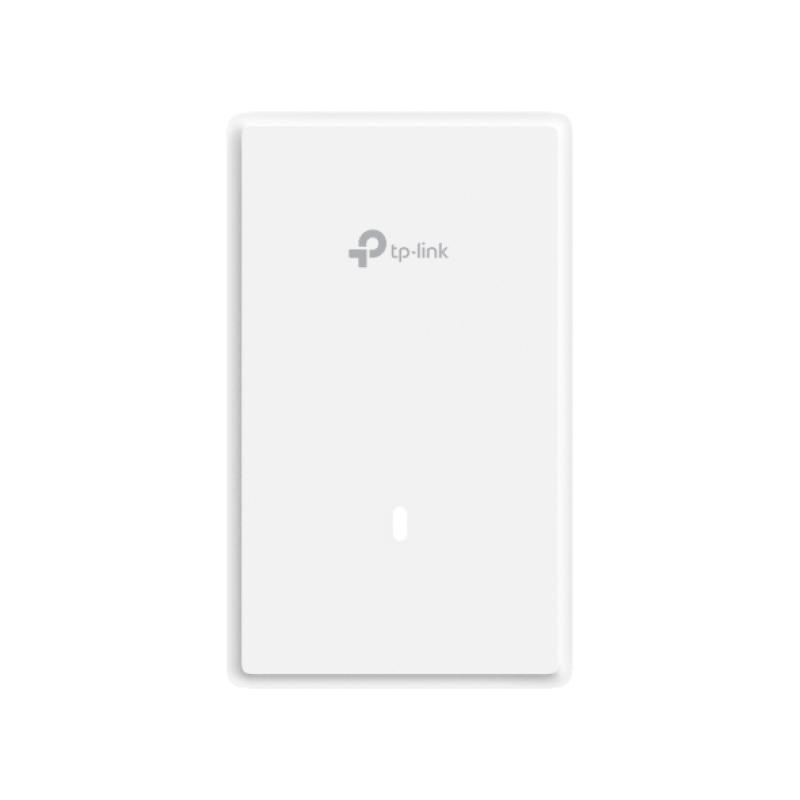

TP-LINK TPLINK Access Point EAP725-Wall EAP725Wall (EAP725-WALL)
TP-LINK TPLINK Access Point EAP725-Wall EAP725Wall (EAP725-WALL)
TP-LINK TPLINK Access Point EAP725-Wall EAP725Wall (EAP725-WALL)
TP-LINK TPLINK Access Point EAP725-Wall EAP725Wall (EAP725-WALL)
TP-LINK TPLINK Access Point EAP725-Wall EAP725Wall (EAP725-WALL)
TP-LINK TPLINK Access Point EAP725-Wall EAP725Wall (EAP725-WALL)
TP-LINK TPLINK Access Point EAP725-Wall EAP725Wall (EAP725-WALL)
TP-LINK TPLINK Access Point EAP725-Wall EAP725Wall (EAP725-WALL)
TP-LINK TPLINK Access Point EAP725-Wall EAP725Wall (EAP725-WALL)
TP-LINK TPLINK Access Point EAP725-Wall EAP725Wall (EAP725-WALL)

TP-LINK TPLINK Access Point EAP725-Wall EAP725Wall (EAP725-WALL)

TP-Link EAP725-Wall. 2.4 GHz, 5 GHz, Maximum data transfer rate: 5012 Mbit/s. Security algorithms: WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 17 W

Qty:
View data sheet
Add to comparison list
Category (Netzwerktechnik)
Network Equipment
Network Equipment
OEM
EAP725-WALL
EAN
8885020626353
SKU
168477 (168477)
Manufacturer
TP-Link
Master carton
0.0000
Type
Access Point
Customs tariff number
85176200
UNSPSC
43222631
eClass
19-03-01-12
eClass V7
19-17-01-10
Dimensions (Girth)
180 x 130 x 50 (540)
Type
Access Point
Amount of ports
Other Amount of ports
Transmission rate
4Gbps

BE3600 WiFi 7 Wall
Plate Access Point for
Ultra-Fast Connectivity

Optimized Wired Performance
with 2.5G PoE Ports
With 2.5G PoE input and pass-through ports, along with two Gigabit RJ45 ports, enjoy high-speed data transfers and connect multiple devices to your gigabit network. Wired devices, such as IP Phones, can be powered without the need for additional electrical cables.

Seamless Integration into the Omada SDN
Remotely manage your access points, switches, and routers across multiple sites — all from a single interface.

Features
2.4 GHz
Yes
5 GHz
Yes
6 GHz
No
Maximum data transfer rate
5012 Mbit/s
Maximum data transfer rate (2.4 GHz)
688 Mbit/s
Maximum data transfer rate (5 GHz)
2882 Mbit/s
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
Number of users
250 user(s)
VLAN support
Yes
Airtime Fairness (ATF)
Yes
BeamForming
Yes
Security
Security algorithms
WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
MAC address filtering
Yes
Number of SSID supported
16
Remote Authentication Dial-In User Service (RADIUS)
Yes
Access Control List (ACL)
Yes
Design
Placement
Ceiling, Wall
Product colour
White
Reset button
Yes
LED indicators
Yes
Antenna
Antenna type
Internal
Antennas quantity
4
Antenna gain level (max)
5 dBi
Operational conditions
Operating relative humidity (H-H)
10 - 90 %
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90 %
Packaging content
Quantity per pack
1 pc(s)
Mounting kit
Yes
Weight & dimensions
Width
86 mm
Depth
40 mm
Height
143 mm
Ports & interfaces
Ethernet LAN (RJ-45) ports
3
Power
Power over Ethernet (PoE)
Yes
Power consumption (max)
17 W
Packaging data
Package type
Box
Certificates
Certification
FCC, RoHS
Performance
Compatible operating systems
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Address
Name
TP-Link
Email
info.de@tp-link.com
Website
https://www.tp-link.com/
Telephone
+49 (0)211 8755 100
Fax
+49 (0)211 87551 041
Street
Am Trippelsberg 100
Postcode
40589
City
Düsseldorf
Country
DE
