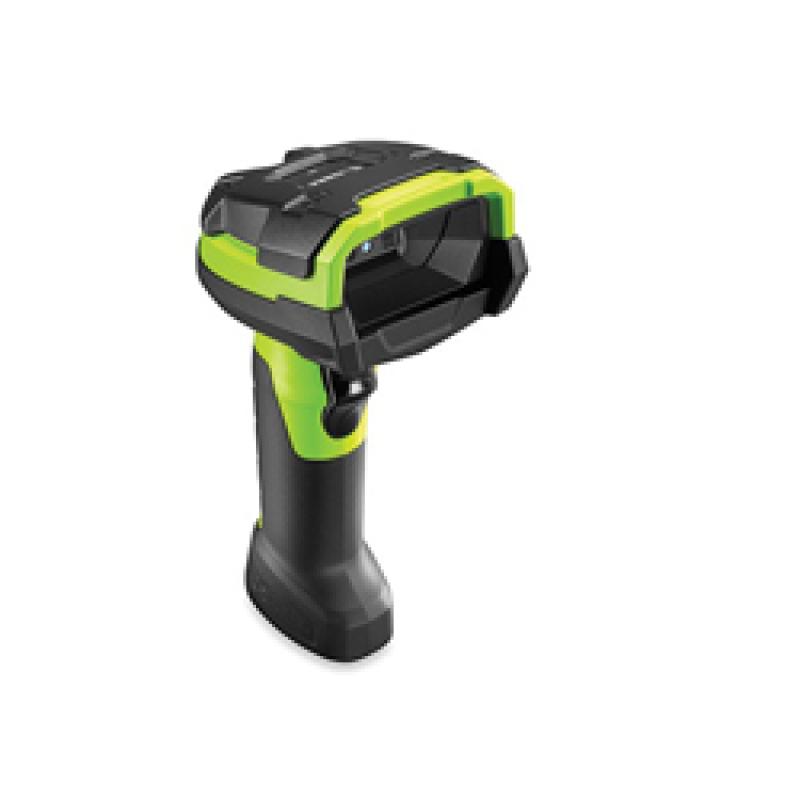

Zebra DS3608-SR DS3608SR Barcode-Scanner BarcodeScanner Handgerät (DS3608-SR3U4600VZW) (DS3608SR3U4600VZW)

Find suitable products

Zebra DS3608-SR - Barcode scanner - handheld - 2D imager - decoded - USB

View data sheet
Add to comparison list

Category (Scanner): Printers & Accessories
Scanners
OEM: DS3608-SR3U4600VZW
EAN: 4016139084619
SKU: 123351 (123351)
Manufacturer: Zebra
Type: Barcode scanner
Customs tariff number: 84719000
UNSPSC: 43211711
eClass: 27-28-01-01
eClass V7: 27-28-01-01
Dimensions (Girth): 215 x 110 x 90 (615)
Type: Barcode scanner
DIN format: Other DIN format

Description
Features
Specifications

As a member of the Zebra 3600 ultra-rugged series of scanners, the practically indestructible 1D/2D DS3608-SR scanners are ready for tough environments - the warehouse and manufacturing floor. Designed to capture virtually any barcode, these scanners are loaded with features that deliver truly unstoppable performance, redefining reliability and management simplicity. The result? The dependable, fast and accurate scanning you need to take the quality of your products and your customer service to the next level.

Superior performance
You get the ultimate in scanning performance - period. Your workers can scan virtually any 1D or 2D electronic or printed barcode in any condition, as fast as they can pull the trigger. With more working range, it's easy to capture barcodes, that are farther away. Even if barcodes are under shrink-wrap or damaged, dirty or poorly printed, no problem - this intelligent scanner can handle it all.
Ultra-rugged design
The manufacturing plant floor is as tough as its gets - and the cost of unplanned downtime on the production line is astronomical. The scanners are dust-tight, spray-proof and waterproof to IP67, with an IP65 sealed cradle for a complete rugged solution.
Unrivaled manageability
You can remotely configure and upgrade your scanners, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless models and more.

General

Type

Barcode scanner - handheld

Colour

Black, green

Barcode

Interface Type

USB

Minimum Bar Width

5 mil

Scan Element Type

2D imager

Max Working Distance

35 cm

Skew (Degrees)

Pitch (Degrees)

Print Contrast Signal (PCS)

25%

Decode Capability

EAN/JAN, Code 93, Code 39, UCC/EAN-128, NW-7, IATA, GS1 DataBar, QR code, MaxiCode, Bookland, Code 32, Code 39 Full ASCII, EAN/JAN-8, EAN/JAN-13, Discrete 2 of 5, MicroPDF417, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, Australian Post, Japanese Post, Code 128 Full ASCII, Code 39 Trioptic, Dutch Post, UK Post

TTL Decoding

Decoded

Connectivity Technology

Wired

OK Notification

Beeper, LED indicator

Features

Reduced Space Symbology (RSS), Two-Position Smart Focus, rugged

Expansion / Connectivity

Interfaces

1 x USB

Miscellaneous

Cables Included

1 x USB cable - external

Compliant Standards

EN 60950, IEC950, UL 1950, IEC 60529 IP65, ICES-003 Class B, FCC Part 15 B, EMC, RoHS, CSA C22.2 No. 950

Dimensions & Weight

Width

7.6 cm

Depth

13.2 cm

Height

18.5 cm

Weight

305 g

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Environmental Parameters

Min Operating Temperature

-30 °C

Max Operating Temperature

50 °C

Humidity Range Operating

5 - 95% (non-condensing)
