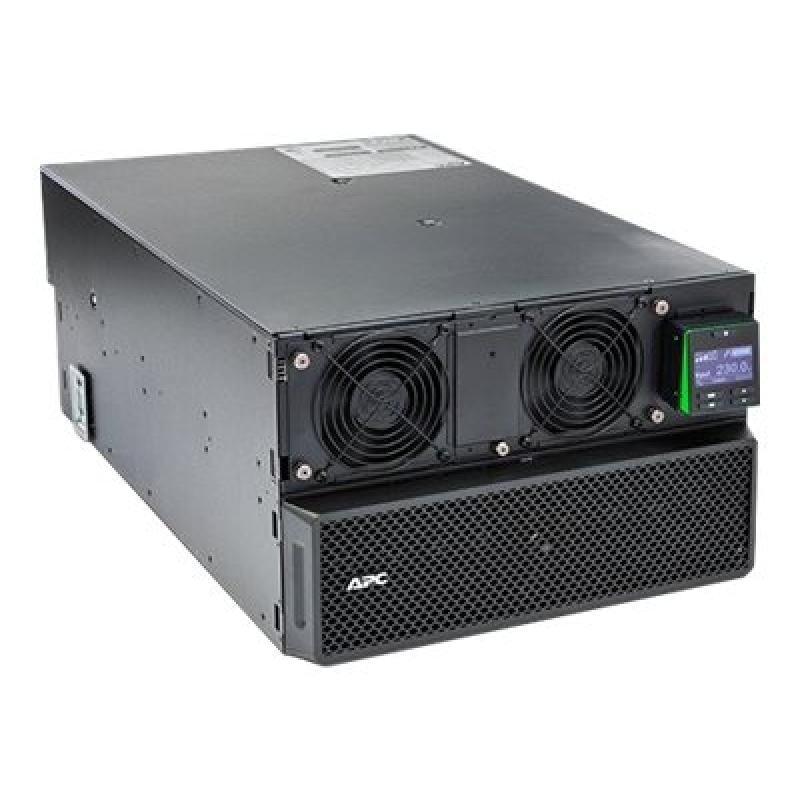

APC Smart-UPS SRT 8000VA RM - UPS (rack-mountable) - AC 230 V - 8000 Watt - 8000 VA - Ethernet 10/100, USB - output connectors: 14 - 6U - black - for P/N: AR2487G, AR3100W, AR3105SP, AR3105W, AR3155W, AR3305W, AR3355SP, AR3355W, NBWL0356A

Qty:
View data sheet
Add to comparison list
Category (Unterbrechungsfreie Stromversorgung)
PC Components
Power Supply
OEM
SRT8KRMXLI
EAN
0731304304296
SKU
172360 (172360)
Manufacturer
APC
Master carton
0.0000
Type
(Offline) UPS
Model
Smart-UPS SRT 8000VA RM
Color
Black
Customs tariff number
85044030
UNSPSC
39121011
eClass
19-03-04-01
eClass V7
27-04-06-01
Type
(Offline) UPS
Electrical input
5,000 W - 16,000 W
Mark
IEC
Universal interfaces
USB
Backup time
3 min - 25 min

LCD graphics display has text and mimic diagrams that display modes of operation, system parameters and alarms. Connect the device to a network using a 10 or 100 BASE-T connection. Green mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. Battery failure notification provides early-warning fault analysis on batteries enabling timely preventive maintenance. Automatic internal bypass supplies utility power to the connected loads in the event of a UPS power overload or fault. Scalable runtime allows additional run time to be quickly added as needed. Intelligent battery management maximizes battery performance, life, and reliability through intelligent, precision charging.

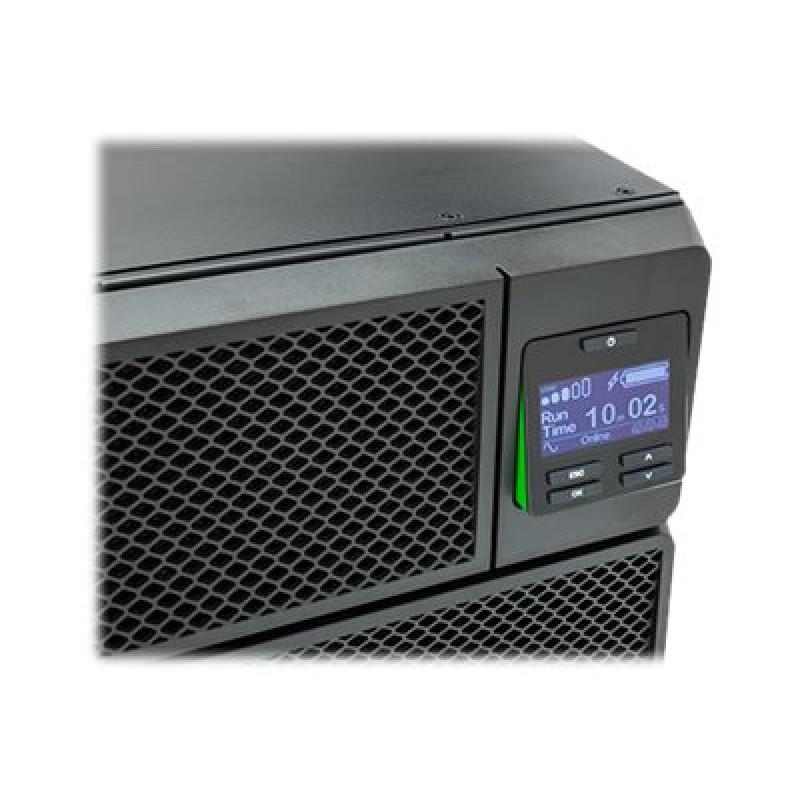

  • LCD graphics display
    LCD graphics display has text and mimic diagrams that display modes of operation, system parameters and alarms.
  • 10/100 BASE-T connection
    Connect the device to a network using a 10 or 100 BASE-T connection.
  • Green mode
    Green mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • Battery failure notification
    Battery failure notification provides early-warning fault analysis on batteries enabling timely preventive maintenance.
  • Automatic internal bypass
    Automatic internal bypass supplies utility power to the connected loads in the event of a UPS power overload or fault.
  • Scalable runtime
    Scalable runtime allows additional run time to be quickly added as needed.
  • Intelligent battery management
    Intelligent battery management maximizes battery performance, life, and reliability through intelligent, precision charging.

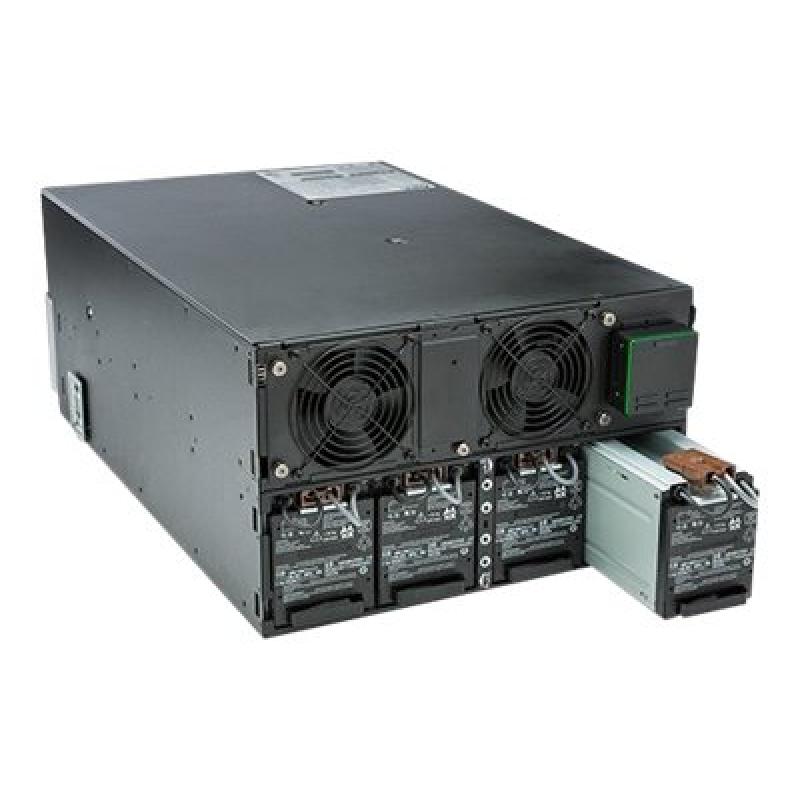

  • Hot-swappable batteries
    Hot-swappable batteries ensure clean, uninterrupted power to protected equipment while batteries are being replaced.
  • Automatic restart of loads after UPS shutdown
    Automatically starts up the connected equipment upon the return of utility power.
  • Temperature-compensated battery charging
    Temperature-compensated battery charging prolongs battery life by regulating the charge voltage according to battery temperature.
  • Network manageable
    Network manageable provides remote power management of the UPS over the network.
  • SmartSlot
    Customize UPS capabilities with management cards.
  • Serial connectivity
    Serial connectivity provides management of the UPS via a serial port.
  • Plug-and-Play external batteries
    Plug-and-Play external batteries ensure clean, uninterrupted power to the loads when adding extra runtime to the UPS.
  • Rack / tower convertible
    It protects the initial investment in the UPS when migrating from tower to rack-mount environment.
  • Audible alarms
    Provides notification of changing utility power and UPS power conditions.
  • Frequency and voltage regulation
    It gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
  • Power conditioning
    Protects connected loads from surges, spikes, lightning, and other power disturbances.
  • Input power factor correction
    It minimizes installation costs by enabling the use of smaller generators and cabling.
  • Resettable circuit breaker
    It easy recovers from overloads; no need to replace a fuse.

General
Device Type
UPS - rack-mountable
Height (Rack Units)
6U
Colour
Black
Power Device
UPS Technology
On-line
Input Voltage
AC 230 V
Frequency Provided
50/60 Hz
Frequency Required
45 - 65 Hz
Input Connectors
Hardwire 5-wire (3PH + N + G), hardwire 3-wire (1PH + N + G)

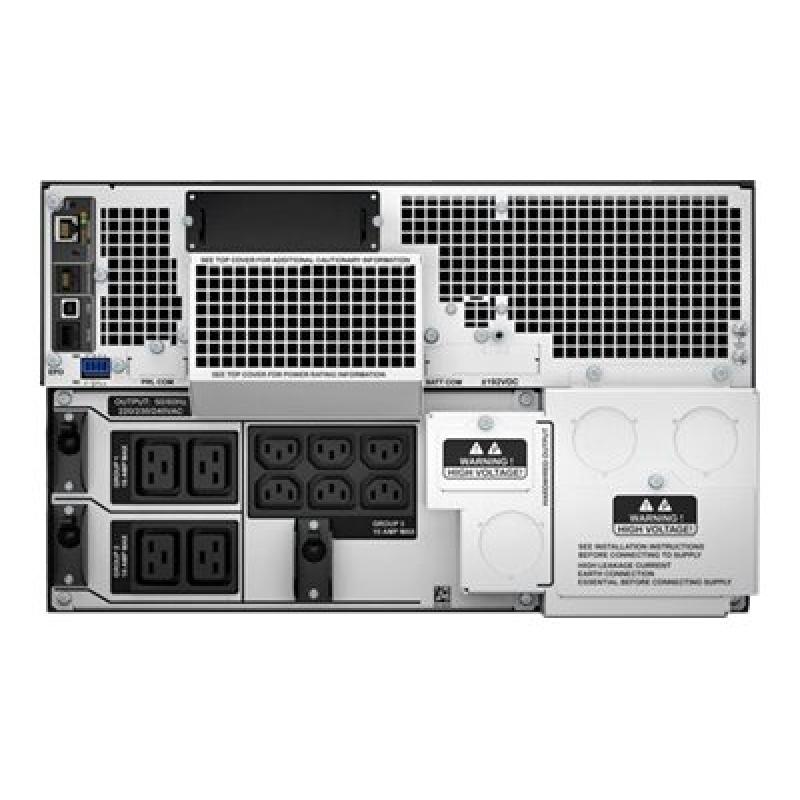

Power Output Connectors Details
6 x power IEC 60320 C13 ¦ 4 x power IEC 60320 C19 ¦ 1 x hardwire 3-wire (HN + G) ¦ 3 x IEC connector
Output Voltage
AC 230 V ± 3% - 50/60 Hz
Power Capacity
8000 Watt / 8000 VA
Output Waveform
Sinewave
Surge Suppression
Yes
Surge Energy Rating
480 Joules
Efficiency
98%
Battery
Technology
Lead Acid
Run Time (Up To)
5.3 min at full load ¦ 14.8 min at half load
Recharge Time
3 hours
Features
Maintenance free, sealed, leak-proof
Networking
Remote Management Interface
Ethernet 10/100, USB
Expansion / Connectivity
Interfaces
1 x management (Ethernet) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x EPO (emergency power off) ¦ 1 x serial - RJ-45
Expansion Slots
1 (total) / 1 (free) x SmartSlot
Miscellaneous
Features
Audible alarm, LCD display
Compliant Standards
C-Tick, VDE, IEC 60950, EN 50091-2, RoHS, EN 50091-1, REACH, EN 62040-2, IP20, EAC
Manufacturer Warranty
Service & Support
Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95% (non-condensing)
Sound Emission
55 dBA
Dimensions & Weight
Width
43.2 cm
Depth
71.5 cm
Height
26.3 cm
Weight
111.82 kg
Dimensions & Weight (Shipping)
Shipping Width
60 cm
Shipping Depth
1 m
Shipping Height
46.1 cm
Shipping Weight
130 kg
Compatibility Information
Designed For
P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC2513, ACF001, ACF002, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR7007, AR7050, AR7057, AR8135BLK, NBWL0356A
Address
Name
APC
Email
de-schneider-service@se.com
Website
www.se.com/de
Telephone
+49 (0) 211 7374 3000
Street
Gothaer Straße 29
Postcode
40880
City
Ratingen
Country
DE

Related Products

APC Smart-UPS SmartUPS On-Line OnLine (SRT8KXLI)
APC Smart-UPS...
SKU
172361
OEM
SRT8KXLI
EAN
0731304304319

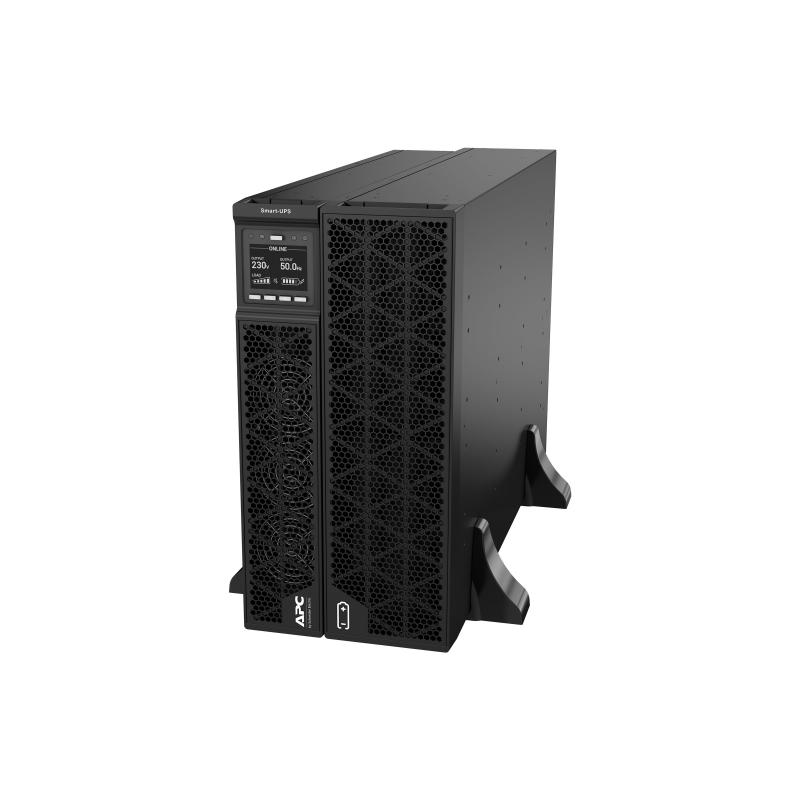

APC Smart-UPS SmartUPS On-Line OnLine (SRTG8KXLI)
