Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry's most rigorous standards.
Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation, and zero transfer time to battery during power events.
Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.
- LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms. - 10/100 BaseT ?onnection
Connect the device to a network using a 10 or 100 BaseT connection. - Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. - Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance - Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault. - Scalable runtime
Allows additional run time to be quickly added as needed. - Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging. - Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced. - Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power. - Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature. - Network manageable
Provides remote power management of the UPS over the network. - InfraStruXure Manager ?ompatible
Enables centralized management via the APC InfraStruXure Manager. - SmartSlot
Customize UPS capabilities with management cards. - LED status indicators
Quickly understand unit and power status with visual indicators. - Serial connectivity
Provides management of the UPS via a serial port. - Plug-and-Play external batteries
Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS. - Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment. - Flash upgradeable firmware
Install maintenance releases of firmware remotely using FTP. - User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR). - Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced. - Predicitive failure notification
Provides early-warning fault analysis ensuring proactive component replacement. - Disconnected battery notification
Warns when a battery is not available to provide backup power. - Audible alarms
Provides notification of changing utility power and UPS power conditions. - Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery. - Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances. - Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling. - Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used. - Cold-start capable
Provides temporary battery power when the utility power is out. - Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse.
General
Device Type
UPS - rack-mountable / external
Power Device
Frequency Provided
50/60 Hz
Frequency Required
45 - 65 Hz
Input Connectors
Hardwire 5-wire (3PH + N + G), hardwire 3-wire (1PH + N + G)
Power Output Connectors Details

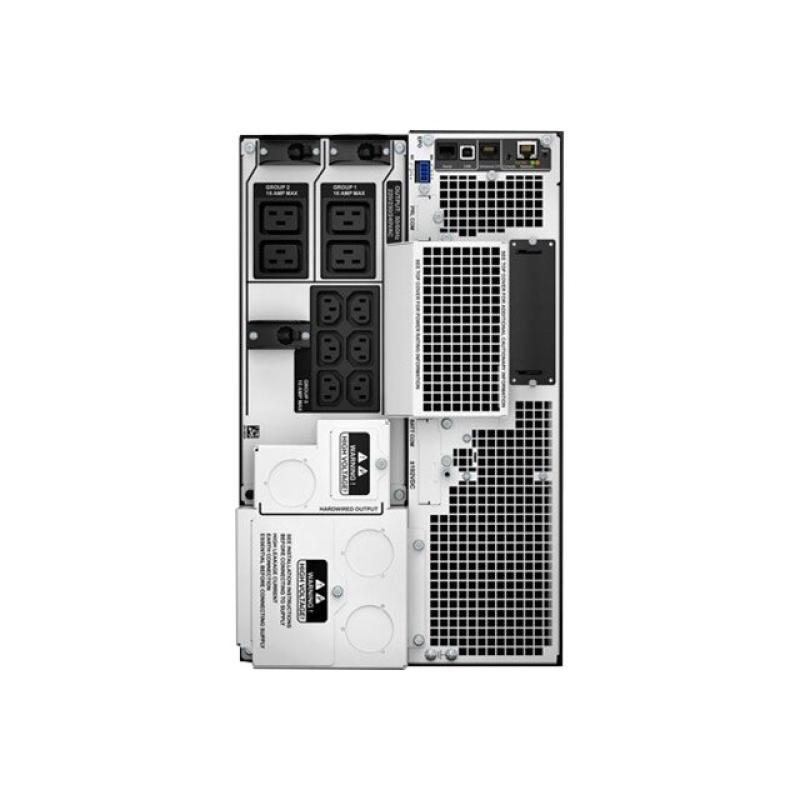

6 x power IEC 60320 C13 ¦ 4 x power IEC 60320 C19 ¦ 1 x hardwire 3-wire (HN + G) ¦ 3 x IEC connector
Output Voltage
AC 230 V ± 3% - 50/60 Hz
Power Capacity
8000 Watt / 8000 VA
Surge Energy Rating
480 Joules
Battery
Run Time (Up To)
5.3 min at full load ¦ 14.8 min at half load
Features
Maintenance free, sealed, leak-proof
Networking
Remote Management Interface
Ethernet 10/100, USB
Expansion / Connectivity
Interfaces
1 x management (Ethernet) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x EPO (emergency power off) ¦ 1 x serial - RJ-45
Expansion Slots
1 (total) / 1 (free) x SmartSlot
Miscellaneous
Features
Audible alarm, LCD display
Compliant Standards
C-Tick, VDE, IEC 60950, EN 50091-2, RoHS, EN 50091-1, REACH, EN 62040-2, IP20, EAC
Manufacturer Warranty
Service & Support
Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95% (non-condensing)
