APC Smart-UPS SmartUPS (SMX3000HVNC)

Find suitable products

APC Smart-UPS X 3000 Rack/Tower LCD - UPS (rack-mountable / external) - AC 230 V - 2700 Watt - 3000 VA - Ethernet 10/100, RS-232, USB - output connectors: 10 - 4U - black - with APC UPS Network Management Card AP9631 - for P/N: AR4018SPX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, NBWL0356A

View data sheet
Add to comparison list

Category (Unterbrechungsfreie Stromversorgung): PC Components
Power Supply
OEM: SMX3000HVNC
EAN: 0731304292623
SKU: 170368 (170368)
Manufacturer: APC
Master carton: 0.0000
Type: (Offline) UPS
Model: Smart-UPS X 3000 Rack/Tower LCD
Color: Black
Customs tariff number: 85044030
UNSPSC: 39121011
eClass: 19-03-04-01
eClass V7: 27-04-06-01
Dimensions (Girth): 640 x 580 x 330 (2460)
Type: (Offline) UPS
Electrical input: 2,700 W - 4,500 W
Mark: CE
Universal interfaces: USB
Backup time: 2min

Description
Features
Specifications
Product safety

Intuitive LCD interface provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
High frequency design reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
APC Smart-UPS X 3000 Rack/Tower LCD recognizes when external battery packs are attached and automatically adjusts runtime.
Patent-pending operating mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

Intuitive LCD interface
It provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
High frequency design
It reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
Auto recognition of external batteries
UPS recognizes when external battery packs are attached and automatically adjusts runtime.
Predictive replace battery date
It dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green mode
Patent-pending operating mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter
It provides actual kilowatt hours of usage for energy conscious users.
Audible alarms
Audible alarms provide notification of changing flywheel conditions
Pure sine wave output on battery
It simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Multiple switched outlet groups
Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
Wide input voltage range
Wide input voltage range is designed for harsh electrical environments to save battery life.
Battery failure notification
It provides early-warning fault analysis on batteries enabling timely preventive maintenance
High online efficiency
It reduces utility costs, generates less heat.
LED indicators
LED indicators provide easy-to-read status of your utility power conditions, UPS and battery.
Overload protection
It safeguards unit from damage by automatically turning it off in the event of a short circuit or overload.
Cold-start capable
It provides temporary battery power when the utility power is out.
Hot-swappable batteries
It ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Automatic restart of loads after UPS shutdown
It automatically starts up the connected equipment upon the return of utility power.
Adjustable voltage-transfer points
It maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable voltage sensitivity
It provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
User-replaceable batteries
It increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).
Serial connectivity
It provides management of the UPS via a serial port.
Temperature-compensated battery charging
It prolongs battery life by regulating the charge voltage according to battery temperature.
Boost and trim Automatic Voltage Regulation (AVR)
It gives higher application availability by correcting low and high voltage conditions without using the battery.
Scalable runtime
It allows additional run time to be quickly added as needed.
Intelligent battery management
It maximizes battery performance, life, and reliability through intelligent, precision charging.
Safety-agency approved
It ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Rack/tower convertible
It protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Power conditioning
It protects connected loads from surges, spikes, lightning, and other power disturbances.
Network manageable
It provides remote management of the UPS over the network.
Frequency and voltage regulation
It gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
Predictive failure notification
It provides early-warning fault analysis ensuring proactive component replacement.

General

Device Type

UPS - rack-mountable / external

Height (Rack Units)

Colour

Black

Bundled with

APC UPS Network Management Card AP9631

Power Device

UPS Technology

Line interactive

Input Voltage

AC 230 V

Input Voltage Range

AC 140 - 280 V

Frequency Provided

47 - 63 Hz

Frequency Required

47 - 63 Hz

Input Connectors

1 x power IEC 60320 C20

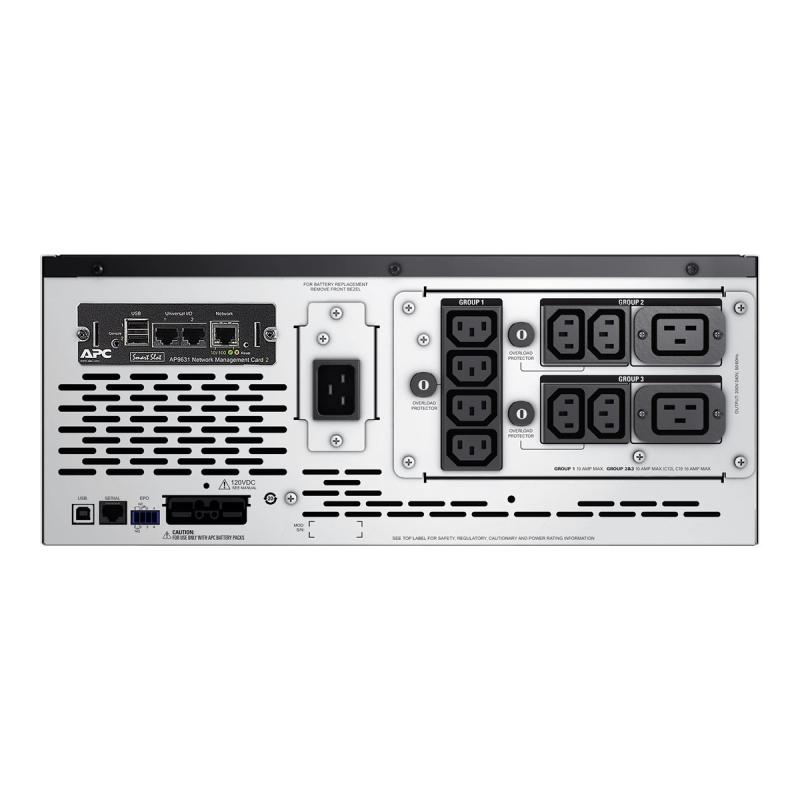

Power Output Connectors Details

8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19

Output Voltage

AC 230 V 47 - 63 Hz

Power Capacity

2700 Watt / 3000 VA

Output Waveform

Sinewave

Surge Suppression

Yes

Surge Energy Rating

645 Joules

Circuit Protection

Circuit breaker

Efficiency

98.5%

Battery

Quantity

Technology

Lead Acid

Run Time (Up To)

6.3 min at full load ¦ 15.7 min at half load

Recharge Time

3 hours

Networking

Remote Management Interface

Ethernet 10/100, RS-232, USB

Remote Management Protocol

SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SSH-2

Expansion / Connectivity

Interfaces

1 x USB ¦ 1 x RS-232 ¦ 1 x EPO (emergency power off) ¦ 1 x management (Ethernet) - RJ-45

Expansion Slots

1 (total) / 0 (free) x SmartSlot

Miscellaneous

Cables Included

Serial cable ¦ USB cable ¦ Power cable 1.83 m

Rack Mounting Kit

Included

Features

Audible alarm, LCD display, overload protection

Compliant Standards

CSA, C-Tick, GOST, UL 1449, UL 1778, VDE, IEC 60950, EN 50091-2, IRAM, RoHS, EN 50091-1, FCC Part 15 A, REACH

Software / System Requirements

Software Included

Drivers & Utilities

Manufacturer Warranty

Service & Support

Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

0 - 95%

Sound Emission

55 dBA

Dimensions & Weight

Width

43.2 cm

Depth

48.3 cm

Height

17.8 cm

Weight

38.64 kg

Dimensions & Weight (Shipping)

Shipping Width

58.6 cm

Shipping Depth

63.3 cm

Shipping Height

33 cm

Shipping Weight

47.73 kg

Compatibility Information

Designed For

P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC2513, ACF001, ACF002, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR202, AR203A, AR204A, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3810, AR3812, AR3814, AR4000MV, AR4000MVX429, AR4000MVX432, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X431, AR4038X432, AR7007, AR7050, AR7057, AR8135BLK, NBWL0356A
