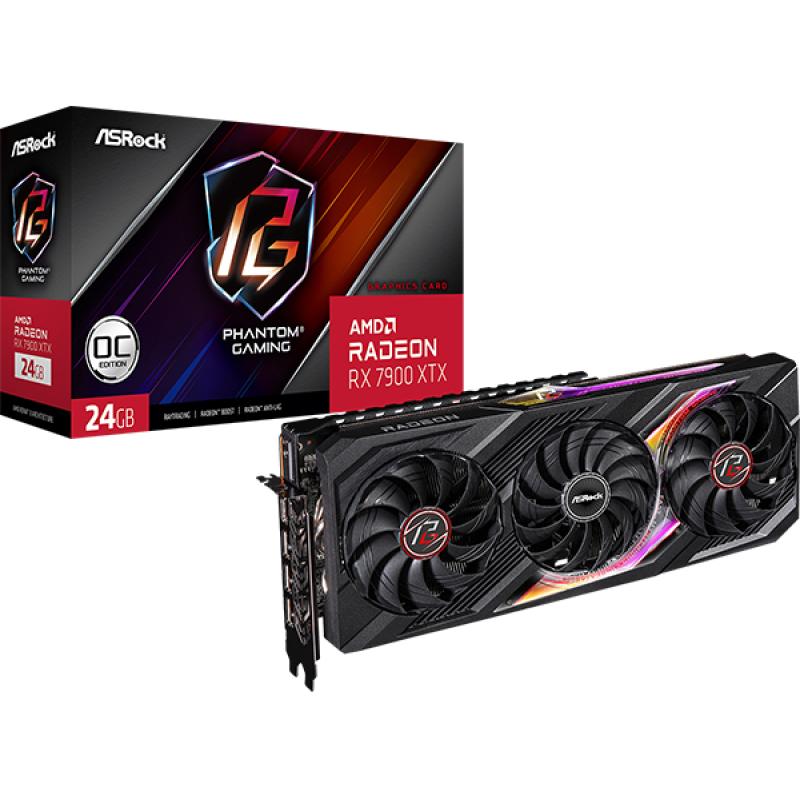

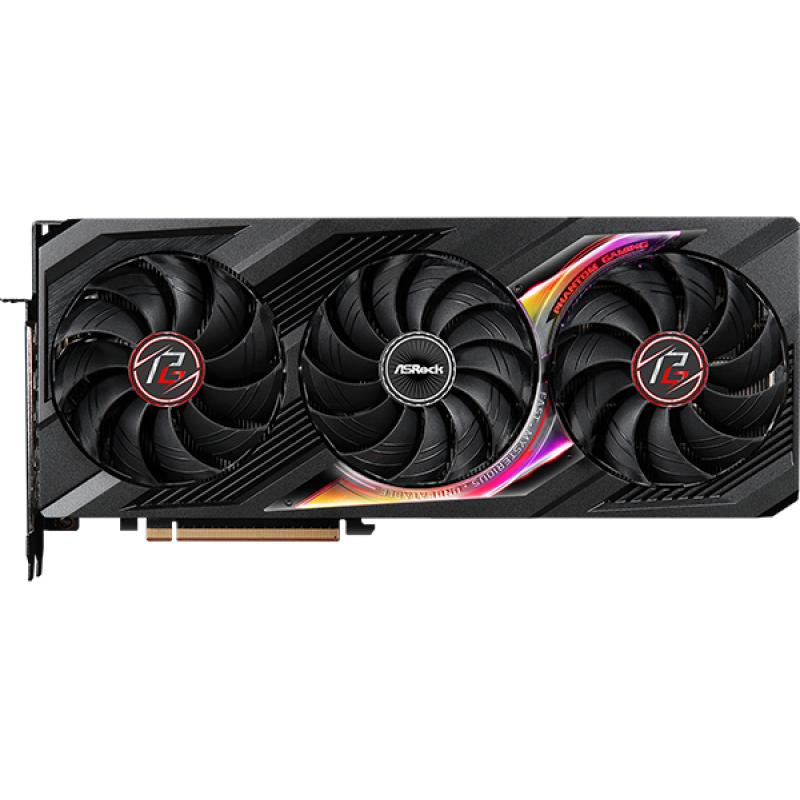

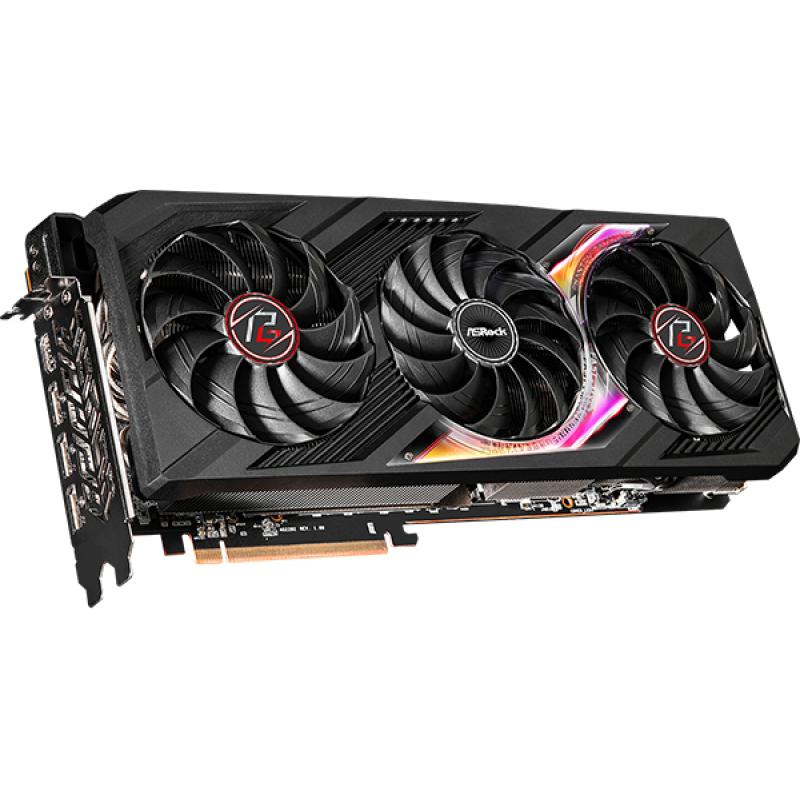

ASRock Phantom Gaming Radeon RX 7900 XTX 24GB - OC Edition - graphics card - Radeon RX 7900 XTX - 24 GB GDDR6 - PCIe 4.0 x16 - HDMI, 3 x DisplayPort - box

Qty:

Category (Grafikkarten)
PC Components
Graphics Cards
OEM
90-GA3YZZ-00UANF
EAN
4710483941733
SKU
141123 (141123)
Manufacturer
ASRock
Type
Graphics card
Line
ASRock Phantom Gaming
Color
Black
Customs tariff number
84718000
UNSPSC
43201401
eClass
19-03-03-09
eClass V7
19-05-04-90
Memory capacity
From 18GB
Bus width
384Bit

  • Reverse spin
    The center fan spins reversely to lower turbulence and enhance air dispersion through the heatsink.
  • Phantom gaming 3x cooling system
    Crafted for the best balance between the thermal efficiency and silence by all the details.
  • Striped Ring Fan
    ASRock's all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.
  • Air deflecting fin
    Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.
  • Ultra-fit heatpipe
    The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
  • Nickel-plated copper base
    With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
  • High-density metal welding
    Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
  • Nano thermal paste
    Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
  • Premium thermal pad
    The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
  • Precise screw torque
    ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
  • 0 dB silent cooling
    The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
  • Polychrome SYNC
    With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.
  • LED on/off switch
    You can switch not only the built-in ARGB LEDs but also the ARGB LEDs equipping with the connected strips/devices at once.
  • ARGB pin-header
    With the ARGB pin-header, it can connect ARGB strips/devices to make the lighting effects more rich and vivid.
  • Reinforced metal frame
    Enhances the structure to prevent the PCB from being bent.

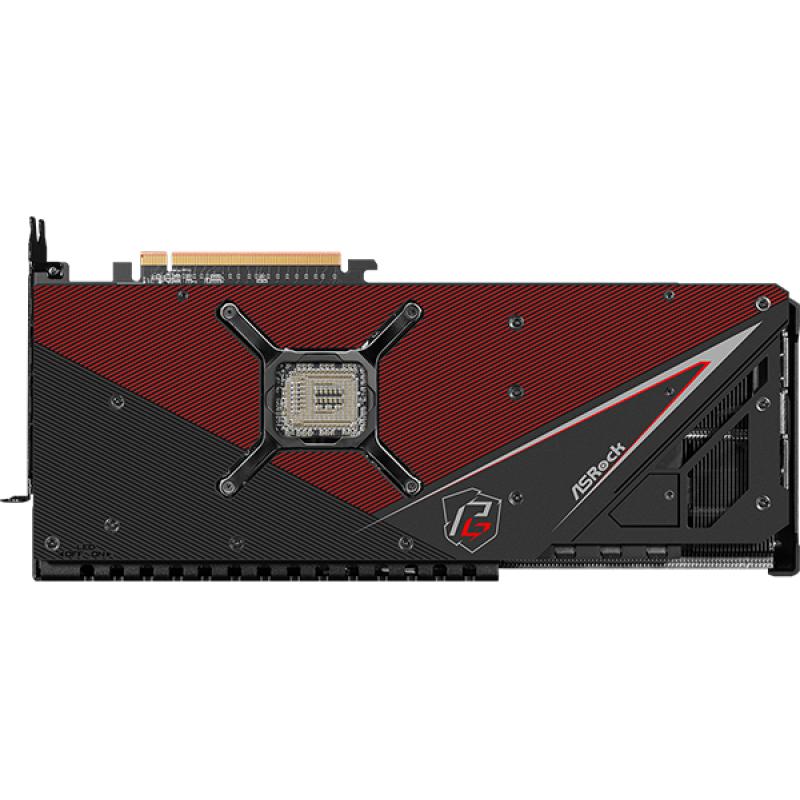

  • Stylish metal backplate
    Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
  • 8K resolution support
    Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.
  • PCI Express 4.0 support
    This graphics card features PCI Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI Express 3.0. Get ready for the next generation of PC gaming.

General
Device Type
Graphics card
Bus Type
PCI Express 4.0 x16
Graphics Engine
AMD Radeon RX 7900 XTX
Boost Clock
2615 MHz
Stream Processors
6144
Max Resolution
7680 x 4320
Max Monitors Supported
4
Interfaces
HDMI ¦ 3 x DisplayPort
API Supported
DirectX 12, OpenGL 4.6
Features
0dB Technology, Polychrome SYNC, ARGB Lighting, AMD Infinity Cache, Phantom Gaming 3X Cooling System, Reinforced Metal Frame, V-shape fin design, ultra-fit heatpipe, air deflecting fin, metal backplate, nickel plated copper base, RDNA 3 Gaming Architecture, AMD FidelityFX Super Resolution 2 (FSR), Smart Power Stages (SPS), 96 AMD RDNA 3 compute units, 96 MB cache, HDCP
Memory
Size
24 GB
Technology
GDDR6 SDRAM
Memory Speed
20 Gbps
Bus Width
384-bit
System Requirements
Required Power Supply
1000 W
Additional Requirements
2 adjacent PCI slots, 3 x 8 pin PCI Express power connector
Miscellaneous
Compliant Standards
DisplayPort 2.1
Width
5.76 cm
Depth
33 cm
Height
14 cm
Weight
1.55 kg
Package Details
Box
