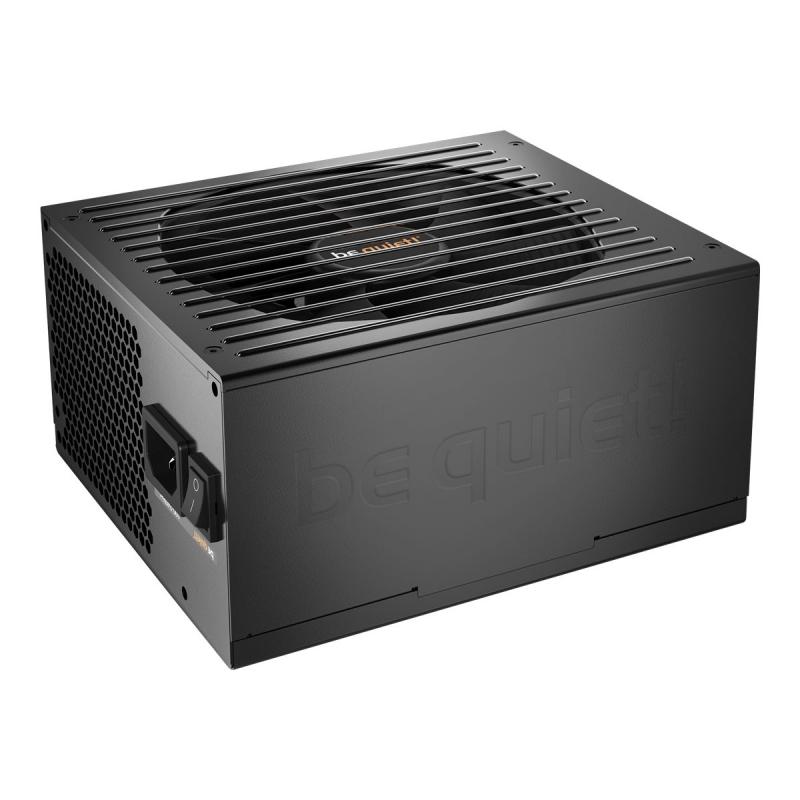

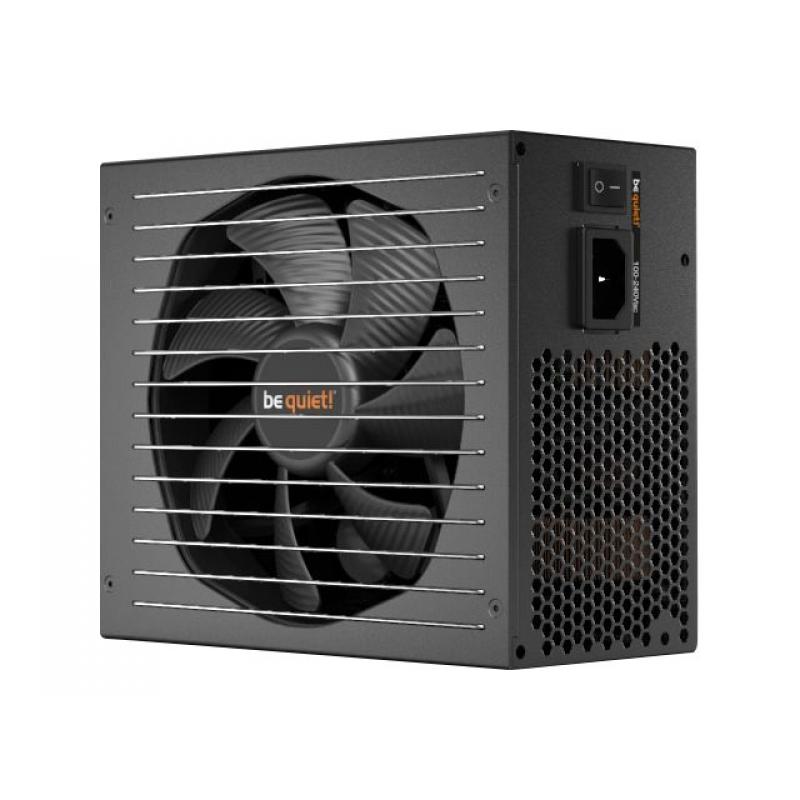

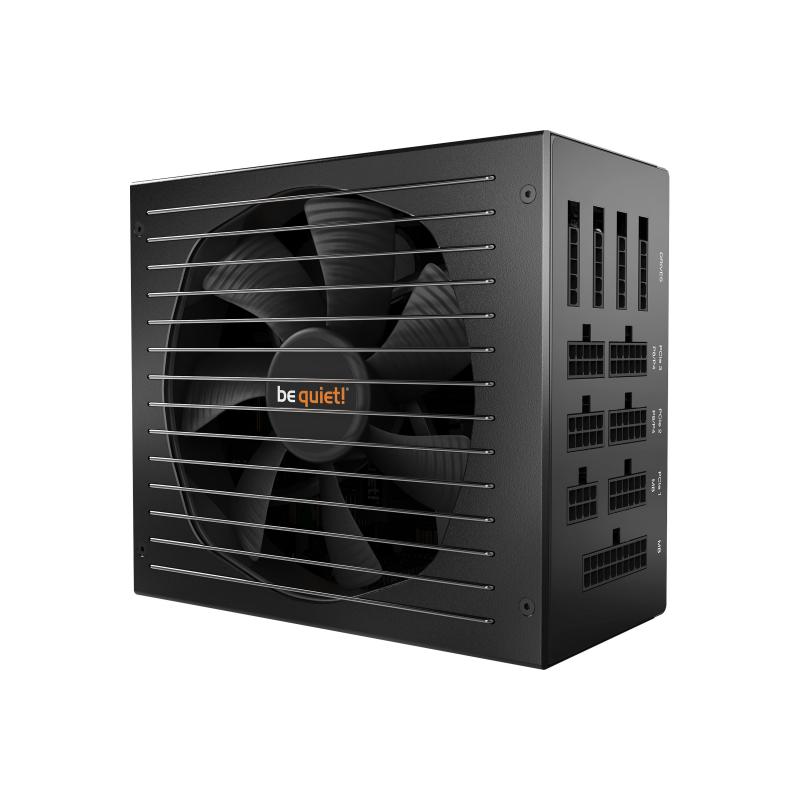

be quiet! Straight Power 11 1000W - Power supply (internal) - ATX12V 2.4/ EPS12V 2.92 - 80 PLUS Gold - AC 100-240 V - 1000 Watt - active PFC - black

Qty:

Category (Stromversorgung)
PC Components
Power Supply
OEM
BN285
EAN
4260052185803
SKU
beqac000014 (118503)
Manufacturer
be quiet!
Type
Power Supply
Color
Gold
Customs tariff number
85044030
UNSPSC
39121004
eClass
19-03-03-02
eClass V7
19-05-10-01
Type
Power Supply
Electrical input
Other Electrical input
Mark
80 PLUS Gold

be quiet! Straight Power 11 1000W raises the bar for systems that demand virtually inaudible operation without power quality compromises.

General
Device Type
Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance
ATX12V 2.4/ EPS12V 2.92
PSU Form Factor
ATX
Colour
Black
Power Device
Input Voltage
AC 100-240 V
Frequency Required
50 - 60 Hz
Power Output Connectors Details
1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 6 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 4 PIN internal power ¦ 11 x 15 pin Serial ATA power ¦ 1 x 4 PIN mini-power connector ¦ 1 x power 8 pin +12V
Output Voltage
+3.3, +5, ±12 V
Power Capacity
1000 Watt
Output Current
+3.3V - 25 A ¦ +5V - 25 A ¦ +12V1 - 22 A ¦ +12V2 - 22 A ¦ +12V3 - 30 A ¦ +12V4 - 30 A ¦ -12V - 0.5 A ¦ +5VSB - 3 A
Efficiency
93%
Power Factor (PF)
0.99
80 PLUS Certification
80 PLUS Gold
Miscellaneous
Included Accessories
Screws, cable ties
Cables Included
Power cable - external - 1.5 m
MTBF
100,000 hours
Cooling System

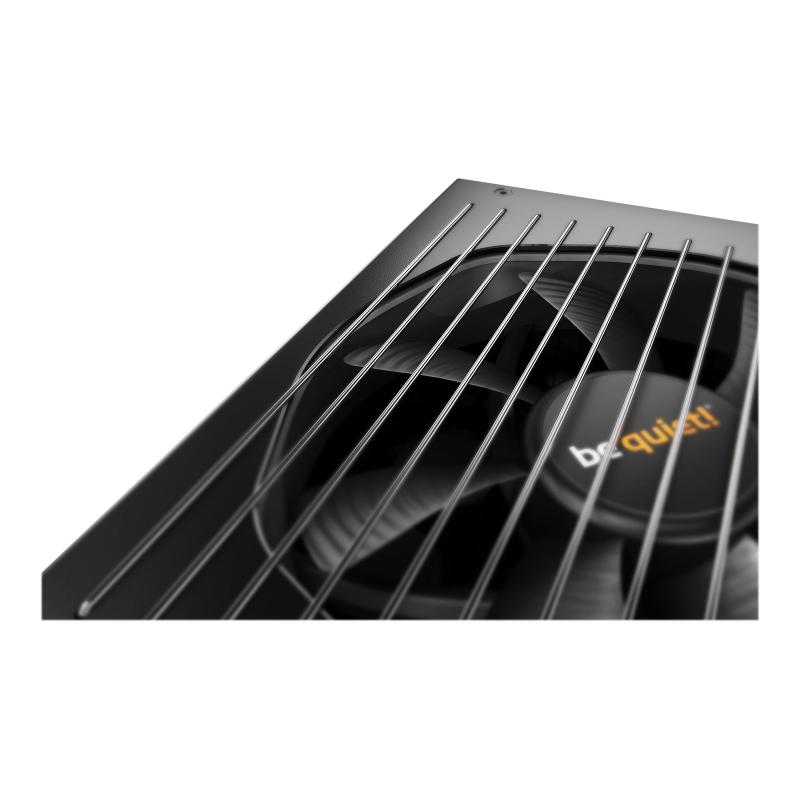

135 mm fan
Features
Over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, Multi-GPU Technologies Supported, 4 x 12V rail, thermal protection, DC-DC technology, fluid dynamic bearing cooling fan, Synchronous Rectifier (SR) technology
Compliant Standards
BSMI, CB, FCC, cTUVus, ERP, EAC, RCM, TUV Rheinland, CU
Environmental Standards
ENERGY STAR
Yes
Manufacturer Warranty
Service & Support
Limited warranty - 5 years
Environmental Parameters
Max Operating Temperature
40 °C
Sound Emission
11.15 dBA
Dimensions & Weight
Width
15 cm
Depth
17 cm
Height
8.6 cm
Weight
1.85 kg
Dimensions & Weight (Shipping)
Shipping Width
24.8 cm
Shipping Depth
32.8 cm
Shipping Height
10.2 cm
Shipping Weight
3.57 kg
