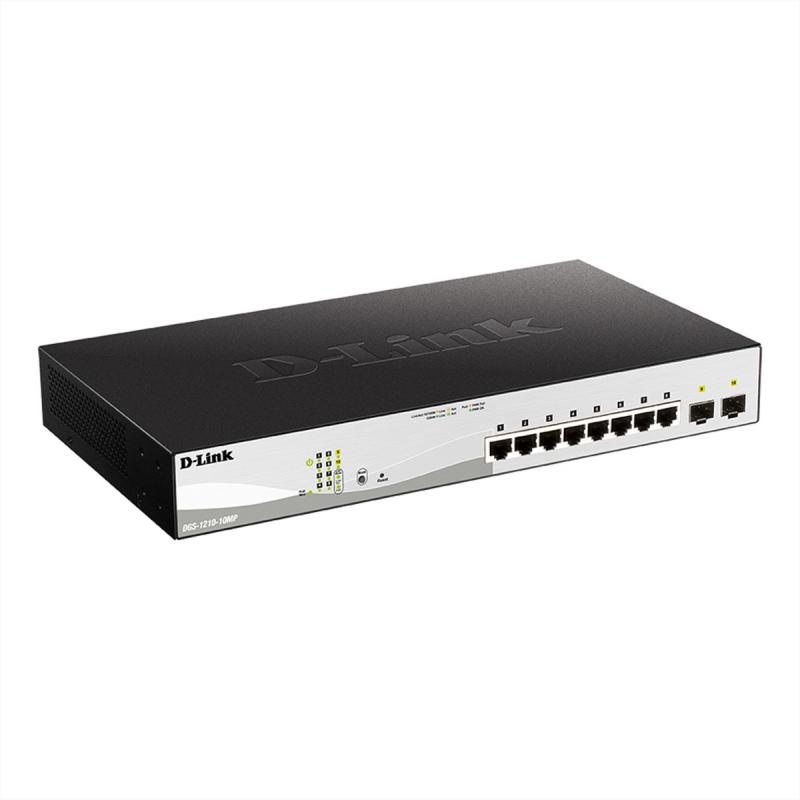

D-Link DLink Switch DGS-1210-10MP E DGS121010MP E (DGS-1210-10MP/E)

Find suitable products

D-Link DGS 1210-10MP - Switch - L2+ - smart - 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP - desktop, rack-mountable - PoE+ (130 W)

View data sheet
Add to comparison list

Category (Netzwerktechnik): Network Equipment
Network Equipment
OEM: DGS-1210-10MP/E
EAN: 0790069467714
SKU: 141946 (141946)
Manufacturer: D-Link
Master carton: 0.0000
Type: Switch
Customs tariff number: 85176200
UNSPSC: 43222612
eClass: 19-03-01-17
eClass V7: 19-17-01-06
Dimensions (Girth): 400 x 319 x 91 (1220)
Type: Switch
Amount of ports: 8
Transmission rate: 1Gbps

Description
Features
Specifications
Product safety

Cost-efficient and ?exible solution for expanding any business network.

Powerful, yet cost-efficient
The D-Link DGS-1210 series smart managed switches provide increased Power over Ethernet (PoE) output, a range of physical interface types, multiple management interfaces, and advanced Layer 2 features. With all of these features combined, the DGS-1210 series provides a cost-efficient and flexible solution for expanding any business network.
PoE support
Using the switch's management interface, an administrator can control various PoE functions, such as remotely rebooting cameras or access points, from anywhere on the network, including over the Internet. They also support time-based PoE, which allows administrators to set a time window that determines when each port's PoE power is turned on and off.
Automatic configuration
The DGS-1210 series supports Auto Voice VLAN and Surveillance Mode, which allow voice and video traffic to be automatically identified and handled differently to regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied. Surveillance Mode detects compatible ONVIF cameras and places them in a surveillance VLAN, allowing a single switch to be used for voice, video, and data, removing the need for dedicated hardware and reducing maintenance costs.
Extensive management and Layer 2 features
The DGS-1210 series comes equipped with a complete lineup of L2 features, including IGMP snooping, port mirroring, Spanning tree protocol (STP), and link aggregation control protocol (LACP). The IEEE 802.3x flow control function allows servers to directly connect to the switch for fast, reliable data transfers. The series also supports advanced features such as static routing, which allows for communication between different user groups in different VLAN segments in a network. The switch can directly handle inter VLAN routing using multiple interfaces, making the network run faster and more efficiently. And, because the switches can manage internal routing, the network router can be assigned to handle external traffic routing only.

General

Device Type

Switch - 10 ports - L2+ - smart

Enclosure Type

Desktop, rack-mountable

Subtype

Gigabit Ethernet

Ports

8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP

Power Over Ethernet (PoE)

PoE+

PoE Budget

130 W

Performance

Switching capacity: 20 Gbps ¦ Forwarding performance (64-byte packet size): 14.88 Mpps

Capacity

Static MAC entries: up to 256 ¦ IPv4 routes: 124 ¦ IPv6 routes: 50

MAC Address Table Size

8K entries

Jumbo Frame Support

10000 bytes

Routing Protocol

IGMPv2, IGMP, static IP routing, IGMPv3, MLDv2, MLD

Remote Management Protocol

SNMP 1, RMON 1, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH-2, CLI

Encryption Algorithm

MD5, TLS 1.0, PEAP, TTLS

Authentication Method

RADIUS, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)

Features

Flow control, full duplex capability, BOOTP support, auto-uplink (auto MDI/MDI-X), DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Quality of Service (QoS), Safeguard Engine, D-Link Green Technology, fanless, LLDP support, DHCP client, Multicast filtering function, LLDP-MED, Extensive Access Control List (ACL) support, Weighted Round Robin (WRR), loopback detection, 4.1Mbit packet buffer, Asymmetric VLAN, auto voice VLAN, anti-ARP spoofing

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az

RAM

128 MB DDR3 SDRAM

Flash Memory

32 MB

Status Indicators

Power, link/activity/speed

Expansion / Connectivity

Interfaces

8 x 1000Base-T RJ-45 PoE+ ¦ 2 x Gigabit LAN SFP

Power

Power Device

Internal power supply

Voltage Required

AC 100-240 V (50/60 Hz)

Power Consumption Stand by

5.2 Watt

Miscellaneous

MTBF

1,274,005 hours

Compliant Standards

FCC Class A certified, UL, BSMI, CB, CCC, VCCI Class A

Localisation

Europe

Dimensions & Weight

Width

33 cm

Depth

18 cm

Height

4.4 cm

Weight

1.77 kg

Manufacturer Warranty

Service & Support

Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature

-5 °C

Max Operating Temperature

50 °C

Humidity Range Operating

0 - 95%

Min Storage Temperature

-20 °C

Max Storage Temperature

70 °C

Humidity Range Storage

0 - 95%

Address

Name

D-Link

dce-vertriebsanfrage@dlink.com

Website

https://www.dlink.com/

Telephone

+49 (0)6196 /77 99-0

Fax

+ 49 (0)6196 /77 99-300

Street

Schwalbacher Str. 74

Postcode

65760

City

Eschborn

Country
