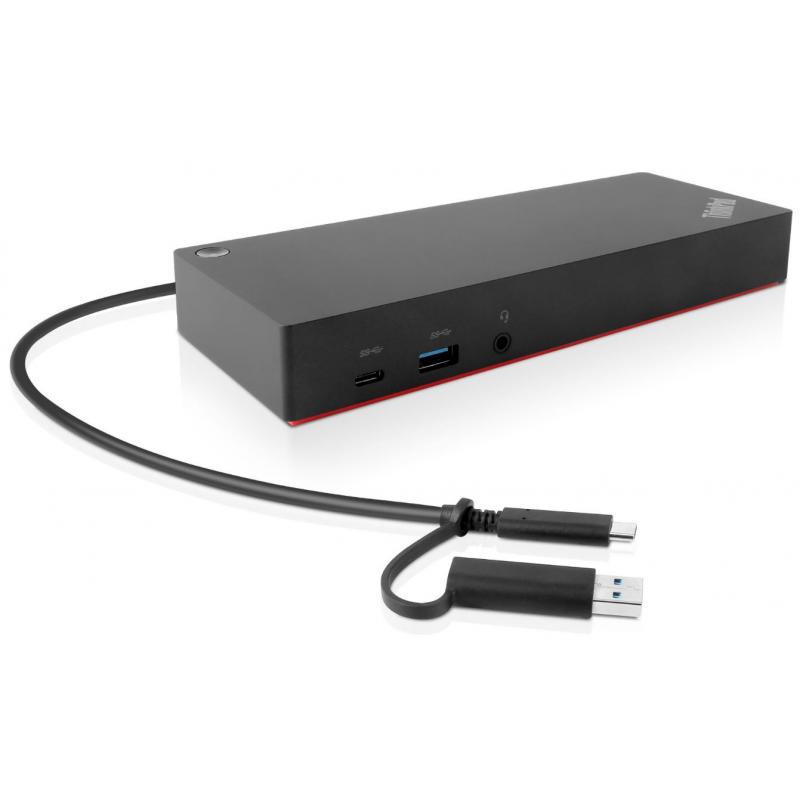

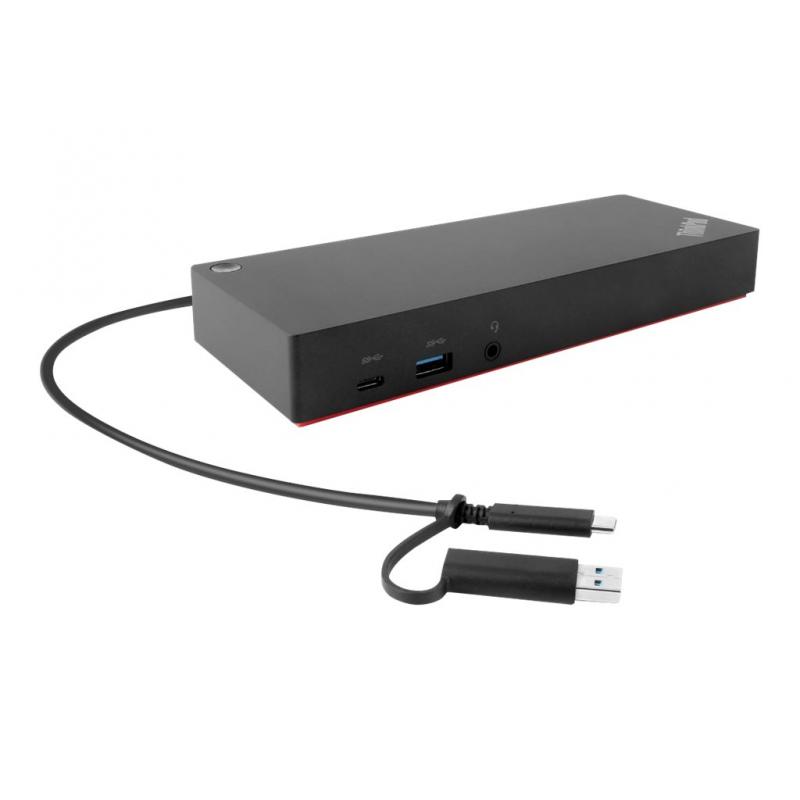

Lenovo ThinkPad Hybrid USB-C with USB-A Dock - Docking station - USB-C - 2 x HDMI, 2 x DP - GigE - 135 Watt - for Miix 520-12IKB; Tablet 10; ThinkPad E480; E580; L380; L380 Yoga; L470; L480; L580; P51s; P52s; T25; T470; T470p; T470s; T480; T480s; T570; T580; X1 Carbon; X1 Tablet; X1 Yoga; X270; X280; ThinkPad Yoga 370

Qty:

Category (Zubehör Notebook)
PC Systems
Notebook Accessories
OEM
40AF0135EU
EAN
0191999788403
SKU
lenac000032 (109227)
Manufacturer
Lenovo
Type
Charging / Docking station
Line
Lenovo ThinkPad
Model
ThinkPad E480
Color
Black
Customs tariff number
84718000
UNSPSC
43211602
eClass
19-01-92-01
eClass V7
19-01-92-01
Dimensions (Girth)
270 x 160 x 90 (770)
Type
Charging / Docking station

The ThinkPad Hybrid USB-C with USB-A dock expands the capabilities of most any laptop, new or old, making it perfect for enterprise customers with mixed-PC or shared-desk environments. Featuring enterprise-class manageability like PXE boot and MAC address Pass-through the ThinkPad Hybrid USB-C with USB-A offers three high-speed USB3.1 ports, up to dual UHD 4K resolution and rapid charging on ThinkPad notebooks.

  • One dock for all notebooks
    Enhances the performance of Lenovo USB-C notebooks and tablets through USB-C connection, as well as previous generation and market notebooks through the USB-C to USB-A adaptor.
  • Rich performance
    Provides up to dual UHD 4K display with DP and HDMI ports. Up to 10 Gbps data transfer speed on three USB3.1 gen2 ports, and rapid charging for ThinkPad family notebooks.
  • Enterprise manageability & simplification
    Host of manageability features like PXE boot, Wake-On-Lan from sleep mode, and MAC address pass-through. Ideal for enterprise customers.

General
Product Type
Docking station
Width
21 cm
Depth
8 cm
Height
3 cm
Weight
475 g
Localisation
Indonesia, Vietnam, Europe
Video
Max Resolution Details
4096 x 2160 - 60 Hz (DisplayPort only) ¦ 4096 x 2160 - 60 Hz (HDMI only) ¦ 3840 x 2160@60Hz, 3840 x 2160@60Hz (DisplayPort1 and DisplayPort2 simultaneously) ¦ 3840 x 2160@60Hz, 3840 x 2160@60Hz (HDMI1 and HDMI2 simultaneously) ¦ 3840 x 2160@60Hz, 3840 x 2160@60Hz (DisplayPort and HDMI simultaneously)
Networking
Data Link Protocol
Gigabit Ethernet
Expansion / Connectivity
Interfaces

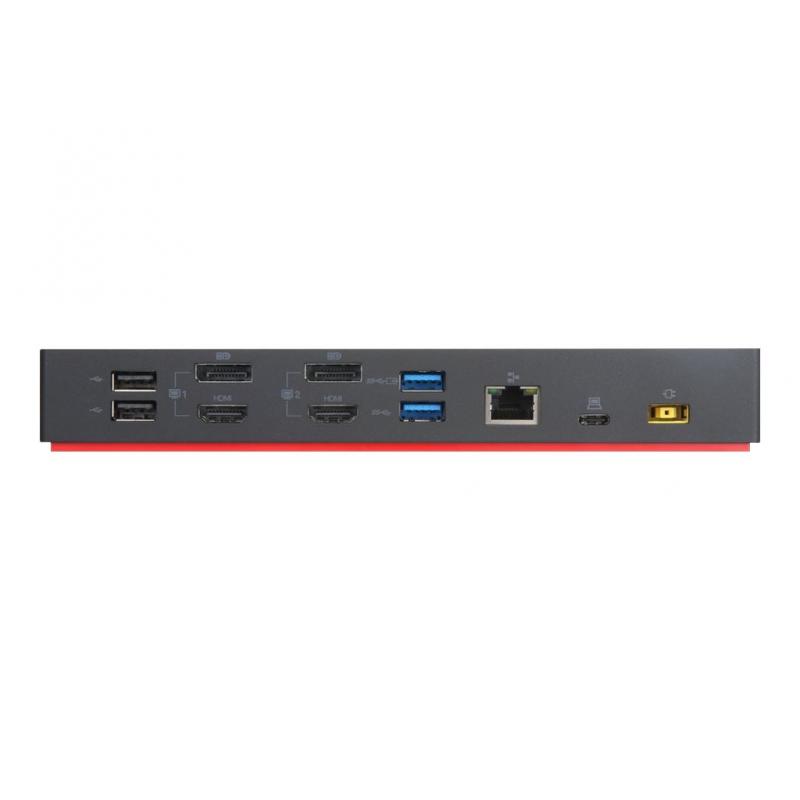

2 x USB 3.1 Gen 2 - 9 pin USB Type A ¦ 1 x USB 3.1 Gen 2 with Always-on charging - 9 pin USB Type A ¦ 2 x USB 2.0 - 4 pin USB Type A ¦ 1 x USB 3.1 Gen 2 - 24 pin USB-C ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 2 x audio / video - DisplayPort - 20 pin DisplayPort ¦ 2 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x audio - headphones/microphone - mini-phone 3.5 mm 4-pole
Miscellaneous
Cables Included
1 x USB-C cable with USB-C to USB-A dongle - external
Features
Security lock slot (cable lock sold separately), wake on LAN, Preboot Execution Environment (PXE) support, MAC address pass-through
Compliant Standards
TUV, VCCI, BSMI, NOM, CB, FCC, SII, KCC, ICES, cULus, Kvalitet, EAC, RCM, LoA
Power
Power Device
Power adapter
Power Provided
135 Watt
System Requirements
OS Required
Windows 10 (32/64 bits)
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Dimensions & Weight (Shipping)
Shipping Width
27 cm
Shipping Depth
16.5 cm
Shipping Height
8.8 cm
Shipping Weight
1.35 kg
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
35 °C
Compatibility Information
Designed For
Lenovo IdeaPad 3 14ALC6 82KT ¦ Lenovo IdeaPad 3 14ITL05 81X7 ¦ Lenovo IdeaPad 3 14ITL6 82H7 ¦ Lenovo IdeaPad 3 15ALC6 82KU ¦ Lenovo IdeaPad 3 15ITL05 81X8 ¦ Lenovo IdeaPad 3 15ITL6 82H8 ¦ Lenovo IdeaPad 3 17ALC6 82KV ¦ Lenovo IdeaPad 3 17ITL6 82H9 ¦ Lenovo IdeaPad 5 Pro 14ITL6 82L3 ¦ Lenovo IdeaPad 5 Pro 16ACH6 82L5 ¦ Lenovo IdeaPad 5 Pro 16IHU6 82L9 ¦ Lenovo IdeaPad Creator 5 16ACH6 82L6 ¦ Lenovo IdeaPad Flex 5 14ALC05 82HU ¦ Lenovo IdeaPad Flex 5 15ALC05 82HV ¦ Lenovo IdeaPad S540-13ITL 82H1 ¦ Lenovo IdeaPad Slim 7 14ARE05 82A5 ¦ Lenovo IdeaPad Slim 7 15IIL05 82AD ¦ Lenovo IdeaPad Slim 9 14ITL5 82D2 ¦ Lenovo ThinkBook 13s G2 ARE 20WC ¦ Lenovo ThinkBook 13s G2 ITL 20V9 ¦ Lenovo ThinkBook 14 G2 ITL 20VD ¦ Lenovo ThinkBook 14s G2 ITL 20VA ¦ Lenovo ThinkBook 14s Yoga ITL 20WE ¦ Lenovo ThinkBook 15 G2 ARE 20VG ¦ Lenovo ThinkBook 15 G2 ITL 20VE ¦ Lenovo ThinkBook Plus G2 ITG 20WH ¦ Lenovo ThinkPad E14 Gen 2 20TA, 20TB ¦ Lenovo ThinkPad E14 Gen 3 20Y7 ¦ Lenovo ThinkPad E15 Gen 2 20TD, 20TE ¦ Lenovo ThinkPad L13 Gen 2 20VH, 20VJ ¦ Lenovo ThinkPad L13 Yoga Gen 2 20VK, 20VL ¦ Lenovo ThinkPad L14 Gen 2 20X1, 20X2, 20X5, 20X6 ¦ Lenovo ThinkPad L15 Gen 2 20X3, 20X4, 20X7, 20X8 ¦ Lenovo ThinkPad P14s Gen 1 20Y1, 20Y2 ¦ Lenovo ThinkPad P14s Gen 2 21A0 ¦ Lenovo ThinkPad P15s Gen 2 20W7 ¦ Lenovo ThinkPad T14 Gen 2 20W0, 20W1, 20XK, 20XL ¦ Lenovo ThinkPad T14s Gen 2 20WM, 20WN ¦ Lenovo ThinkPad T15 Gen 2 20W4, 20W5 ¦ Lenovo ThinkPad X1 Carbon Gen 9 20XW, 20XX ¦ Lenovo ThinkPad X1 Nano Gen 1 20UN, 20UQ ¦ Lenovo ThinkPad X1 Titanium Yoga Gen 1 20QA, 20QB ¦ Lenovo ThinkPad X1 Yoga Gen 6 20XY, 20Y0 ¦ Lenovo ThinkPad X12 Detachable 20UV, 20UW ¦ Lenovo ThinkPad X13 Gen 2 20WK, 20WL ¦ Lenovo ThinkPad X13 Yoga Gen 2 20W8, 20W9 ¦ Lenovo V14 G2 ALC 82KC ¦ Lenovo V15 G2 ALC 82KD ¦ Lenovo Yoga Duet 7 13ITL6 82MA ¦ Lenovo Yoga Slim 7 Pro 14ARH5 82LA ¦ Lenovo Yoga Slim 7 Pro 14IHU5 82NC ¦ Lenovo Yoga Slim 7 Pro 14ITL5 82FX
