Lenovo ThinkPad Thunderbolt 3 Dock Gen2 - Port replicator - Thunderbolt 3 - 2 x HDMI, 2 x DP, Thunderbolt - GigE - 135 Watt - Europe - for ThinkPad L480 20LS, 20LT; P51s 20HB, 20HC, 20JY, 20K0; P52s 20LB, 20LC; T470 20HD, 20HE, 20JM, 20JN; T480 20L5, 20L6; T480s 20L7, 20L8; T570 20H9, 20HA, 20JW, 20JX; T580 20L9, 20LA; X1 Yoga (2nd Gen) 20JD, 20JE, 20JF, 20JG; X1 Yoga (3rd Gen) 20LD, 20LE, 20LF, 20LG; X280 20KE, 20KF

Qty:

Category (Zubehör Notebook)
PC Systems
Notebook Accessories
OEM
40AN0135EU
EAN
0192158239569
SKU
lenac000067 (109233)
Manufacturer
Lenovo
Type
Charging / Docking station
Line
Lenovo ThinkPad
Color
Black; Red
Customs tariff number
84718000
UNSPSC
43211602
eClass
19-01-92-01
eClass V7
19-01-92-01
Dimensions (Girth)
270 x 165 x 75 (750)
Type
Charging / Docking station

Maximize your productivity with a Thunderbolt 3 Dock. Powerful, versatile and incredibly fast! This Intel Thunderbolt Chipset powered Thunderbolt Dock Gen 2 invented to boost productivity with extended compatibility on both USB-C and Thunderbolt enabled laptops. Expand your horizons with multiple 4K displays, and transfer files at record speed. It's everything you need to enhance your creativity and efficiency today.

General
Product Type
Port replicator
Width
22 cm
Depth
8 cm
Height
3 cm
Weight
525 g
Localisation
English / Europe
Video
Max Resolution Details
3840 x 2160 - 60 Hz (DisplayPort only) ¦ 3840 x 2160 - 60 Hz (HDMI only) ¦ 3840 x 2160 - 30 Hz (DisplayPort1 and DisplayPort2 simultaneously) ¦ 3840 x 2160 - 30 Hz (DisplayPort and HDMI simultaneously) ¦ 2560 x 1600@60Hz, 1920 x 1080@60Hz, 1920 x 1080@60Hz (DisplayPort1 and DisplayPort2 and HDMI simultaneously) ¦ 3840 x 2160@30Hz, 1920 x 1080@60Hz, 1920 x 1080@60Hz (DisplayPort1 and DisplayPort2 and HDMI simultaneously)
Networking
Data Link Protocol
Gigabit Ethernet
Expansion / Connectivity

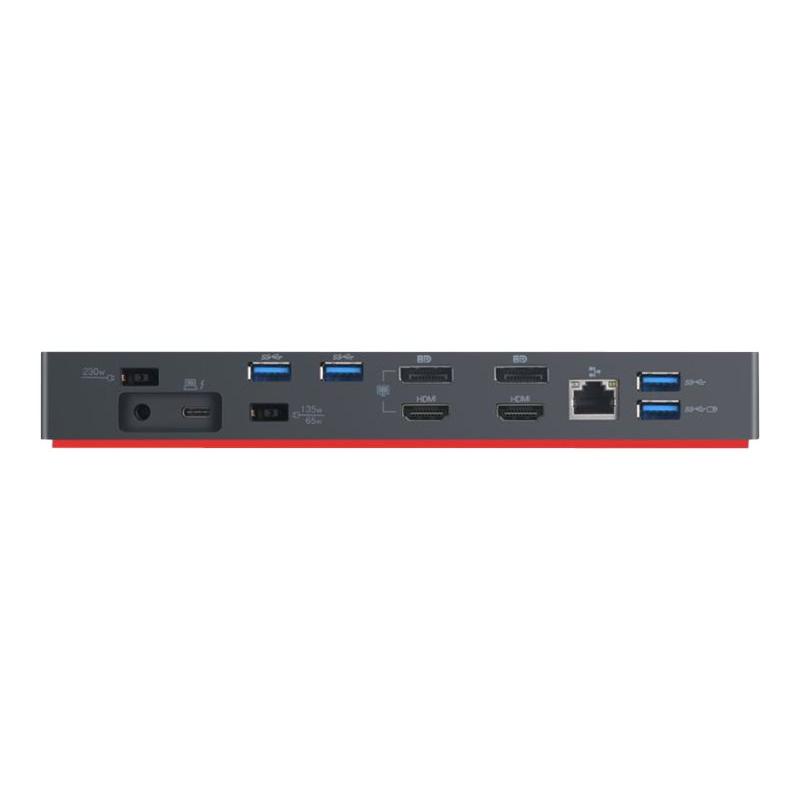

Interfaces
4 x USB 3.1 Gen 2 - 9 pin USB Type A ¦ 1 x USB 3.1 Gen 2 with Always-on charging - 9 pin USB Type A ¦ 1 x USB-C / Thunderbolt 3 - 24 pin USB-C ¦ 2 x audio / video - DisplayPort - 20 pin DisplayPort ¦ 2 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x audio - headphones/microphone - mini-phone 3.5 mm 4-pole ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45
Miscellaneous

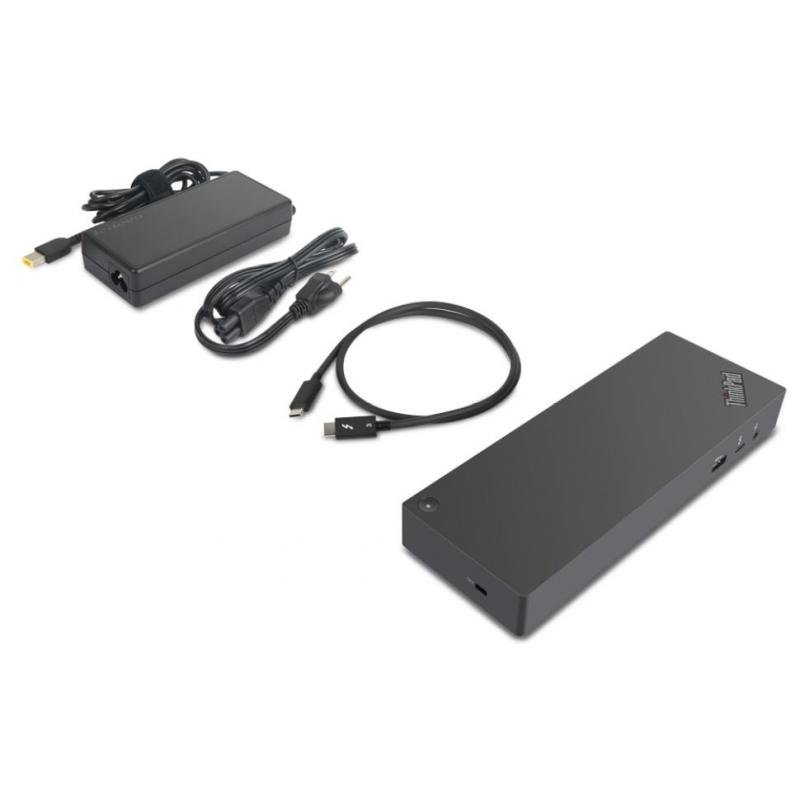

Cables Included
1 x Thunderbolt cable
Features
Security lock slot (cable lock sold separately), wake on LAN, Preboot Execution Environment (PXE) support
Security Slot Type
Kensington security slot
Power
Power Device
Power adapter
Power Provided
135 Watt
Manufacturer Warranty
Service & Support
Limited warranty - replacement - 3 years
Dimensions & Weight (Shipping)
Shipping Width
27 cm
Shipping Depth
16.4 cm
Shipping Height
7.5 cm
Shipping Weight
1.395 kg
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Compatibility Information
Designed For
Lenovo IdeaPad Slim 7 14ARE05 82A5 ¦ Lenovo IdeaPad Slim 7 15IMH05 82AE ¦ Lenovo ThinkPad E14 Gen 3 20YD ¦ Lenovo ThinkPad E14 Gen 4 21E3, 21E4, 21EB ¦ Lenovo ThinkPad E15 Gen 3 20YG ¦ Lenovo ThinkPad E15 Gen 4 21E6, 21ED ¦ Lenovo ThinkPad L13 Gen 2 20VH, 20VJ, 21AC ¦ Lenovo ThinkPad L13 Gen 3 21B9 ¦ Lenovo ThinkPad L13 Yoga Gen 2 20VK, 20VL, 21AE ¦ Lenovo ThinkPad L13 Yoga Gen 3 21BB ¦ Lenovo ThinkPad L14 Gen 1 20U2 ¦ Lenovo ThinkPad L14 Gen 2 20X1, 20X2 ¦ Lenovo ThinkPad L14 Gen 3 21C1, 21C2, 21C5, 21C6 ¦ Lenovo ThinkPad L15 Gen 1 20U4 ¦ Lenovo ThinkPad L15 Gen 2 20X3, 20X4 ¦ Lenovo ThinkPad L15 Gen 3 21C7 ¦ Lenovo ThinkPad P1 Gen 4 20Y3 ¦ Lenovo ThinkPad P14s Gen 1 20Y1, 20Y2 ¦ Lenovo ThinkPad P14s Gen 2 20VX, 20VY, 21A0, 21A1 ¦ Lenovo ThinkPad P14s Gen 3 21AK ¦ Lenovo ThinkPad P15s Gen 1 20T5 ¦ Lenovo ThinkPad P15s Gen 2 20W6, 20W7 ¦ Lenovo ThinkPad P15v Gen 3 21D8, 21D9 ¦ Lenovo ThinkPad T14 Gen 2 20W0, 20W1, 20XK, 20XL ¦ Lenovo ThinkPad T14 Gen 3 21AH ¦ Lenovo ThinkPad T14s Gen 1 20T1 ¦ Lenovo ThinkPad T14s Gen 2 20WN, 20XF, 20XG ¦ Lenovo ThinkPad T14s Gen 3 21BR, 21BS ¦ Lenovo ThinkPad T15 Gen 2 20W4, 20W5 ¦ Lenovo ThinkPad T15p Gen 3 21DA ¦ Lenovo ThinkPad T16 Gen 1 21BV ¦ Lenovo ThinkPad X1 Carbon Gen 10 21CB, 21CC ¦ Lenovo ThinkPad X1 Carbon Gen 8 20UA ¦ Lenovo ThinkPad X1 Carbon Gen 9 20XW, 20XX ¦ Lenovo ThinkPad X1 Extreme Gen 3 20TK, 20TL ¦ Lenovo ThinkPad X1 Extreme Gen 4 20Y5, 20Y6 ¦ Lenovo ThinkPad X1 Nano Gen 1 20UN, 20UQ ¦ Lenovo ThinkPad X1 Nano Gen 2 21E8 ¦ Lenovo ThinkPad X1 Titanium Yoga Gen 1 20QA, 20QB ¦ Lenovo ThinkPad X1 Yoga Gen 6 20XY, 20Y0 ¦ Lenovo ThinkPad X1 Yoga Gen 7 21CD, 21CE ¦ Lenovo ThinkPad X12 Detachable 20UV ¦ Lenovo ThinkPad X13 Gen 1 20T3, 20UG ¦ Lenovo ThinkPad X13 Gen 2 20XH, 20XJ ¦ Lenovo ThinkPad X13 Gen 3 21BN ¦ Lenovo ThinkPad X13 Yoga Gen 1 20SY ¦ Lenovo ThinkPad X13 Yoga Gen 2 20W8, 20W9 ¦ Lenovo ThinkPad X13 Yoga Gen 3 21AX ¦ Lenovo ThinkPad Z13 Gen 1 21D3
