Lenovo ThinkPad Thunderbolt 3 Workstation Dock Gen 2 - Port replicator - Thunderbolt 3 - 2 x HDMI, 2 x DP, Thunderbolt - GigE - 230 Watt - Europe - for ThinkPad P14s Gen 2; P15s Gen 2; T15 Gen 2; X1 Titanium Yoga Gen 1; X13 Yoga Gen 2

Qty:

Category (Zubehör Notebook)
PC Systems
Notebook Accessories
OEM
40ANY230EU
EAN
0193638285922
SKU
lenac000068 (109235)
Manufacturer
Lenovo
Type
Port replicator
Line
Lenovo ThinkPad
Color
Black
Customs tariff number
84733080
UNSPSC
43211602
eClass
19-01-92-01
eClass V7
19-01-92-01
Dimensions (Girth)
270 x 195 x 85 (830)
Type
Port replicator

Unlock more ways to be productive with the new generation of workstation dock. The ThinkPad Thunderbolt 3 Workstation Dock Gen 2 turns your ThinkPad Mobile Workstation into a productivity powerhouse, adding support for multi 4K displays, optimized one cable charging, a slew of expansion ports, and advanced network manageability features.

General
Product Type
Port replicator
Width
22 cm
Depth
8 cm
Height
3 cm
Weight
525 g
Localisation
English / Europe
Networking
Data Link Protocol
Gigabit Ethernet
Expansion / Connectivity
Interfaces

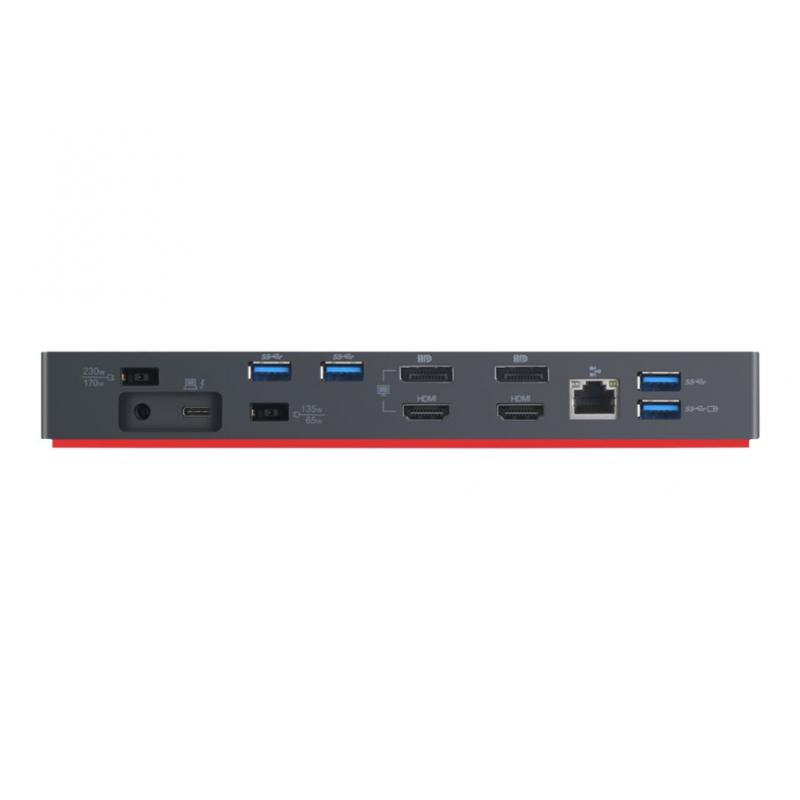

4 x USB 3.1 Gen 2 - 9 pin USB Type A ¦ 1 x USB 3.1 Gen 2 with Always-on charging - 9 pin USB Type A ¦ 1 x USB-C / Thunderbolt 3 - 24 pin USB-C ¦ 2 x audio / video - DisplayPort - 20 pin DisplayPort ¦ 2 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x audio - headphones/microphone - mini-phone 3.5 mm 4-pole ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45
Miscellaneous
Cables Included
1 x Thunderbolt cable
Features
Security lock slot (cable lock sold separately), wake on LAN, Preboot Execution Environment (PXE) support
Security Slot Type
Kensington security slot
Power
Power Device
Power adapter
Power Provided
230 Watt
Dimensions & Weight (Shipping)
Shipping Width
27 cm
Shipping Depth
16.4 cm
Shipping Height
7.5 cm
Shipping Weight
1.395 kg
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Compatibility Information
Designed For
Lenovo ThinkBook 13s-IML 20RR ¦ Lenovo ThinkBook 14s-IML 20RS ¦ Lenovo ThinkPad E14 20RA, 20RB ¦ Lenovo ThinkPad E15 20RD, 20RE ¦ Lenovo ThinkPad L13 20R3, 20R4 ¦ Lenovo ThinkPad L13 Gen 2 20VH, 20VJ ¦ Lenovo ThinkPad L13 Yoga 20R5, 20R6 ¦ Lenovo ThinkPad L13 Yoga Gen 2 20VK ¦ Lenovo ThinkPad L14 Gen 1 20U1, 20U2 ¦ Lenovo ThinkPad L14 Gen 2 20X1, 20X2 ¦ Lenovo ThinkPad L15 Gen 1 20U3, 20U4 ¦ Lenovo ThinkPad L15 Gen 2 20X3, 20X4 ¦ Lenovo ThinkPad L490 20Q5, 20Q6 ¦ Lenovo ThinkPad L590 20Q7, 20Q8 ¦ Lenovo ThinkPad P1 (2nd Gen) 20QT, 20QU ¦ Lenovo ThinkPad P14s Gen 1 20S4, 20S5, 20Y1, 20Y2 ¦ Lenovo ThinkPad P14s Gen 2 20VX, 20VY ¦ Lenovo ThinkPad P15 Gen 1 20SU ¦ Lenovo ThinkPad P15s Gen 1 20T5 ¦ Lenovo ThinkPad P15s Gen 2 20W6, 20W7 ¦ Lenovo ThinkPad P17 Gen 1 20SQ ¦ Lenovo ThinkPad P43s 20RH, 20RJ ¦ Lenovo ThinkPad P53 20QN, 20QQ ¦ Lenovo ThinkPad P53s 20N6, 20N7 ¦ Lenovo ThinkPad P73 20QR, 20QS ¦ Lenovo ThinkPad T14 Gen 1 20S0, 20S1, 20S2, 20S3, 20UD, 20UE ¦ Lenovo ThinkPad T14 Gen 2 20W0, 20W1 ¦ Lenovo ThinkPad T14s Gen 1 20T0, 20T1, 20UH, 20UJ ¦ Lenovo ThinkPad T14s Gen 2 20WN ¦ Lenovo ThinkPad T15 Gen 1 20S7 ¦ Lenovo ThinkPad T15 Gen 2 20W4, 20W5 ¦ Lenovo ThinkPad T15g Gen 1 20UR, 20US ¦ Lenovo ThinkPad T490 20Q9, 20QH, 20RX, 20RY ¦ Lenovo ThinkPad T495 20NJ ¦ Lenovo ThinkPad T495s 20QJ, 20QK ¦ Lenovo ThinkPad X1 Carbon (7th Gen) 20QD, 20QE, 20R1, 20R2 ¦ Lenovo ThinkPad X1 Carbon Gen 8 20UA ¦ Lenovo ThinkPad X1 Carbon Gen 9 20XW, 20XX ¦ Lenovo ThinkPad X1 Extreme (2nd Gen) 20QV, 20QW ¦ Lenovo ThinkPad X1 Extreme Gen 3 20TK, 20TL ¦ Lenovo ThinkPad X1 Titanium Yoga Gen 1 20QA, 20QB ¦ Lenovo ThinkPad X1 Yoga (4th Gen) 20QF, 20QG, 20SA, 20SB ¦ Lenovo ThinkPad X1 Yoga Gen 6 20XY, 20Y0 ¦ Lenovo ThinkPad X12 Detachable 20UV ¦ Lenovo ThinkPad X13 Gen 1 20T3, 20UF, 20UG ¦ Lenovo ThinkPad X13 Yoga Gen 1 20SX, 20SY ¦ Lenovo ThinkPad X13 Yoga Gen 2 20W8, 20W9 ¦ Lenovo ThinkPad X390 20SC, 20SD ¦ Lenovo ThinkPad X395 20NL, 20NM
