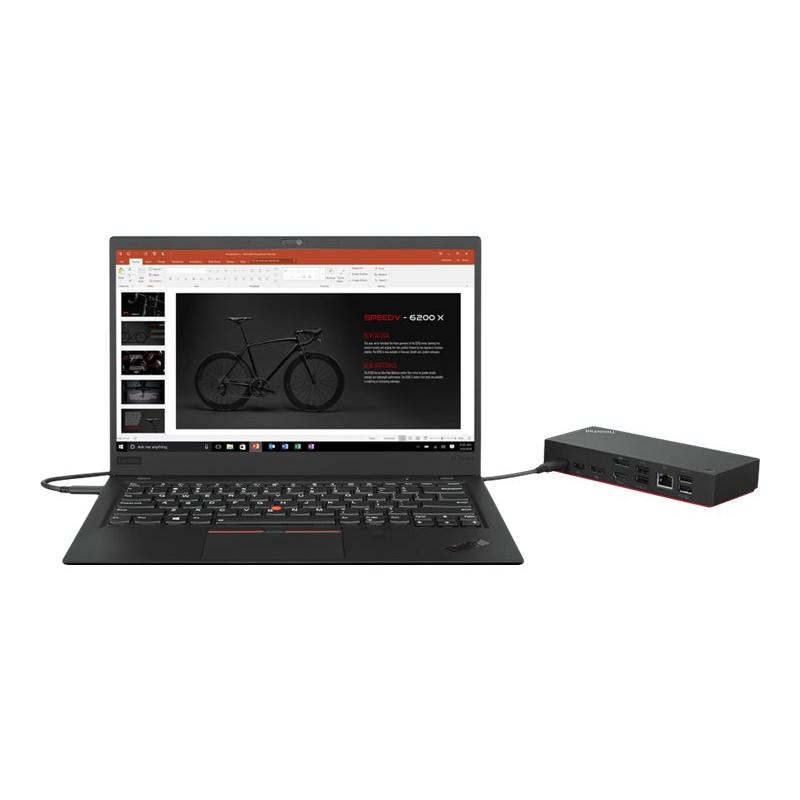

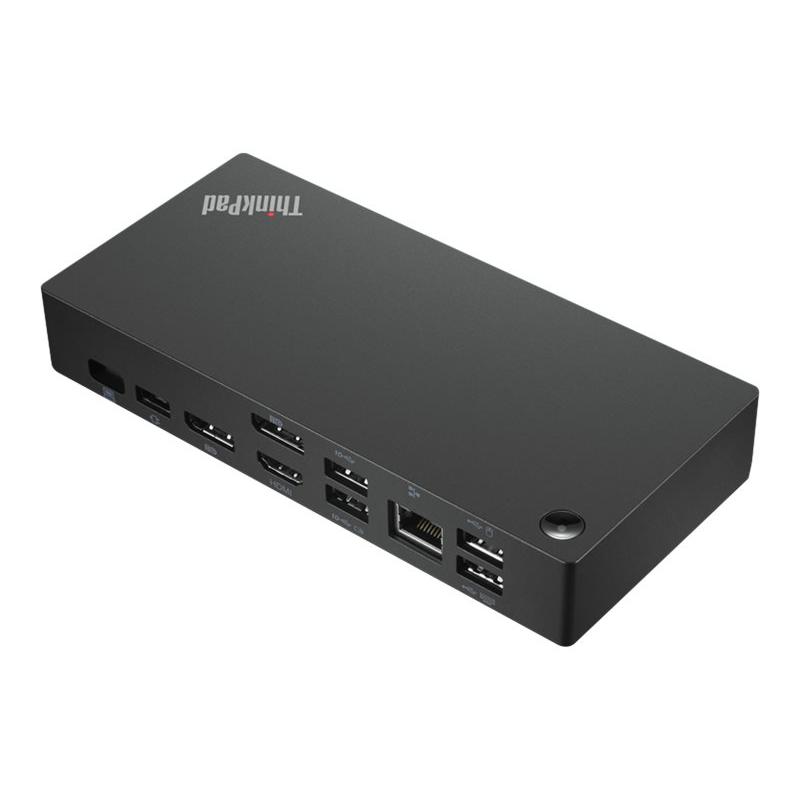

Lenovo ThinkPad Universal USB-C USBC Dock (40AY0090EU)

Find suitable products

Lenovo ThinkPad Universal USB-C Dock - Docking station - USB-C - HDMI, 2 x DP - GigE - 90 Watt - for K14 Gen 1; ThinkPad E14 Gen 3; E14 Gen 4; P15v Gen 3; X1 Fold 16 Gen 1; Yoga Slim 7 Pro 14

View data sheet
Add to comparison list

Category (PC Systeme): PC Systems
Notebook Accessories
OEM: 40AY0090EU
EAN: 0195348192095
SKU: 128365 (128365)
Manufacturer: Lenovo
Type: Charging / Docking station
Line: Lenovo ThinkPad
Model: ThinkPad
Color: Black
Customs tariff number: 84718000
UNSPSC: 43211602
eClass: 19-01-92-01
eClass V7: 19-01-92-01
Dimensions (Girth): 205 x 155 x 75 (665)
Type: Charging / Docking station

Description
Features
Specifications

Lenovo understands that modern business depends on a wide variety of PCs and even brands to meet their business needs. To make this easier Lenovo USB-C dock is compatible with Lenovo notebooks as well as with notebooks from other manufacturers.

Broad compatibility
Lenovo Docking station is compatible with Lenovo and non-Lenovo notebooks to expand data, power, and video.
One connection, no limitations
Think of all the time you'd save if you could connect all your peripherals at once, transfer USB data at 10 Gbps speeds, have access to a stable, stress-free wired network connection.
Ready for your command
Completely control your ThinkPad systems with PXE Boot, System Wake-on-LAN from sleep mode, hibernate mode, and power off mode. It also supports passing ThinkPad MAC address through the dock. Those features are supported on selected ThinkPad notebooks.

General

Product Type

Docking station

Width

17.1 cm

Depth

8 cm

Height

3.075 cm

Weight

340 g

Enclosure Colour

Black

Localisation

English / Vietnam, South Korea, Europe

Video

Max Resolution Details

3840 x 2160 - 60 Hz (Dual Display) ¦ 3840 x 2160 - 30 Hz (Triple Display)

Networking

Data Link Protocol

Gigabit Ethernet

Expansion / Connectivity

Interfaces

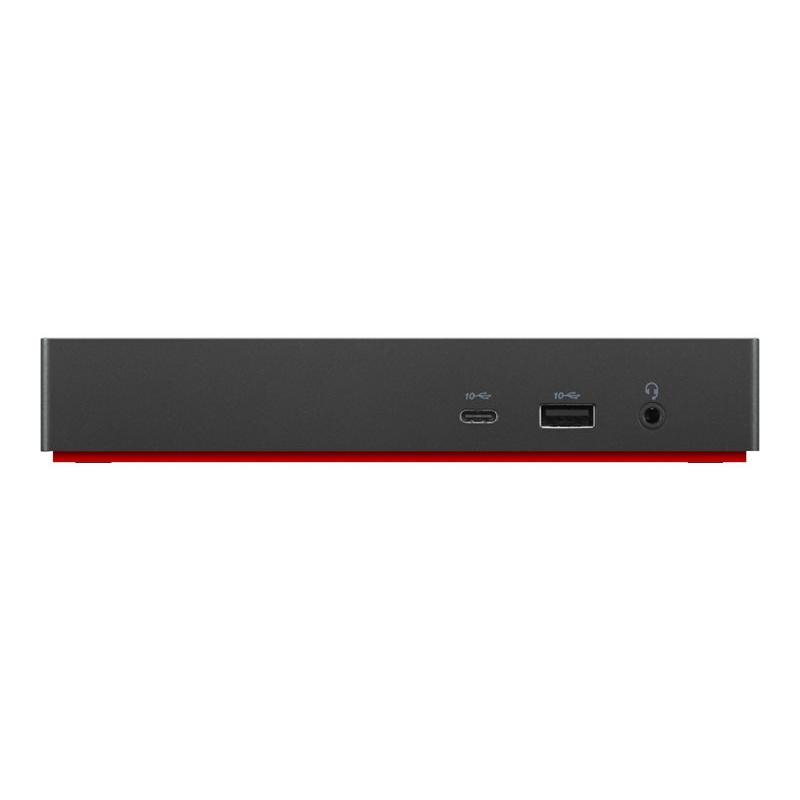

USB 3.2 Gen 2 with Always-on charging ¦ 2 x USB 3.2 Gen 2 ¦ 1 x USB-C - 24 pin USB-C ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 2 x audio / video - DisplayPort - 20 pin DisplayPort ¦ 1 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x audio - headphones/microphone - mini-phone 3.5 mm 4-pole ¦ 2 x USB 2.0 - 4 pin USB Type A

Miscellaneous

Cables Included

1 x USB-C to USB-C cable - external

Features

Security lock slot (cable lock sold separately), wake on LAN, Preboot Execution Environment (PXE) support, pass through MAC address, 65W output power with 90W power adapter connected, 100W output power with 135W power adapter connected

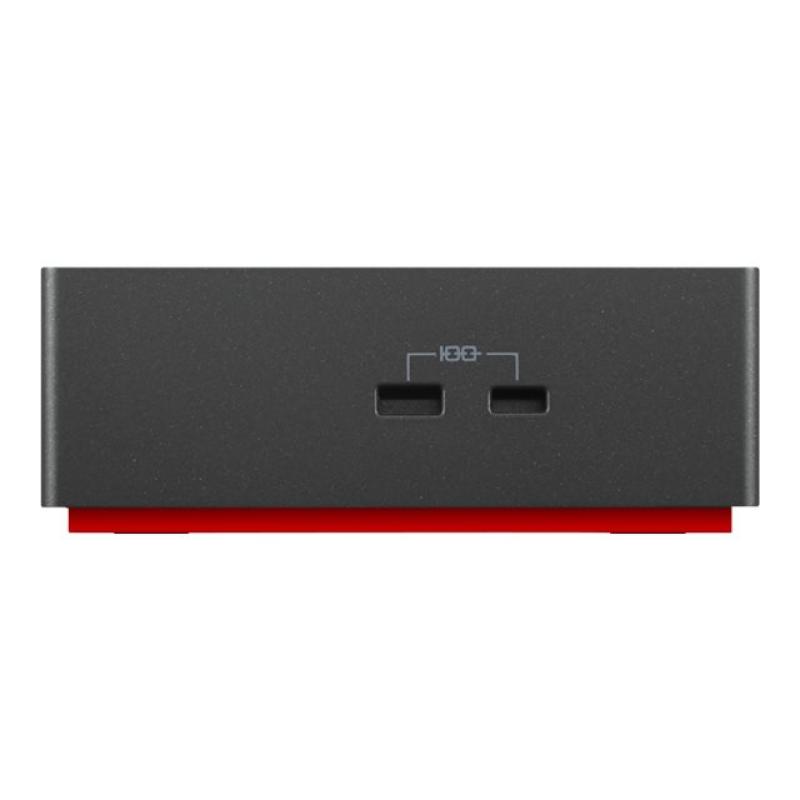

Security Slot Type

Kensington NanoSaver security slot / Kensington MicroSaver security slot

Compliant Standards

VCCI, BSMI, NOM, CB, FCC, SII, KCC, ICES, cULus, Kvalitet, EAC, RCM, Ukraine EMC DoC, DisplayPort 1.4, LoA, TUV Mark

Power

Power Device

Power adapter

Power Provided

90 Watt

System Requirements

OS Required

Microsoft Windows 7 / 10

Manufacturer Warranty

Service & Support

Limited warranty - replacement - 3 years

Dimensions & Weight (Shipping)

Shipping Width

21 cm

Shipping Depth

15.8 cm

Shipping Height

7.5 cm

Shipping Weight

955 g

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

35 °C

Compatibility Information

Designed For

Lenovo 13w Yoga 82S1, 82S2 ¦ Lenovo IdeaPad 5 14ABA7 82SE ¦ Lenovo IdeaPad 5 14IAL7 82SD ¦ Lenovo IdeaPad Slim 7 Pro 16ACH6 82QR ¦ Lenovo K14 Gen 1 21CU, 21CV ¦ Lenovo Lenovo Slim 7 14IAP7 82SX ¦ Lenovo ThinkBook 13s G4 IAP 21AR ¦ Lenovo ThinkBook 13x G2 IAP 21AT ¦ Lenovo ThinkBook 14 G4 ABA 21DK ¦ Lenovo ThinkBook 14 G4 IAP 21DH ¦ Lenovo ThinkBook 14 G4+ IAP 21CX ¦ Lenovo ThinkBook 14s Yoga G2 IAP 21DM ¦ Lenovo ThinkBook 15 G4 ABA 21DL ¦ Lenovo ThinkBook 15 G4 IAP 21DJ ¦ Lenovo ThinkPad E14 Gen 3 20Y7, 20YD, 20YE, 20YF ¦ Lenovo ThinkPad E14 Gen 4 21E3, 21E4 ¦ Lenovo ThinkPad E15 Gen 3 20YG, 20YH ¦ Lenovo ThinkPad E15 Gen 4 21E6 ¦ Lenovo ThinkPad L13 Gen 2 21AB, 21AC ¦ Lenovo ThinkPad L13 Gen 3 21B9 ¦ Lenovo ThinkPad L13 Yoga Gen 2 21AD, 21AE ¦ Lenovo ThinkPad L13 Yoga Gen 3 21B5, 21B6, 21BB ¦ Lenovo ThinkPad L14 Gen 2 20X5, 20X6 ¦ Lenovo ThinkPad L14 Gen 3 21C1, 21C2, 21C5, 21C6 ¦ Lenovo ThinkPad L15 Gen 2 20X7, 20X8 ¦ Lenovo ThinkPad L15 Gen 3 21C3, 21C7 ¦ Lenovo ThinkPad P1 Gen 5 21DC ¦ Lenovo ThinkPad P14s Gen 2 20VY, 21A0, 21A1 ¦ Lenovo ThinkPad P14s Gen 3 21AK, 21AL ¦ Lenovo ThinkPad P15s Gen 2 20W7 ¦ Lenovo ThinkPad P15v Gen 3 21D8, 21D9, 21EN ¦ Lenovo ThinkPad P16s Gen 1 21BT, 21BU ¦ Lenovo ThinkPad T14 Gen 2 20XK, 20XL ¦ Lenovo ThinkPad T14 Gen 3 21AH, 21AJ ¦ Lenovo ThinkPad T14s Gen 2 20XF, 20XG ¦ Lenovo ThinkPad T14s Gen 3 21BR, 21BS ¦ Lenovo ThinkPad T15p Gen 3 21DA ¦ Lenovo ThinkPad T16 Gen 1 21BV, 21BW ¦ Lenovo ThinkPad X1 Carbon Gen 10 21CB, 21CC ¦ Lenovo ThinkPad X1 Fold 16 Gen 1 21ES ¦ Lenovo ThinkPad X1 Nano Gen 2 21E8, 21E9 ¦ Lenovo ThinkPad X1 Titanium Yoga Gen 1 20QB ¦ Lenovo ThinkPad X1 Yoga Gen 7 21CD, 21CE ¦ Lenovo ThinkPad X13 Gen 2 20WL, 20XH, 20XJ ¦ Lenovo ThinkPad X13 Gen 3 21BN, 21CN ¦ Lenovo ThinkPad X13 Yoga Gen 2 20W8, 20W9 ¦ Lenovo ThinkPad X13 Yoga Gen 3 21AX ¦ Lenovo Yoga Slim 7 Pro 14IAH7 82UT ¦ Lenovo Yoga Slim 7 Pro 14IAP7 82SV ¦ Lenovo Yoga Slim 7 Pro 16ACH6 82QQ
