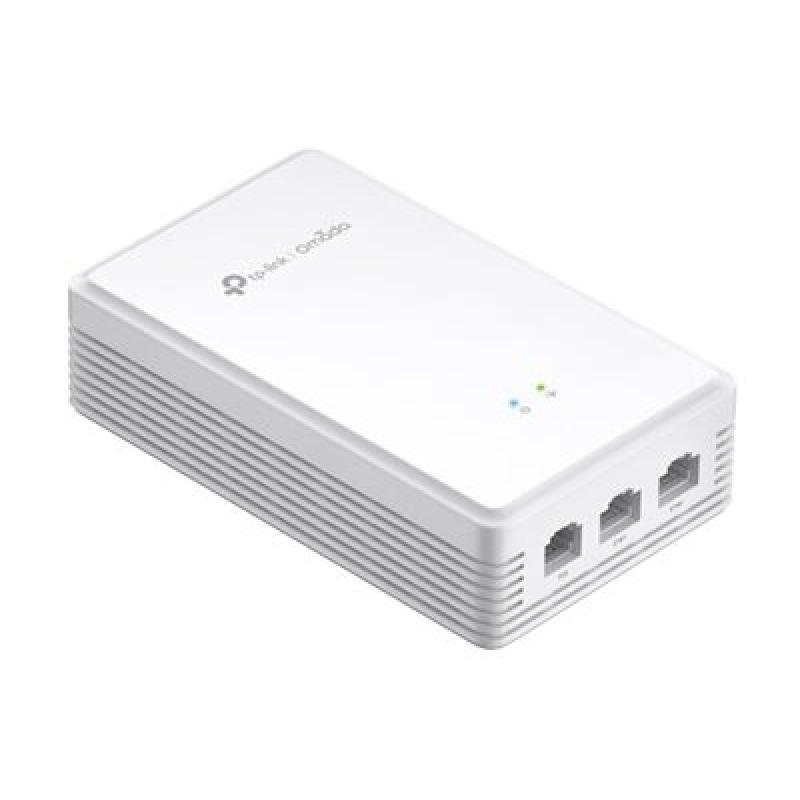

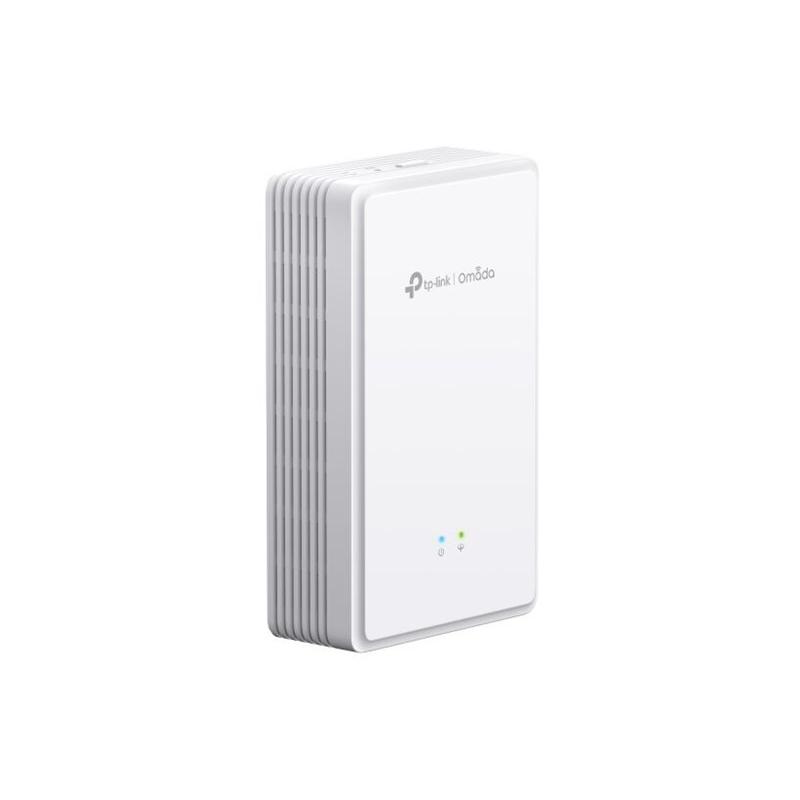

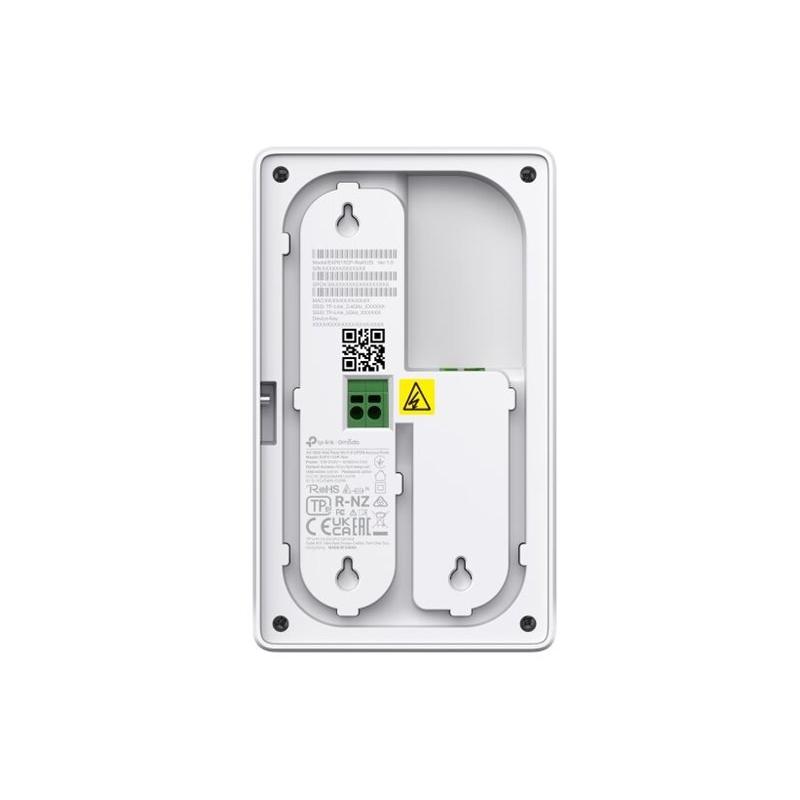

TP-LINK TPLINK Access Point Omada EAP615GP-WALL EAP615GPWALL (EAP615GP-WALL)
TP-LINK TPLINK Access Point Omada EAP615GP-WALL EAP615GPWALL (EAP615GP-WALL)
TP-LINK TPLINK Access Point Omada EAP615GP-WALL EAP615GPWALL (EAP615GP-WALL)
TP-LINK TPLINK Access Point Omada EAP615GP-WALL EAP615GPWALL (EAP615GP-WALL)
TP-LINK TPLINK Access Point Omada EAP615GP-WALL EAP615GPWALL (EAP615GP-WALL)
TP-LINK TPLINK Access Point Omada EAP615GP-WALL EAP615GPWALL (EAP615GP-WALL)
TP-LINK TPLINK Access Point Omada EAP615GP-WALL EAP615GPWALL (EAP615GP-WALL)
TP-LINK TPLINK Access Point Omada EAP615GP-WALL EAP615GPWALL (EAP615GP-WALL)
TP-LINK TPLINK Access Point Omada EAP615GP-WALL EAP615GPWALL (EAP615GP-WALL)
TP-LINK TPLINK Access Point Omada EAP615GP-WALL EAP615GPWALL (EAP615GP-WALL)

TP-LINK TPLINK Access Point Omada EAP615GP-WALL EAP615GPWALL (EAP615GP-WALL)

TP-Link Omada AX1800. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1201 Mbit/s. Security algorithms: SNMP, SNMPv2, SNMPv3, SSH, WPA-Personal, WPA2-Personal, WPA3-Personal. Ethernet LAN data rates: 1000 Mbit/s. Product colour: White

Qty:
View data sheet
Add to comparison list
Category (Netzwerktechnik)
Network Equipment
Network Equipment
OEM
EAP615GP-WALL
EAN
8885020620528
SKU
160563 (160563)
Manufacturer
TP-Link
Master carton
0.0000
Type
Access Point
Customs tariff number
85176200
UNSPSC
43222631
eClass
19-03-01-12
eClass V7
19-17-01-10
Dimensions (Girth)
75 x 162 x 112 (623)
Type
Access Point
Amount of ports
Other Amount of ports
Transmission rate
1.2 Gbps - 1.54 Gbps
Features
2.4 GHz
Yes
5 GHz
Yes
6 GHz
No
Maximum data transfer rate
1201 Mbit/s
Maximum data transfer rate (2.4 GHz)
574 Mbit/s
Maximum data transfer rate (5 GHz)
1201 Mbit/s
Ethernet LAN data rates
1000 Mbit/s
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Number of users
120 user(s)
Channel bandwidth
80 MHz
MIMO
Yes
MIMO type
Multi User MIMO
Spread spectrum method
OFDMA
Wi-Fi roaming
Yes
VLAN support
Yes
Rate limiting
Yes
Wireless isolation
Yes
Band steering
Yes
Airtime Fairness (ATF)
Yes
Quality of Service (QoS) support
Yes
BeamForming
Yes
Transmitting power (CE)
20 dBm
Transmitting power (FCC)
21 dBm
Management features
Web-based management
Yes
Syslog
Yes
Security
Security algorithms
SNMP, SNMPv2, SNMPv3, SSH, WPA-Personal, WPA2-Personal, WPA3-Personal
MAC address filtering
Yes
Service Set Identifier (SSID) features
Multiple SSIDs, SSID broadcast on/off
Number of SSID supported
16
Remote Authentication Dial-In User Service (RADIUS)
Yes
Design
Placement
Wall
Product colour
White
Reset button
Yes
LED indicators
Power
Antenna
Antenna type
Internal
Antenna direction type
Omni-directional
Antennas quantity
2
Antenna gain level (max)
6.5 dBi
Operational conditions
Operating relative humidity (H-H)
10 - 90 %
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90 %
Packaging content
Quantity per pack
1 pc(s)
Mounting kit
Yes
Quick start guide
Yes
Weight & dimensions
Width
143 mm
Depth
86 mm
Height
37.6 mm
Weight
320 g
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
USB 2.0 ports quantity
0
Power
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Input current
0.5 A
Power consumption (typical)
12.2 W
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Certification
CE, FCC, RoHS, IC
Sustainability
Sustainability compliance
Yes
Address
Name
TP-Link
Email
info.de@tp-link.com
Website
https://www.tp-link.com/
Telephone
+49 (0)211 8755 100
Fax
+49 (0)211 87551 041
Street
Am Trippelsberg 100
Postcode
40589
City
Düsseldorf
Country
DE
