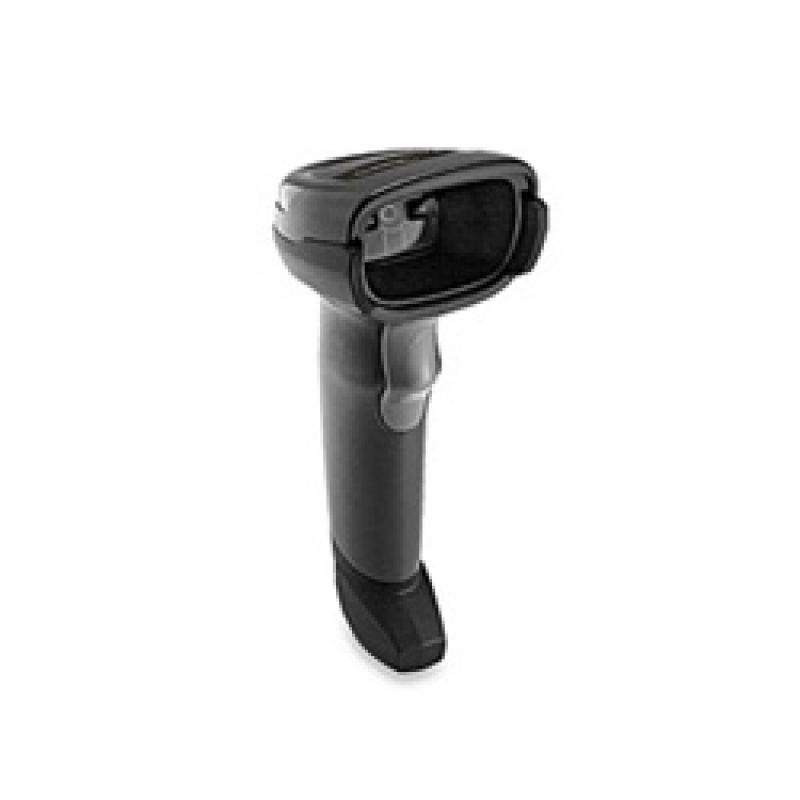

Zebra Handscanner DS2278 (DS2278-SR7U2100PRW) (DS2278SR7U2100PRW)
Zebra Handscanner DS2278 (DS2278-SR7U2100PRW) (DS2278SR7U2100PRW)
Zebra Handscanner DS2278 (DS2278-SR7U2100PRW) (DS2278SR7U2100PRW)
Zebra Handscanner DS2278 (DS2278-SR7U2100PRW) (DS2278SR7U2100PRW)
Zebra Handscanner DS2278 (DS2278-SR7U2100PRW) (DS2278SR7U2100PRW)
Zebra Handscanner DS2278 (DS2278-SR7U2100PRW) (DS2278SR7U2100PRW)

Zebra Handscanner DS2278 (DS2278-SR7U2100PRW) (DS2278SR7U2100PRW)

Zebra DS2278 - Standard Range (SR) - barcode scanner - handheld - 2D imager - 762 mm / sec - decoded - Bluetooth 4.0

Qty:

Category (Scanner)
Printers & Accessories
Scanners
OEM
DS2278-SR7U2100PRW
EAN
4060533180224
SKU
zesc0000009 (116607)
Manufacturer
Zebra
Master carton
1
Type
Barcode scanner
Customs tariff number
84719000
UNSPSC
43211711
eClass
27-28-01-01
eClass V7
27-28-01-01
Dimensions (Girth)
230 x 190 x 140 (890)
Type
Barcode scanner
DIN format
A1

With the DS2200 series, you can scan it all. You get an affordable 1D/2D imager that doesn't compromise performance or features for price. The DS2200 series - the affordability your budget demands, with the deployment, ease of use and management simplicity your business requires.

  • Easy to deploy
    Deployment couldn't be simpler. The DS2200 series is pre-configured and ready to use right out of the box. Just plug the DS2200 series into your POS and auto-host detect cables will automatically identify the interface and connect the imager for you.
  • Easy to use
    The DS2200 series is so easy to use, chances are your workers won't even need training.
  • Easy to manage
    Management is simple - no experienced IT personnel required. The long-lasting battery in the cordless DS2278 will likely never need to be replaced during the lifecycle of the scanner, eliminating the need to purchase and manage a battery pool.

General
Type
Barcode scanner - handheld
Colour
Black
Barcode
Interface Type
Bluetooth 4.0
Minimum Bar Width
4 mil
Scan Element Type
2D imager
Sensor Resolution
640 x 480
Light Source Wave Length
645 nm
Scan Mode
Single-pass
Scan Speed
762 mm / sec
Max Working Distance
36.8 cm
Skew (Degrees)
65
Pitch (Degrees)
65
Print Contrast Signal (PCS)
25%
Decode Capability
Code 93, Industrial 2 of 5, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, Italy Pharmacode, Codabar, Code 128, Code 11, UPC, PDF417, MSI-Plessey, Data Matrix, TLC39, Micro QR code, China Han Xin Code, Korean 2 of 5
TTL Decoding
Decoded
Connectivity Technology
Wireless
OK Notification
Beeper, LED indicator
Networking
Wireless Connectivity
Bluetooth 4.0 LE
Miscellaneous
Included Accessories
Cradle
Cables Included
1 x USB cable - external
Compliant Standards
EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class B, RoHS, UL 60950-1, IEC 60950-1, CAN/CSA C22.2 No. 60950, EN 50581, IEC 62471, FCC CFR47 Part 15 B Class B, EN 55032 Class B, ICES-003 issue 6 Class B, EN60950-1 (2nd Edition) + A11 + A1 + A12 + A2:2013, EN60950-1 (2nd Edition) + A1 + A2
Power
Battery
Lithium Ion
Dimensions & Weight
Width
6.6 cm
Depth
9.9 cm
Height
17.5 cm
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Drop Specification
1.5 m to concrete
