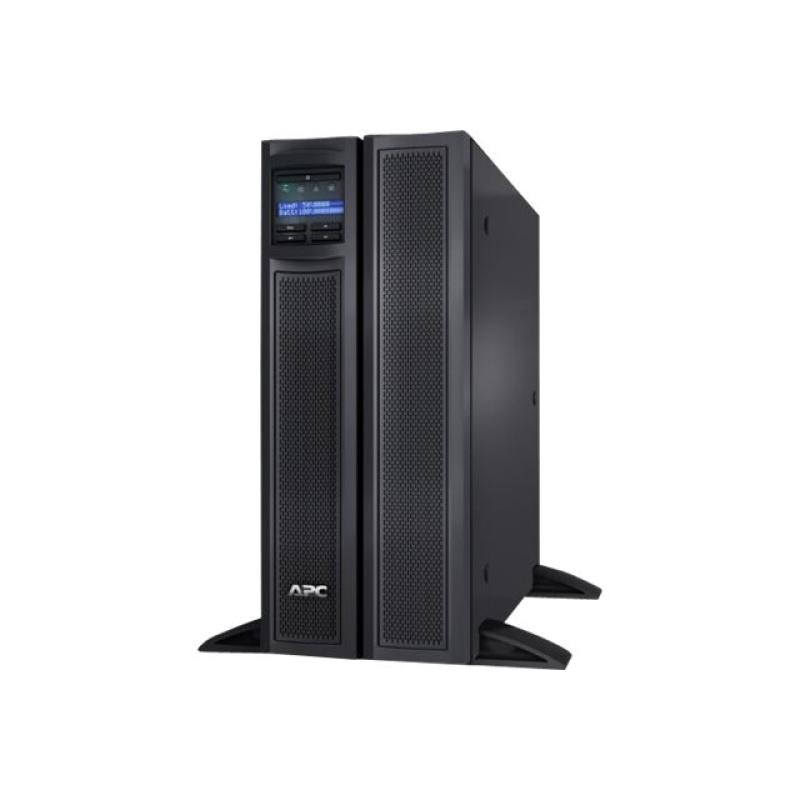

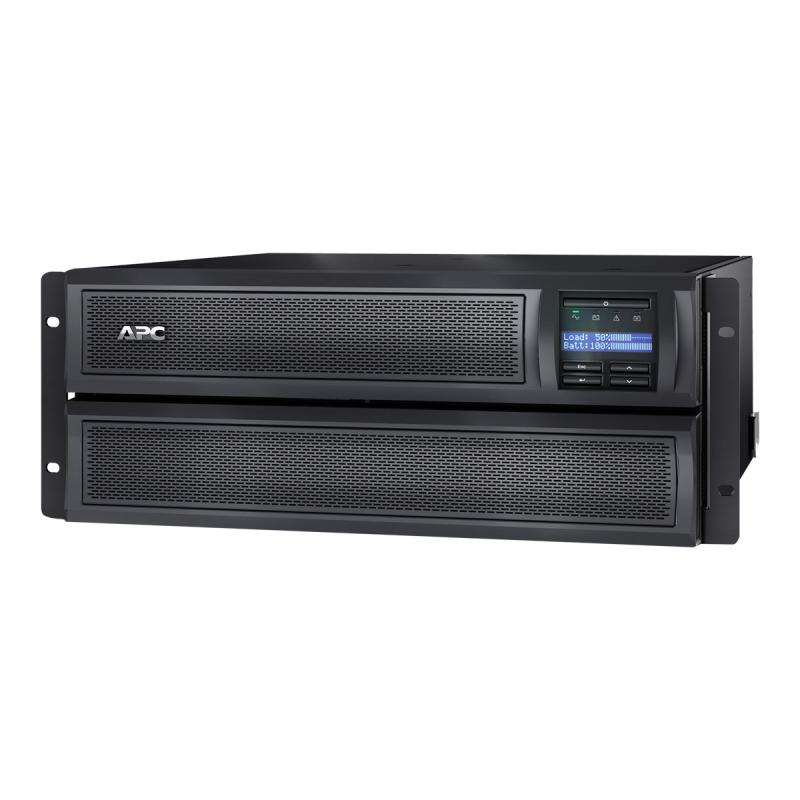

APC Smart-UPS SmartUPS (SMX3000HV)

Find suitable products

APC Smart-UPS X 3000 Rack/Tower LCD - UPS (rack-mountable / external) - AC 230 V - 2700 Watt - 3000 VA - RS-232, USB - output connectors: 10 - 4U - black - for P/N: AR4018SPX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, NBWL0356A

View data sheet
Add to comparison list

Category (Unterbrechungsfreie Stromversorgung): PC Components
Power Supply
OEM: SMX3000HV
EAN: 0731304292616
SKU: 170367 (170367)
Manufacturer: APC
Master carton: 0.0000
Type: (Offline) UPS
Model: Smart-UPS X 3000 Rack/Tower LCD
Color: Black
Customs tariff number: 85044030
UNSPSC: 39121011
eClass: 19-03-04-01
eClass V7: 27-04-06-01
Dimensions (Girth): 640 x 590 x 320 (2460)
Type: (Offline) UPS
Electrical input: 2,700 W - 4,500 W
Mark: CE
Universal interfaces: USB
Backup time: 3 min - 25 min

Description
Features
Specifications
Product safety

APC award-winning Smart-UPS is the most popular UPS in the world for servers, storage and network power protection. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery.

Intelligent battery management
It maximizes battery performance, life, and reliability through intelligent, precision charging.
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Network manageable
It provides remote power management of the UPS over the network.
Audible alarms
Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
LED status indicators
Quickly understand unit and power status with visual indicators.
Disconnected battery notification
Warns when a battery is not available to provide backup power.
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).
Hot-swappable batteries
It ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
Adjustable voltage-transfer points
It maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable voltage sensitivity
It provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Safety-agency approved
It ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

General

Device Type

UPS - rack-mountable / external

Height (Rack Units)

Colour

Black

Power Device

UPS Technology

Line interactive

Input Voltage

AC 230 V

Input Voltage Range

AC 140 - 280 V

Frequency Provided

47 - 63 Hz

Frequency Required

47 - 63 Hz

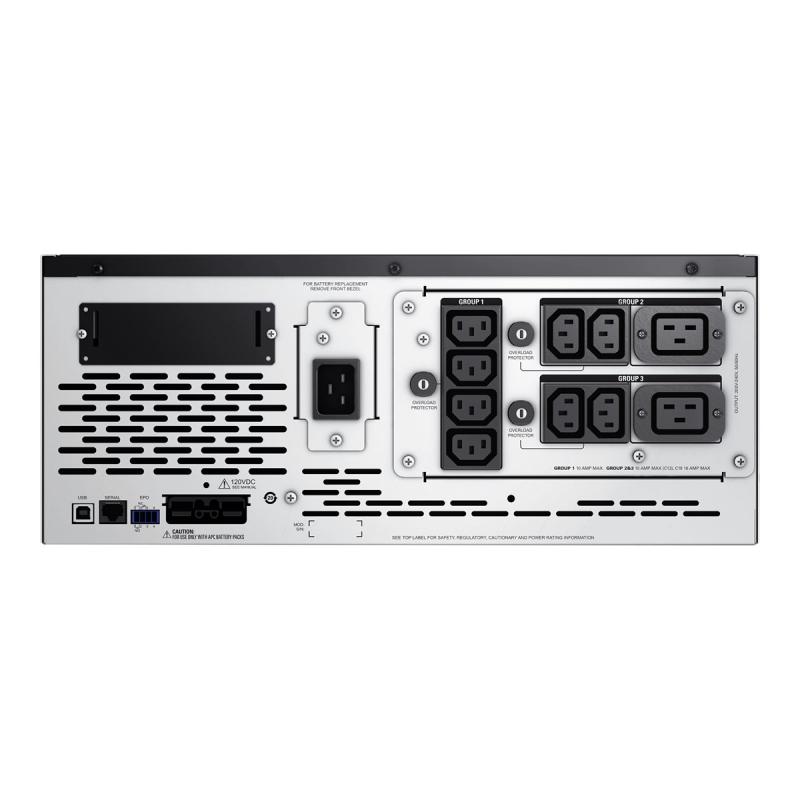

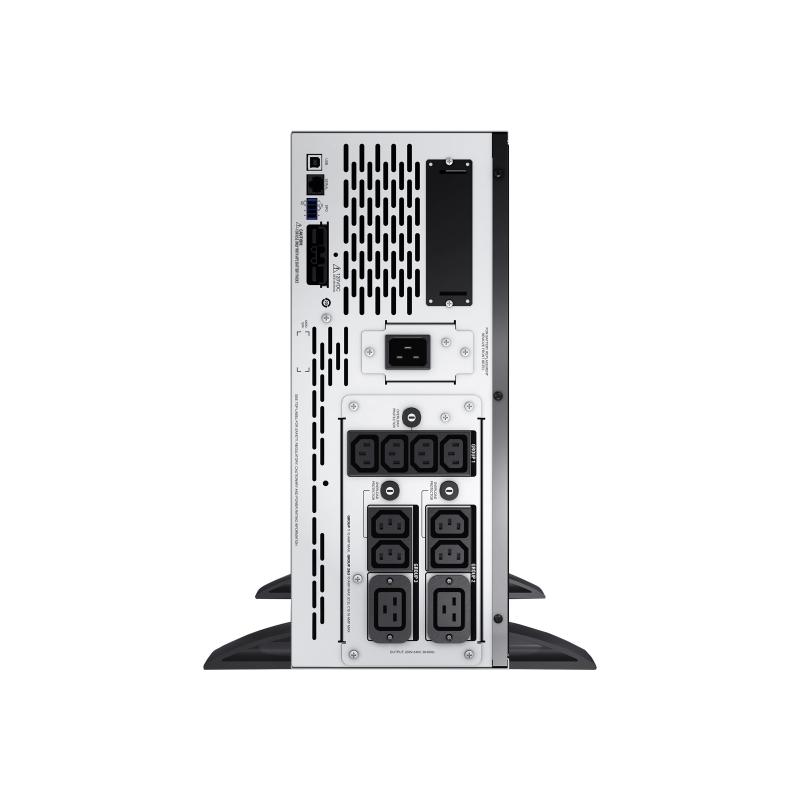

Input Connectors

1 x power IEC 60320 C20

Power Output Connectors Details

8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19

Output Voltage

AC 230 V 47 - 63 Hz

Power Capacity

2700 Watt / 3000 VA

Output Waveform

Sinewave

Surge Suppression

Yes

Surge Energy Rating

645 Joules

Circuit Protection

Circuit breaker

Efficiency

98.5%

Battery

Quantity

Technology

Lead Acid

Run Time (Up To)

6.3 min at full load ¦ 15.7 min at half load

Recharge Time

3 hours

Networking

Remote Management Interface

RS-232, USB

Expansion / Connectivity

Interfaces

1 x USB ¦ 1 x RS-232 ¦ 1 x EPO (emergency power off)

Expansion Slots

1 (total) / 1 (free) x SmartSlot

Miscellaneous

Cables Included

Serial cable ¦ USB cable ¦ Power cable 1.83 m

Rack Mounting Kit

Included

Features

Audible alarm, LCD display, overload protection

Compliant Standards

CSA, C-Tick, GOST, UL 1449, UL 1778, VDE, IEC 60950, EN 50091-2, IRAM, RoHS, EN 50091-1, FCC Part 15 A, REACH

Software / System Requirements

Software Included

Drivers & Utilities

Manufacturer Warranty

Service & Support

Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

0 - 95%

Sound Emission

55 dBA

Dimensions & Weight

Width

17.8 cm

Depth

48.3 cm

Height

43.2 cm

Weight

38.64 kg

Dimensions & Weight (Shipping)

Shipping Width

58.6 cm

Shipping Depth

63.3 cm

Shipping Height

33 cm

Shipping Weight

47.73 kg

Compatibility Information

Designed For

P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC2513, ACF001, ACF002, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR202, AR203A, AR204A, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3810, AR3812, AR3814, AR4000MV, AR4000MVX429, AR4000MVX432, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X431, AR4038X432, AR7007, AR7050, AR7057, AR8135BLK, NBWL0356A
