Lenovo ThinkPad USB-C Dock Gen 2 - Docking station - USB-C - HDMI, 2 x DP - GigE - 90 Watt - Europe - for ThinkPad P15s Gen 2; X13 Gen 2; X13 Yoga Gen 2; Yoga 6 13; Yoga Slim 7 Pro 14

Qty:

Category (Zubehör Notebook)
PC Systems
Notebook Accessories
OEM
40AS0090EU
EAN
0193124916453
SKU
lenac000066 (109241)
Manufacturer
Lenovo
Type
Charging / Docking station
Line
Lenovo ThinkPad
Color
Black
Customs tariff number
84718000
UNSPSC
43211602
eClass
19-01-92-01
eClass V7
19-01-92-01
Dimensions (Girth)
210 x 155 x 75 (670)
Type
Charging / Docking station

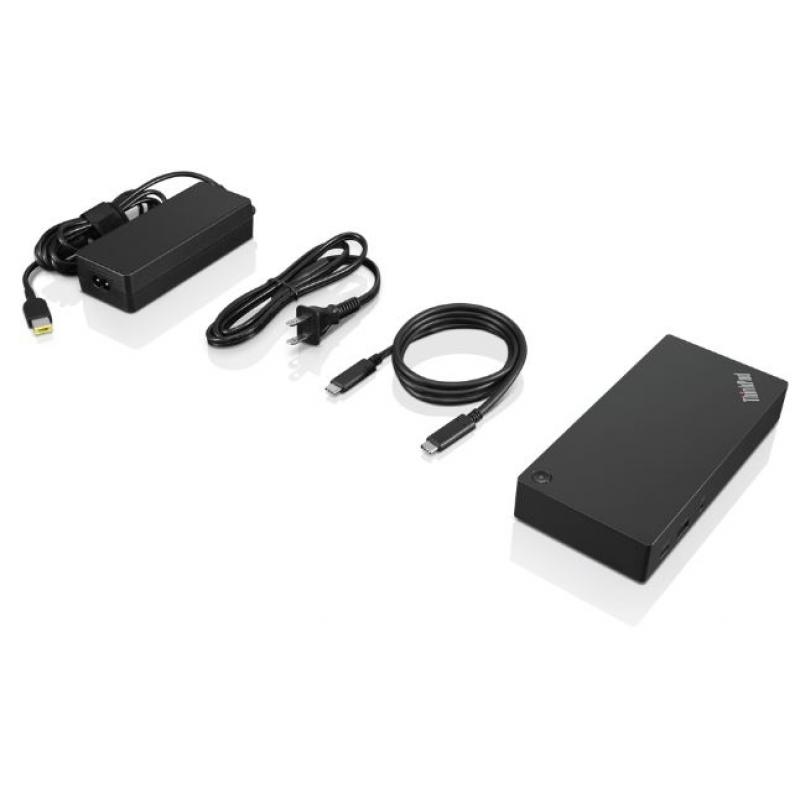

ThinkPad USB-C Dock Gen 2 (40AS), next generation of USB-C one-cable universal docking solutions. Supports vivid 4K displays or multiple 1080p screens, charge your notebook, connect legacy USB peripherals, wired networks and rapidly charge your mobile devices.

General
Product Type
Docking station
Width
17.1 cm
Depth
8 cm
Height
3.075 cm
Weight
325 g
Enclosure Colour
Black
Localisation
Europe
Video
Max Resolution Details
3840 x 2160 - 60 Hz (DisplayPort 1.4 only) ¦ 3840 x 2160 - 60 Hz (HDMI only) ¦ 3840 x 2160 - 30 Hz (DisplayPort1 1.4 and DisplayPort2 1.4 simultaneously) ¦ 3840 x 2160 - 30 Hz (DisplayPort 1.4 and HDMI simultaneously) ¦ 2560 x 1600 - 60 Hz (DisplayPort1 1.4 and DisplayPort2 1.4 simultaneously) ¦ 2560 x 1600 - 60 Hz (DisplayPort 1.4 and HDMI simultaneously) ¦ 1920 x 1080 - 60 Hz (DisplayPort1 1.4 and DisplayPort2 1.4 and HDMI simultaneously) ¦ 3840 x 2160 - 30 Hz (DisplayPort 1.2 only) ¦ 1920 x 1080 - 60 Hz (DisplayPort1 1.2 and DisplayPort2 1.2 simultaneously) ¦ 1920 x 1080 - 60 Hz (DisplayPort 1.2 and HDMI simultaneously) ¦ 1024 x 768 - 60 Hz (DisplayPort1 1.2 and DisplayPort2 1.2 and HDMI simultaneously)
Networking
Data Link Protocol
Gigabit Ethernet
Expansion / Connectivity
Interfaces
3 x USB 3.1 ¦ 2 x USB 2.0 - 4 pin USB Type A ¦ 1 x audio - headphones/microphone - mini-phone stereo 3.5 mm ¦ 1 x USB-C ¦ 1 x display / video - HDMI - 19 pin HDMI Type A ¦ 2 x audio / video - DisplayPort - 20 pin DisplayPort ¦ 1 x network - RJ-45
Miscellaneous

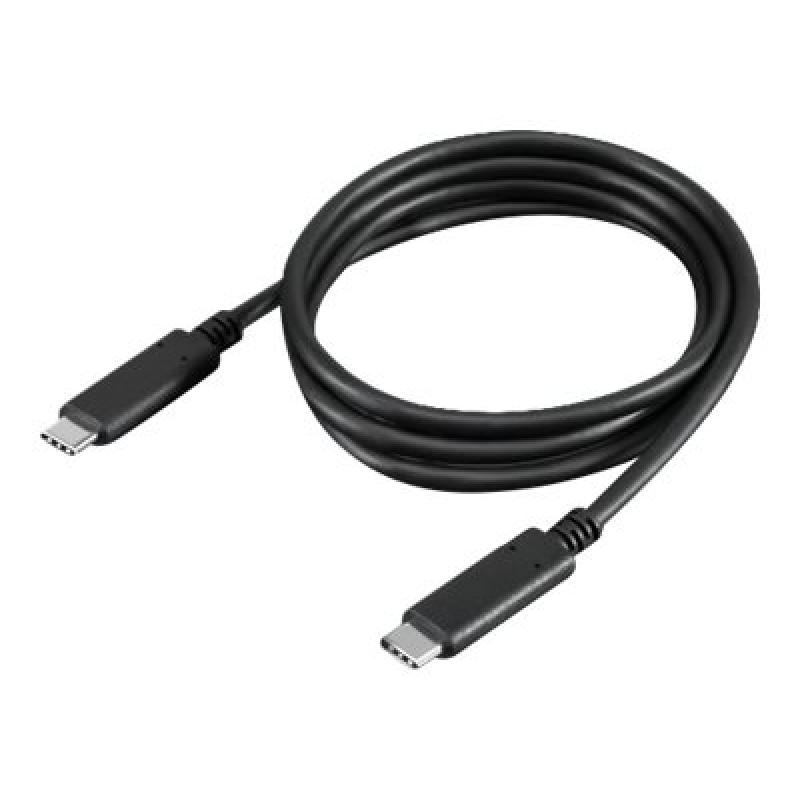

Cables Included
1 x USB-C cable
Features
Security lock slot (cable lock sold separately), wake on LAN
Security Slot Type
Kensington security slot
Compliant Standards
TUV, VCCI, BSMI, NOM, CB, FCC, SII, KCC, ICES, cULus, Kvalitet, EAC, RCM, Ukraine EMC DoC, LoA
Power
Power Device
Power adapter
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
90 Watt
System Requirements
OS Required
Microsoft Windows 7 / 8 / 8.1 / 10
Manufacturer Warranty
Service & Support
- 3 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
35 °C
Compatibility Information
Designed For
Lenovo IdeaPad 5 15ITL05 82FG ¦ Lenovo IdeaPad 5 Pro 14ITL6 82L3 ¦ Lenovo IdeaPad Slim 7 14ARE05 82A5 ¦ Lenovo IdeaPad Slim 9 14ITL5 82D2 ¦ Lenovo ThinkBook 13s G2 ITL 20V9 ¦ Lenovo ThinkBook 14s G2 ITL 20VA ¦ Lenovo ThinkBook 15 G2 ITL 20VE ¦ Lenovo ThinkPad C13 Yoga Gen 1 Chromebook 20UX, 20UY ¦ Lenovo ThinkPad E14 Gen 2 20T6, 20T7, 20TA, 20TB ¦ Lenovo ThinkPad E15 Gen 2 20T8, 20T9, 20TE ¦ Lenovo ThinkPad L14 Gen 1 20U1, 20U2, 20U5, 20U6 ¦ Lenovo ThinkPad L14 Gen 2 20X1, 20X2 ¦ Lenovo ThinkPad L15 Gen 1 20U3, 20U4, 20U7, 20U8 ¦ Lenovo ThinkPad L15 Gen 2 20X3, 20X4 ¦ Lenovo ThinkPad P1 (3rd Gen) 20TH, 20TJ ¦ Lenovo ThinkPad P14s Gen 1 20S5, 20Y1, 20Y2 ¦ Lenovo ThinkPad P15 Gen 1 20ST, 20SU ¦ Lenovo ThinkPad P15s Gen 1 20T5 ¦ Lenovo ThinkPad P15s Gen 2 20W7 ¦ Lenovo ThinkPad P15v Gen 1 20TQ, 20TR ¦ Lenovo ThinkPad P17 Gen 1 20SN, 20SQ ¦ Lenovo ThinkPad T14 Gen 1 20S1, 20S3, 20UD, 20UE ¦ Lenovo ThinkPad T14s Gen 1 20T0, 20T1, 20UH, 20UJ ¦ Lenovo ThinkPad T14s Gen 2 20WM, 20WN ¦ Lenovo ThinkPad T15 Gen 1 20S7 ¦ Lenovo ThinkPad T15g Gen 1 20UR, 20US ¦ Lenovo ThinkPad T15p Gen 1 20TM, 20TN ¦ Lenovo ThinkPad X1 Carbon Gen 8 20U9, 20UA ¦ Lenovo ThinkPad X1 Carbon Gen 9 20XW, 20XX ¦ Lenovo ThinkPad X1 Nano Gen 1 20UN, 20UQ ¦ Lenovo ThinkPad X1 Titanium Yoga Gen 1 20QA, 20QB ¦ Lenovo ThinkPad X1 Yoga Gen 5 20UB, 20UC ¦ Lenovo ThinkPad X1 Yoga Gen 6 20XY, 20Y0 ¦ Lenovo ThinkPad X12 Detachable 20UV ¦ Lenovo ThinkPad X13 Gen 1 20T2, 20T3, 20UF, 20UG ¦ Lenovo ThinkPad X13 Gen 2 20WK, 20WL ¦ Lenovo ThinkPad X13 Yoga Gen 1 20SX, 20SY ¦ Lenovo ThinkPad X13 Yoga Gen 2 20W8, 20W9 ¦ Lenovo Yoga 6 13ALC6 82ND ¦ Lenovo Yoga Duet 7 13IML05 82AS ¦ Lenovo Yoga Duet 7 13ITL6 82MA ¦ Lenovo Yoga Slim 7 13ACN5 82CY ¦ Lenovo Yoga Slim 7 13ITL5 82CU ¦ Lenovo Yoga Slim 7 Carbon 13ITL5 82EV ¦ Lenovo Yoga Slim 7 Pro 14ARH5 82LA ¦ Lenovo Yoga Slim 7 Pro 14IHU5 82NC ¦ Lenovo Yoga Slim 7 Pro 14ITL5 82FX ¦ Lenovo Yoga Slim 9 14ITU05 82D1
